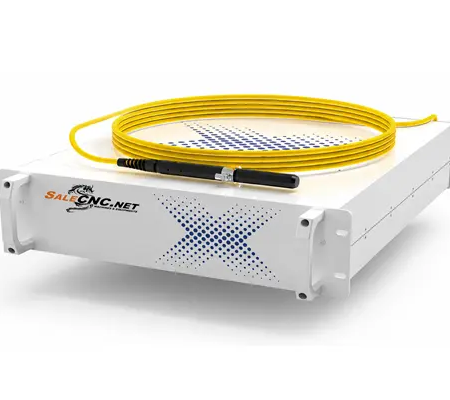

Fiber Laser Powermax Power Only 3000W
Power Supply for Laser Marking Machines
(CNC Marking Engraving – Fiber Laser)
- Compact housing (Small Case)
- Q-Switch technology based power supply
- Flexible metallic-sheathed fiber optic cable
- Adjustable pulse duration, repetition rate, and peak power
- High-quality fiber laser output
- Extended operational lifespan
- DB-25 Interface
Q-Switch Pulsed Power Fiber Laser
Electrical Power Connection
AC-L —> +24VDC
AC-G —> Chassis Ground
AC-N —> Neutral
Specifications:
| SPECIFICATION | |
|---|---|
| Mode | Pulsed |
| Polarization | Random |
| Center Wavelength | 1064 nm |
| Spectrum Width (3dB) | 5 nm |
| Power Output | 1000W/1500W/3000W/6000W |
| Power Adjustment Range | 10% – 100% |
| Optical Pulse Width (FWHM) | 100 ns |
| Output Power Stability | ±5% |
| Beam Diameter | 7.5 mm |
| Beam Ellipticity | ≥ 90% |
| Delivery Cable Length | 2.5 M |
| Laser Startup Time | 110 – 140 µs |
| Laser Shutdown Time | 110 – 150 µs |
