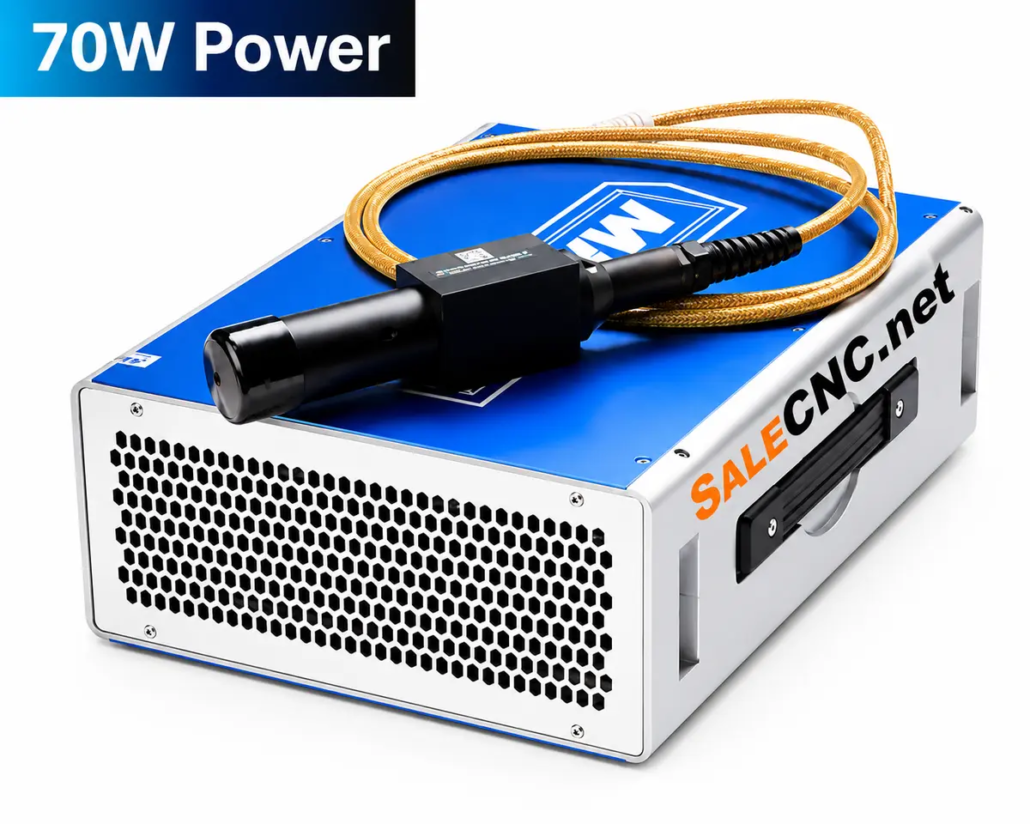

Fiber Laser Powermax Power Only 70W
Power Supply for Laser Marking Machines
(CNC Marking Engraving – Fiber Laser)
- Compact Case Design
- Q-Switch Technology Power Only Unit
- Flexible Metal-Sheathed Fiber Cable
- Configurable Pulse Duration, Repetition Rate, and Peak Power
- High-Quality Fiber Output
- Extended Operational Lifespan
- DB-25 Interface
Q-Switch Pulsed Power Fiber Laser
Electrical Power Connection
AC-L —> +24V
AC-G —> Shell
AC-N —> GND
Machine Specifications:
| SPECIFICATION | |
|---|---|
| Mode | Pulse |
| Polarization | Random |
| Center Wavelength | 1064 nm |
| Spectrum Width (3dB) | 5 nm |
| Power | 5W/10W/20W/30W/50W/70W/100W |
| Power Adjustment Range | 10 – 100% |
| Optical Pulse Width (FWHM) | 100 ns |
| Output Power Stability | 5% |
| Beam Diameter | 7.5 mm |
| Beam Ellipticity | 90% |
| Delivery Cable Length | 2.5 M |
| Laser Startup Time | 110 – 140 µs |
| Laser Shutdown Time | 110 – 150 µs |
