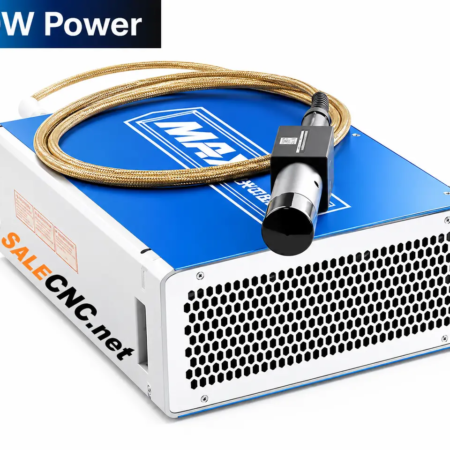

Fiber Laser Power Supply FSC1500
- The FSC series represents high-power continuous wave fiber lasers, developed and manufactured by Beijing Reci Laser Technology Co., Ltd. Featuring an average power exceeding 4,000 W with a single resonant cavity and single-mode operation, it effectively overcomes challenges related to transverse mode, thermal lensing (TMI), stimulated Raman scattering (SRS), and suboptimal beam quality.
- This product line is widely applicable in precision cutting, welding, surface treatment, 3D printing, and rapid prototyping. Its high average power, robust anti-reflection capabilities, and high light quality/efficiency make it particularly advantageous for processing thick metal sheets due to superior cutting kerf and brightness compared to similar lasers on the market.
Direct from factory 14 days receive goods.
Machine Specifications:
| Specification | Details |
|---|---|
| Output Power (W) | 1500 |
| Center Wavelength (nm) | 1080±3 |
| Operation Mode | CW/Modulate |
| Max Modulation Frequency (kHz) | 50 |
| Output Power Stability (%) | <3 |
| Red Laser | Yes |
| Fiber Output Connector | QBH |
| Output Fiber Diameter (µm) | 50 |
| BPP (mm*mrad) | <1.1 |
| Cable Transmission Length (m) | 15 (Customizable) |
| Input Voltage (VAC) | 220 |
| Power Consumption (W) | 6000 |
| Control Mode | Ext. RS 232/Ext. AD/Hyper Terminal |
| Power Range (%) | 10 ~ 100 |
| Ambient Temperature (°C) | 5 ~ 40 |
| Ambient Humidity (%) | <70 |
| QBH Coolant Temperature (°C) | Room Temperature |
| QBH Coolant Flow (L/min) | 1.5 ~ 2.5 |
| Coolant Temperature (°C) | 25 |
| Water Cooling Flow (L/min) | >15 |
| Dimensions WxHxD (mm) | 483 x 117 x 740 |
| Weight (kg) | <65 |
Company Profile:
Manufacturer: Beijing Reci Laser Technology Co., Ltd.
