Description

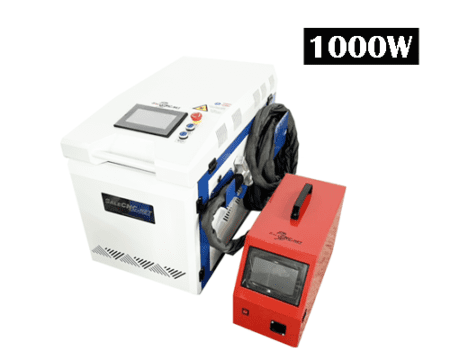

Laser Cleaning Machine 1000W 4-in-1 (Welding Head + Laser Head)

The laser rust removal machine utilizes laser technology to clean metal surfaces, removing rust and other contaminants without chemical agents or manual abrasion. High-energy laser beams are directed at the target surface, causing rust and debris to disintegrate and be expelled by airflow.

The 4-in-1 laser system includes a wire feeder and is capable of rust removal, weld cleaning, welding, and cutting. It offers high operational speed, improved efficiency, and superior results with extended continuous use. The system features low consumables for welding, a long lifespan, and a standard wire feeder that reduces part gaps and enhances weld quality. It can also be integrated with robotic systems.

• Cleaning: Removes rust and cleans all surfaces.
• Welding: Performs various welding tasks, including continuous and spot welding.
• Cleaning Welding: Cleans rust from welds and all surfaces.
• Cutting: Cuts steel up to 4 mm thickness.

Machine Components

• Dimensions: 710x420x1025 mm
• Wire Feeder Unit
• Chiller: For machine cooling.
• Touchscreen Display
• Control Buttons
• Air Inlet: For lens cooling system.
• Cooling Fans: For machine cooling.
• Connections: For welding equipment and wire feeder.
• Laser Gun

Laser Gun Components

• Nozzle
• Safety Switch
• Air Hose
• Water Hose
• Gas Hose

Nozzle Head Types

• A Copper Beak
• B Copper Beak
• C Copper Beak
• AS-12 Copper Beak, Wire feed 0.8/1.0/1.2 mm
• BS-16 Copper Beak, Wire feed 1.6 mm
• CS-12 Copper Beak, Wire feed 0.8/1.0/1.2 mm
• DS-12 Copper Beak, Wire feed 0.8/1.0/1.2 mm
• ES-12 Copper Beak, Wire feed 0.8/1.0/1.2 mm
• FS-16 Copper Beak, Wire feed 1.6 mm

Specifications

—> Fiber Laser 4-in-1 – 1,000W <—

• Power: 1,000W
• Laser Wavelength: 1080±10 nm
• Mode of Operation: Continuous/Pulsed
• Power Range: 10-100%
• Fiber Diameter: 25-50 µm
• Sighting: Visible Glow
• Fiber Length: 10 m
• Welding Speed: 0-120 mm/s
• Applicable Thickness: <3.5 mm (Material Dependent)
• Wire Feeder Speed: 38-600 mm/min
• Wire Feed Diameter: 0.8/1.0/1.2/1.6/2.0 mm
• Cooling Mode: Chiller Water Cooling
• Working Environment: 10-40°C, 10-85% Humidity (Non-condensing)
• Rated Output Power: 3.5 kW
• Operating Voltage: 220±20 V, AC, PE, 50-60 Hz
• Size: 710x420x1025 mm
• Weight: 180 kg

—> Fiber Laser 4-in-1 – 1,500W <—

• Power: 1,500W
• Laser Wavelength: 1080±10 nm
• Mode of Operation: Continuous/Pulsed
• Power Range: 10-100%
• Fiber Diameter: 25-50 µm
• Sighting: Visible Glow
• Fiber Length: 10 m
• Welding Speed: 0-120 mm/s
• Applicable Thickness: <3.5 mm (Material Dependent)
• Wire Feeder Speed: 38-600 mm/min
• Wire Feed Diameter: 0.8/1.0/1.2/1.6/2.0 mm
• Cooling Mode: Chiller Water Cooling
• Working Environment: 10-40°C, 10-85% Humidity (Non-condensing)
• Rated Output Power: 4.5 kW
• Operating Voltage: 220±20 V, AC, PE, 50-60 Hz
• Size: 710x420x1025 mm
• Weight: 180 kg

—> Fiber Laser 4-in-1 – 2,000W <—

• Power: 2,000W
• Laser Wavelength: 1080±10 nm
• Mode of Operation: Continuous/Pulsed
• Power Range: 10-100%
• Fiber Diameter: 25-50 µm
• Sighting: Visible Glow
• Fiber Length: 10 m
• Welding Speed: 0-120 mm/s
• Applicable Thickness: <3.5 mm (Material Dependent)
• Wire Feeder Speed: 38-600 mm/min
• Wire Feed Diameter: 0.8/1.0/1.2/1.6/2.0 mm
• Cooling Mode: Chiller Water Cooling
• Working Environment: 10-40°C, 10-85% Humidity (Non-condensing)
• Rated Output Power: 6 kW
• Operating Voltage: 220±20 V, AC, PE, 50-60 Hz
• Size: 1060x505x1120 mm
• Weight: 250 kg

—> Fiber Laser 4-in-1 – 3,000W <—

• Power: 3,000W
• Laser Wavelength: 1080±10 nm
• Mode of Operation: Continuous/Pulsed
• Power Range: 10-100%
• Fiber Diameter: 25-50 µm
• Sighting: Visible Glow
• Fiber Length: 10 m
• Welding Speed: 0-120 mm/s
• Applicable Thickness: <3.5 mm (Material Dependent)
• Wire Feeder Speed: 38-600 mm/min
• Wire Feed Diameter: 0.8/1.0/1.2/1.6/2.0 mm
• Cooling Mode: Chiller Water Cooling
• Working Environment: 10-40°C, 10-85% Humidity (Non-condensing)
• Rated Output Power: 8 kW
• Operating Voltage: 220±20 V, AC, PE, 50-60 Hz
• Size: 1060x505x1120 mm
• Weight: 250 kg

The laser system rapidly and effectively removes rust. It is a precise, safe, and user-friendly technology suitable for removing rust from various material surfaces.

• Precision: The laser precisely targets and removes rust from specific areas.
• Safety: The laser process is environmentally friendly and generates no noise pollution.
• Ease of Use: The rust removal machine is intuitive to operate, with easily adjustable power and resolution settings.
