Description

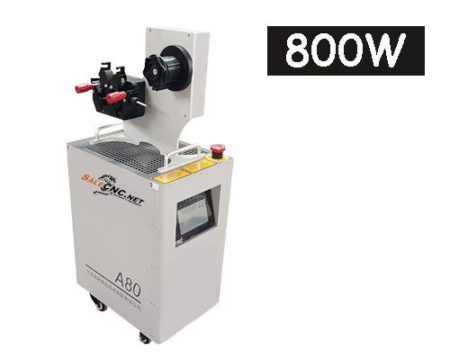

Laser Cleaning Machine 800W 4-in-1

https://youtube.com/shorts/1s1BG7lAeFQ?si=i9JuWYuUHSQ7VoK6

The 4-in-1 Laser Machine is equipped with a wire feeder and capable of rust removal, welding, and cutting. It offers high operational speed, efficiency, and superior results. Continuous long-term operation is supported with minimal consumables and extended lifespan. The standard wire feeder minimizes part gaps and enhances weld quality. This system can also be integrated with robotics for automated applications.

Functions:

• Cleaning: Removes rust and cleans all surfaces.
• Welding: Performs various welding types, including continuous and spot welding.
• Cutting: Cuts steel up to a maximum thickness of 4 millimeters.
• Weld Seam Cleaning: Cleans weld seams.

Machine Components:

• Dimensions: 710x420x1025 mm
• Wire Feeder Unit
• Chiller for cooling system
• Touchscreen Display
• Control Buttons
• Air Inlet for lens cooling system
• Cooling Fan
• Connections for welding accessories and wire feeder
• Laser Gun

Laser Gun Components:

• Nozzle
• Safety Switch
• Air Hose
• Water Hose
• Gas Hose

Nozzle Types:

• A Copper Beak, No silk delivery
• B Copper Beak, No silk delivery
• C Copper Beak, No silk delivery
• AS-12 Copper Beak, Wire feed 0.8/1.0/1.2 mm
• BS-16 Copper Beak, Wire feed 1.6 mm
• CS-12 Copper Beak, Wire feed 0.8/1.0/1.2 mm
• DS-12 Copper Beak, Wire feed 0.8/1.0/1.2 mm
• ES-12 Copper Beak, Wire feed 0.8/1.0/1.2 mm
• FS-16 Copper Beak, Wire feed 1.6 mm

Specifications:

Fiber Laser 4 in 1 – 1,000W

• Power: 1,000W
• Laser Wavelength: 1080±10 nm
• Operation Model: Connect/Disable
• Power Range: 10-100%
• Fiber Diameter: 25-50
• Sighting Position: Glow
• Fiber Length: 10 m
• Welding Speed: 0-120 mm/s
• Applicable Thickness: <3.5 mm (material dependent)
• Wire Feeder Speed: 38-600 mm/min
• Wire Feed Diameter: 0.8/1.0/1.2/1.6/2.0 mm
• Cooling Mode: Chiller water cooling
• Working Environment: 10-40°C, 10-85% humidity (non-condensing)
• Rated Output: 3.5 kW
• Operating Voltage: 220±20 V, AC, PE, 50-60 Hz
• Size: 710x420x1025 mm
• Weight: 180 kg

Fiber Laser 4 in 1 – 1,500W

• Power: 1,500W
• Laser Wavelength: 1080±10 nm
• Operation Model: Connect/Disable
• Power Range: 10-100%
• Fiber Diameter: 25-50
• Sighting Position: Glow
• Fiber Length: 10 m
• Welding Speed: 0-120 mm/s
• Applicable Thickness: <3.5 mm (material dependent)
• Wire Feeder Speed: 38-600 mm/min
• Wire Feed Diameter: 0.8/1.0/1.2/1.6/2.0 mm
• Cooling Mode: Chiller water cooling
• Working Environment: 10-40°C, 10-85% humidity (non-condensing)
• Rated Output: 4.5 kW
• Operating Voltage: 220±20 V, AC, PE, 50-60 Hz
• Size: 710x420x1025 mm
• Weight: 180 kg

Fiber Laser 4 in 1 – 2,000W

• Power: 2,000W
• Laser Wavelength: 1080±10 nm
• Operation Model: Connect/Disable
• Power Range: 10-100%
• Fiber Diameter: 25-50
• Sighting Position: Glow
• Fiber Length: 10 m
• Welding Speed: 0-120 mm/s
• Applicable Thickness: <3.5 mm (material dependent)
• Wire Feeder Speed: 38-600 mm/min
• Wire Feed Diameter: 0.8/1.0/1.2/1.6/2.0 mm
• Cooling Mode: Chiller water cooling
• Working Environment: 10-40°C, 10-85% humidity (non-condensing)
• Rated Output: 6 kW
• Operating Voltage: 220±20 V, AC, PE, 50-60 Hz
• Size: 710x420x1025 mm
• Weight: 180 kg

Fiber Laser 4 in 1 – 3,000W

• Power: 3,000W
• Laser Wavelength: 1080±10 nm
• Operation Model: Connect/Disable
• Power Range: 10-100%
• Fiber Diameter: 25-50
• Sighting Position: Glow
• Fiber Length: 10 m
• Welding Speed: 0-120 mm/s
• Applicable Thickness: <3.5 mm (material dependent)
• Wire Feeder Speed: 38-600 mm/min
• Wire Feed Diameter: 0.8/1.0/1.2/1.6/2.0 mm
• Cooling Mode: Chiller water cooling
• Working Environment: 10-40°C, 10-85% humidity (non-condensing)
• Rated Output: 8 kW
• Operating Voltage: 220±20 V, AC, PE, 50-60 Hz
• Size: 1060x505x1120 mm
• Weight: 250 kg
