Description

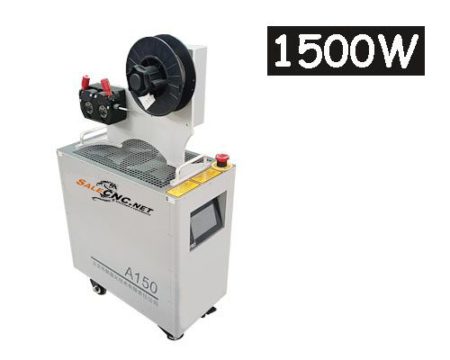

LC-1500W 4-in-1 Laser Cleaning Machine

https://youtube.com/shorts/1s1BG7lAeFQ?si=i9JuWYuUHSQ7VoK6

@salecnc #laser #cladding #lasercladding #lasercladdingmachine ♬ original sound – Jimmy SaleCNC.net

The 4-in-1 Laser Machine integrates a wire feeder for comprehensive material processing. It is engineered for rapid operation, high efficiency, and superior results in rust removal, welding, and cutting applications. Designed for continuous long-term use with minimal consumable wear, this system offers extended operational lifespan. The standardized wire feeder reduces component gaps and enhances weld quality. Furthermore, it is compatible with robotic integration for automated applications.

• Cleaning: Removes rust and cleans all surfaces.
• Welding: Capable of various welding types, including continuous and spot welding.
• Cutting: Cuts steel up to 4mm in thickness.
• Weld Seam Cleaning: Cleans welded seams.

Machine Components:

• Machine Dimensions: 710x420x1025 mm
• Wire Feeder Unit
• Chiller: For system coolant circulation
• Touchscreen Display
• Control Buttons
• Air Inlet: For lens cooling system
• Cooling Fan: For machine heat dissipation
• Accessory Ports: For welding equipment and wire feeder
• Laser Torch

Laser Torch Components:

• Nozzle
• Safety Switch
• Air Hose
• Water Hose
• Gas Hose

Nozzle Types:

• A Copper Beak, No silk delivery
• B Copper Beak, No silk delivery
• C Copper Beak, No silk delivery
• AS-12 Copper Beak, Wire feed 0.8/1.0/1.2 mm
• BS-16 Copper Beak, Wire feed 1.6 mm
• CS-12 Copper Beak, Wire feed 0.8/1.0/1.2 mm
• DS-12 Copper Beak, Wire feed 0.8/1.0/1.2 mm
• ES-12 Copper Beak, Wire feed 0.8/1.0/1.2 mm
• FS-16 Copper Beak, Wire feed 1.6 mm

Specifications:

Fiber Laser 4-in-1 – 1,000W

• Power: 1,000W
• Laser Wavelength: 1080±10 nm
• Mode of Operation: Connect/Disable
• Power Range: 10-100%
• Fiber Diameter: 25-50
• Sighting: Glow laser
• Fiber Length: 10 m
• Welding Speed: 0-120 mm/s
• Applicable Thickness: <3.5 mm (Material dependent)
• Wire Feeder Speed: 38-600 mm/min (Standard)
• Wire Feed Diameter: 0.8/1.0/1.2/1.6/2.0 mm
• Cooling Mode: Chiller water cooling
• Operating Environment: 10-40°C, 10-85% humidity (non-condensing)
• Rated Output: 3.5 kW
• Operating Voltage: 220±20 V, AC, PE, 50-60 Hz
• Size: 710x420x1025 mm
• Weight: 180 kg

Fiber Laser 4-in-1 – 1,500W

• Power: 1,500W
• Laser Wavelength: 1080±10 nm
• Mode of Operation: Connect/Disable
• Power Range: 10-100%
• Fiber Diameter: 25-50
• Sighting: Glow laser
• Fiber Length: 10 m
• Welding Speed: 0-120 mm/s
• Applicable Thickness: <3.5 mm (Material dependent)
• Wire Feeder Speed: 38-600 mm/min (Standard)
• Wire Feed Diameter: 0.8/1.0/1.2/1.6/2.0 mm
• Cooling Mode: Chiller water cooling
• Operating Environment: 10-40°C, 10-85% humidity (non-condensing)
• Rated Output: 4.5 kW
• Operating Voltage: 220±20 V, AC, PE, 50-60 Hz
• Size: 710x420x1025 mm
• Weight: 180 kg

Fiber Laser 4-in-1 – 2,000W

• Power: 2,000W
• Laser Wavelength: 1080±10 nm
• Mode of Operation: Connect/Disable
• Power Range: 10-100%
• Fiber Diameter: 25-50
• Sighting: Glow laser
• Fiber Length: 10 m
• Welding Speed: 0-120 mm/s
• Applicable Thickness: <3.5 mm (Material dependent)
• Wire Feeder Speed: 38-600 mm/min (Standard)
• Wire Feed Diameter: 0.8/1.0/1.2/1.6/2.0 mm
• Cooling Mode: Chiller water cooling
• Operating Environment: 10-40°C, 10-85% humidity (non-condensing)
• Rated Output: 6 kW
• Operating Voltage: 220±20 V, AC, PE, 50-60 Hz
• Size: 710x420x1025 mm
• Weight: 180 kg

Fiber Laser 4-in-1 – 3,000W

• Power: 3,000W
• Laser Wavelength: 1080±10 nm
• Mode of Operation: Connect/Disable
• Power Range: 10-100%
• Fiber Diameter: 25-50
• Sighting: Glow laser
• Fiber Length: 10 m
• Welding Speed: 0-120 mm/s
• Applicable Thickness: <3.5 mm (Material dependent)
• Wire Feeder Speed: 38-600 mm/min (Standard)
• Wire Feed Diameter: 0.8/1.0/1.2/1.6/2.0 mm
• Cooling Mode: Chiller water cooling
• Operating Environment: 10-40°C, 10-85% humidity (non-condensing)
• Rated Output: 8 kW
• Operating Voltage: 220±20 V, AC, PE, 50-60 Hz
• Size: 1060x505x1120 mm
• Weight: 250 kg
