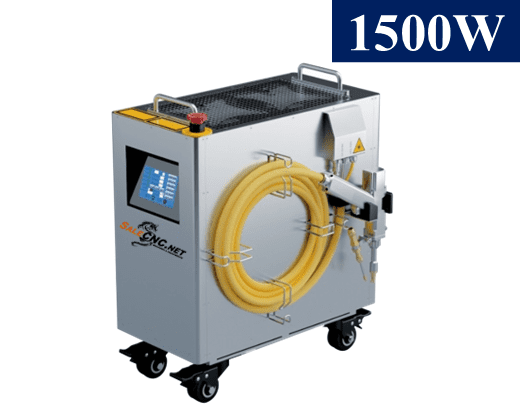

General air cooled laser welder 1500W
General air cooled laser welder 1500W :
|
Specifications |
A150 | |
|
Optical |
Limit Power | 1300W |
| Maximum Power | 1500W | |
| Operating Mode | Continuous & Spot Welding | |
| Polarization Direction | Random | |
| Output Power Adjustment Range | 10%-100% | |
| Central Wavelength | 1080+-3mm | |
| Power attenuation after 1
Hour of continuous operation |
<2% | |
| Maximum Modulation
Frequency |
5kHz | |
| Indicating Red Light Power | >0.2mW | |
| Output Fiber Coer Diameter | 20 um | |
| Output Armored Cable
Length |
Default 5m | |
|
Electrical |
Operating Voltage | AC220V, Single Phase, 50/60Hz |
| Maximum Power
Consumption (W) |
<4100W |
|
| Control Method | Touch Screen | |
|
Others |
Dimension (WxHxD) mm | 273×634.1×527.7 |
| Weight | 43 Kg. | |
| Operating Temperature | -30C-60C/-22F-104F | |
| Operating humidity | <90% | |
| Cooling | Air | |
| Storage Temperature | -10C-60C/-14F-140F | |
| Input Gas Pressure | 0.7MPa | |
|
Accessories |
Welding Gun | Default |
| Wire Feeder | Default | |
