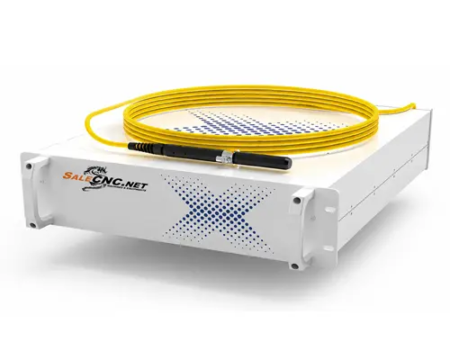

Fiber Laser Power Supply
รุ่น HLC3000
| Specification | HLC-3000-G3-H |
|---|---|
| Model | HLC-3000-G3-H |
| Output Power | 3000 W |
| Operating Mode | Continuous / Modulated |
| Polarization | Random |
| Beam Quality (BPP) | 1.2–1.8 mm·mrad (50 μm) |
| Output Fiber Core Diameter | 50 μm (100 μm Optional) |
| Center Wavelength | 1080 ±5 nm |
| Spectral Bandwidth (3 dB) | 5–7 nm |
| Power Adjustment Range | 10–100% |
| Short-Term Power Stability | ±1% |
| Long-Term Power Stability | ±2% |
| Modulation Frequency | 5 kHz |
| Red Guide Laser Power | 400 μW |
| Output Connector | QBH |
| Fiber Cable Length | 20 m (Customizable) |
| Minimum Fiber Bend Radius | 200 mm |
| Input Voltage | 3-Phase, 4-Wire, 400 V (±40 V), 50/60 Hz (with PE) |
| Power Consumption | 7.5 kW |
| Control Interface | EtherCAT |
| Cooling Method | Water Cooling |
| Machine Dimensions | 485 × 122 × 560 mm (Including Handle) |
| Machine Weight | 35 kg |

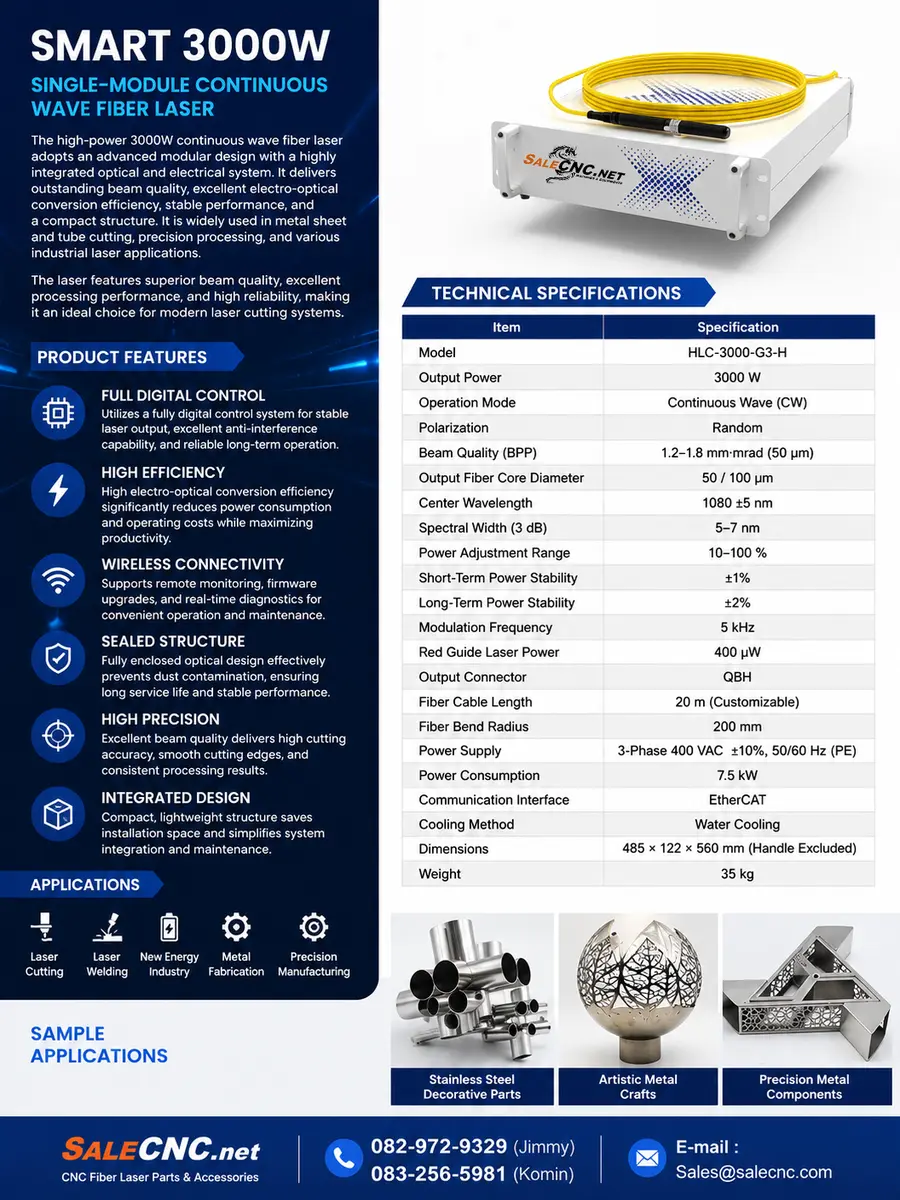

HLC-3000-G3-H Fiber Laser Source Specifications
- Output Power: 3000 W
- Operating Mode: Continuous / Modulated
- Polarization: Random
- Beam Quality (BPP): 1.2–1.8 mm·mrad (50 μm)
- Output Fiber Core: 50 μm (100 μm Optional)
- Center Wavelength: 1080 ±5 nm
- Spectral Bandwidth (3 dB): 5–7 nm
- Power Adjustment Range: 10–100%
- Short-Term Power Stability: ±1%
- Long-Term Power Stability: ±2%
- Modulation Frequency: 5 kHz
- Red Guide Laser: 400 μW
- Output Connector: QBH
- Fiber Cable Length: 20 m (Customizable)
- Minimum Fiber Bend Radius: 200 mm
- Input Voltage: 3-Phase, 400 V (±40 V), 50/60 Hz
- Power Consumption: 7.5 kW
- Control Interface: EtherCAT
- Cooling Method: Water Cooling
- Dimensions: 485 × 122 × 560 mm (Including Handle)
- Weight: 35 kg
Company Profile :
บริษัทผู้ผลิต : Beijing Reci Laser technology co., Ltd.
