คำอธิบาย

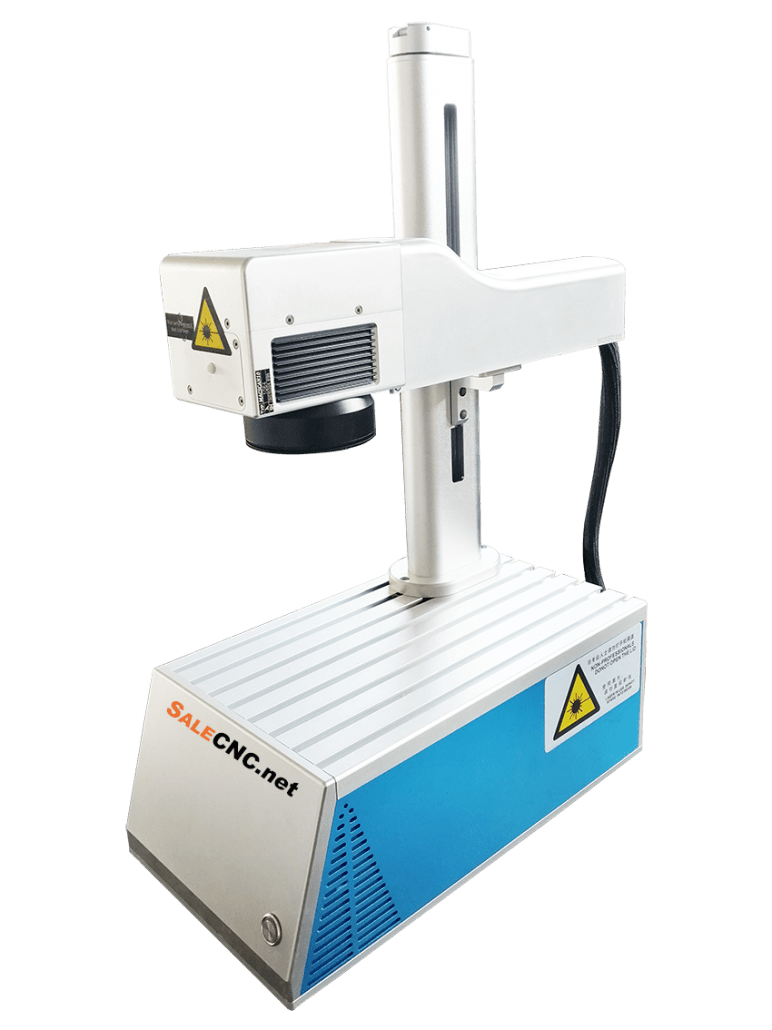

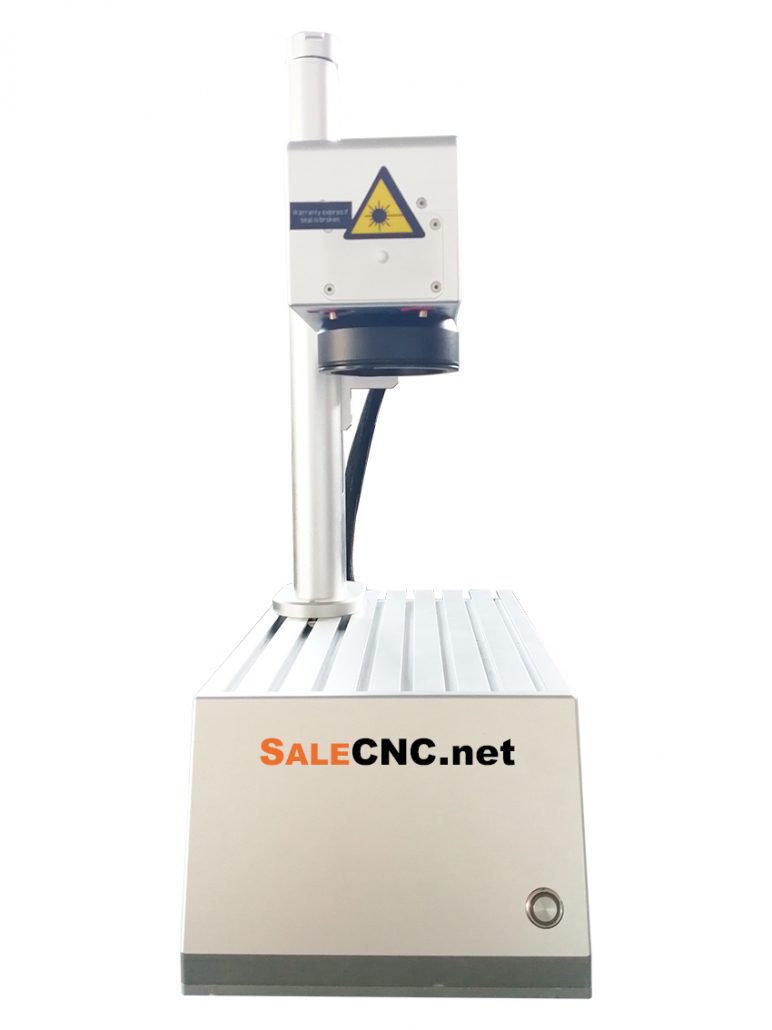

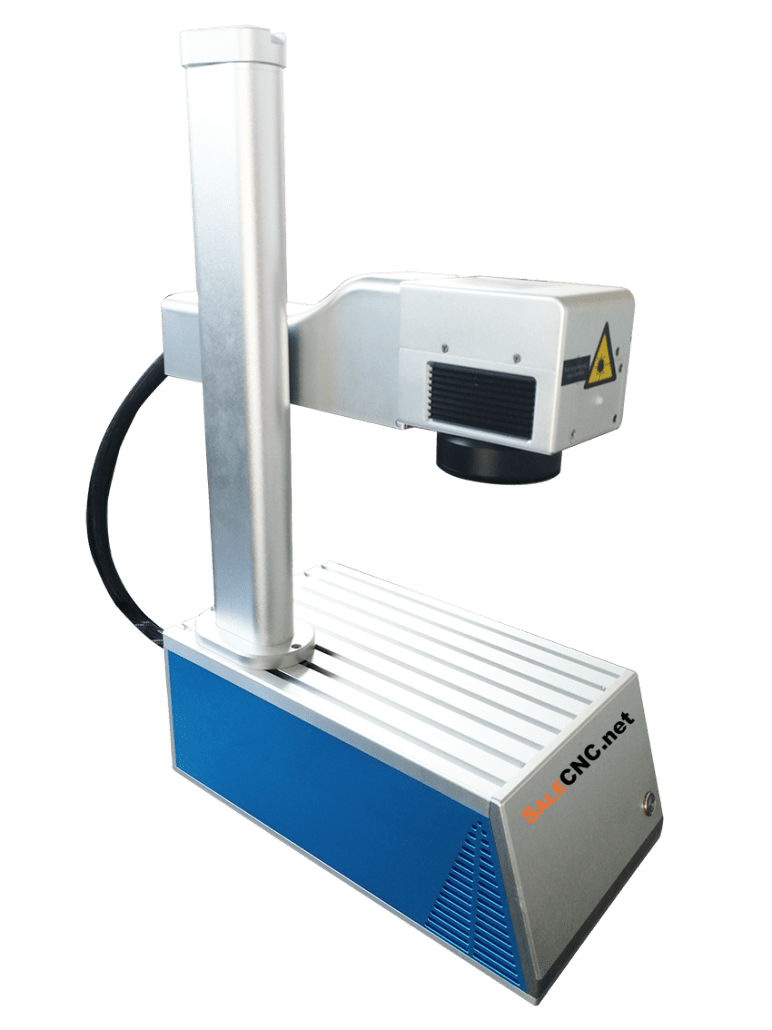

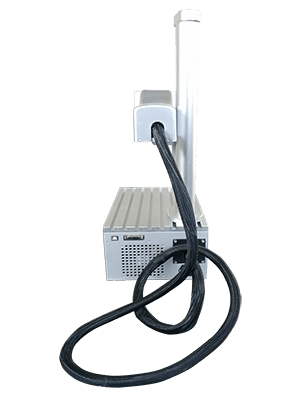

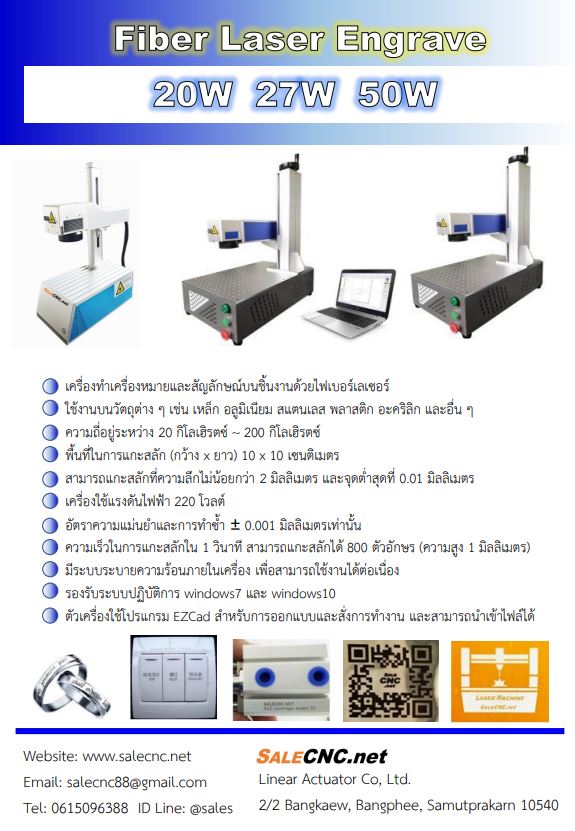

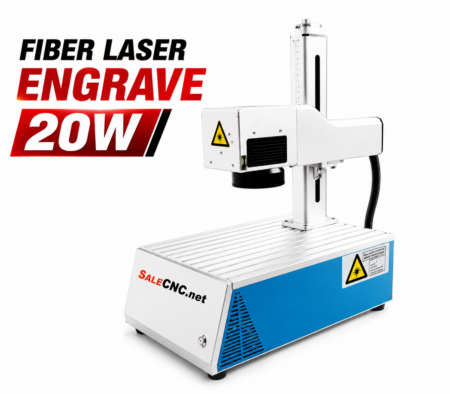

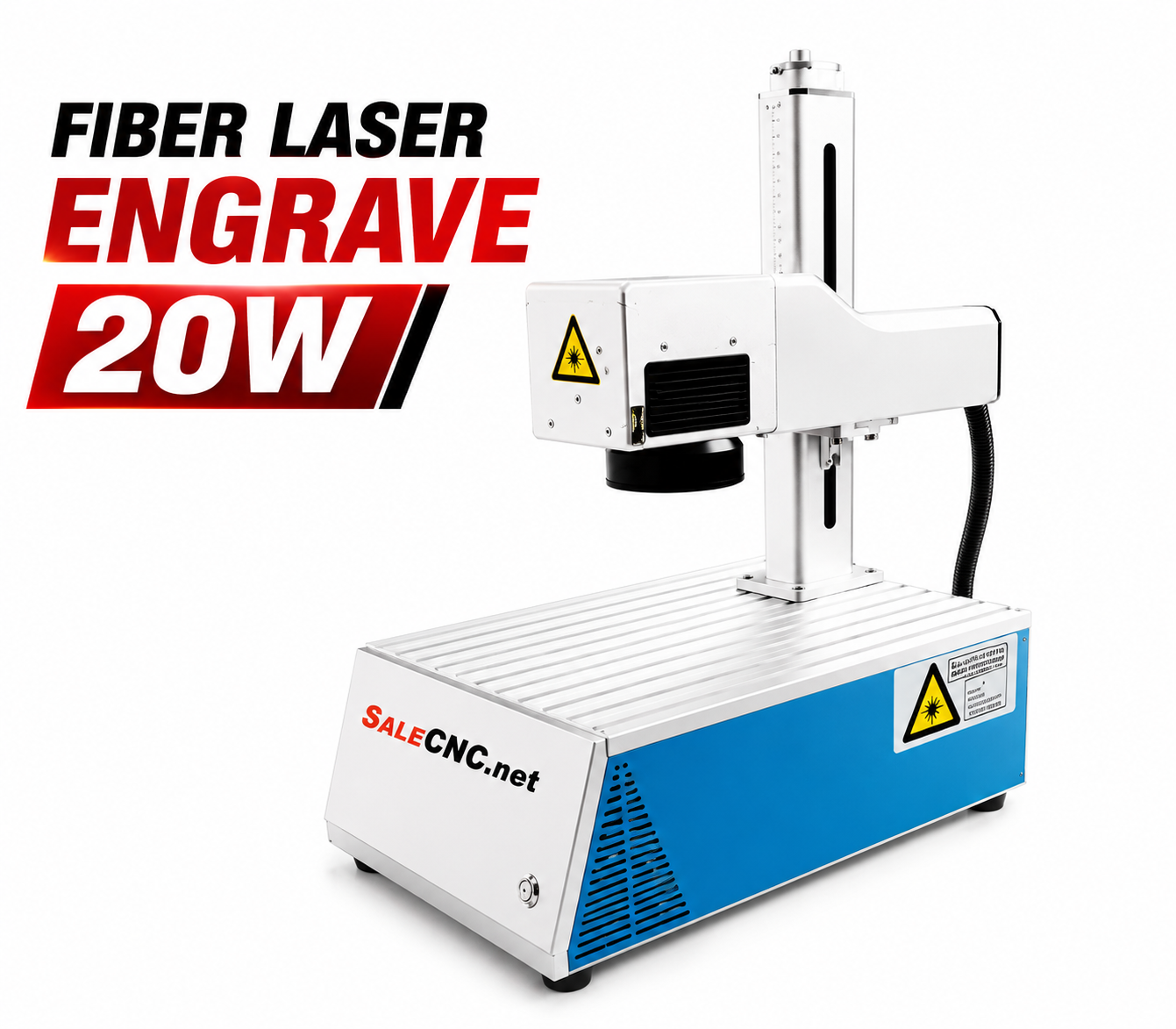

Fiber Laser Engrave 20W
เครื่องเลเซอร์มาร์คกิ้ง 20W สินค้าไม่ได้รวมเซ็ตคอมพิวเตอร์
- เครื่องเลเซอร์มาร์คกิ้ง 20W ยิงด้วยไฟเบอร์เลเซอร์ อายุการใช้งานมากถึง 100,000 ชั่วโมง สามารถมาร์คกิ้ง แกะสลัก ตัวอักษร ลวดลาย ตามที่ออกแบบมาได้บนวัสดุมากมาย เช่น เหล็ก อลูมิเนียม สแตนเลส พลาสติก อะคริลิก และอื่นๆ อีกมากมาย แต่ไม่สามารถมาร์คกิ้งแกะสลักบนวัสดุที่มีความโปรงใส เช่น อะคริลิกใส กระจก เป็นต้น รับประกันอิเล็กทรอทิกส์ 1 ปี มีโปรแกรมลิขสิทธิ์
- เครื่องเลเซอร์มาร์คกิ้งรองรับการใช้งาน Windowns 7, 10, XP “64,32 bit” ใช้โปรแกรม EZcad ในการออกแบบ และรองรับไฟล์นามสกุล *.ai; *.dxf; *.plt; *.dst; *.svg; *.nc; *.g
- พื้นที่ในการแกะสลัก 100×100 mm
- สามารถแกะสลักที่ความลึกไม่น้อยกว่า 2 มิลลิเมตร และจุดต่ำสุดที่ 0.01 มิลลิเมตร
- ความเร็วในการแกะสลัก 1 วินาที สามารถแกะสลักได้ถึง 800 ตัวอักษร (ขนาดตัวหนังสือ 1 mm)
- มีระบบระบายความร้อนภายในตัวเครื่อง สามรถใช้งานได้ต่อเนื่อง
ยิงแหวนทอง สลักแหวน ด้วยเครื่องเลเซอร์มาร์คกิ้ง 20W Fiber Laser Engrave + Rotary I SALECNC.net
Option เพิ่มเติม
Rotary – sell The fourth axis, the axis of rotation
Card + Rotary Device
- D80 – 80mm motor Nema34 ปรับมุมได้ บวกในราคา 39,000.-
- D100 – 100mm motor Nema34 ปรับมุมได้ บวกในราคา 45,000.-
Video Demonstrate. There are 2 versions another has the industrial computer in it:
วิดีโอสอนประกอบเครื่อง
Anyone can operate this Fiber Laser 20W
Setup and use laser 20W
Laser Rotary Marking:
Engrave QR Code
Engrave into pen

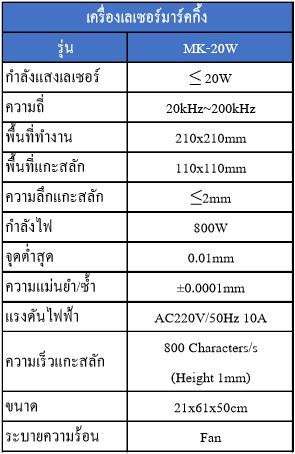

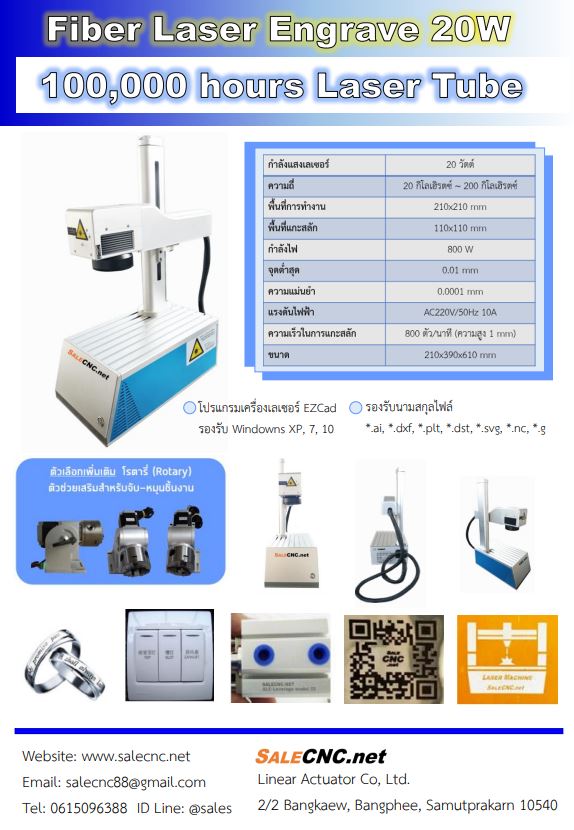

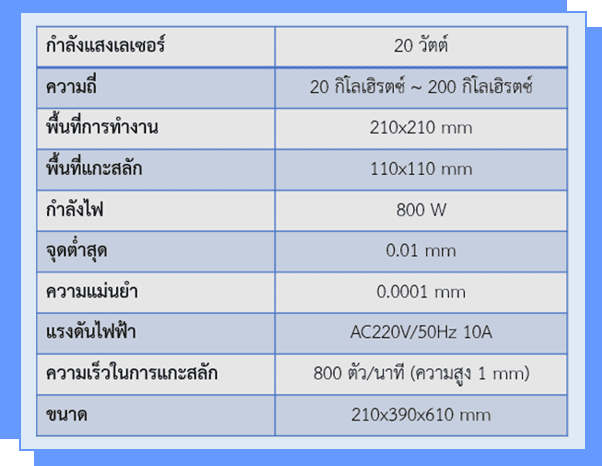

สเปคของเครื่อง :
Fiber Marking Machine 20W Parameters
Materials | Marking effect | Filling | speed (mm/s) | power (%) | Frequency |
---|---|---|---|---|---|
Aluminum oxide block | Marking dark | 0.01 | 300 | 50 | 250 |
Stainless steel block | Marking white | 0.01 | 100 | 40 | 80 |
Stainless steel block | Marking dark | Cross 0.05 | 1000 | 65 | 35 |
Foreign white copper sheet | Marking white | Cross 0.03 | 1000 | 100 | 50 |
Stainless steel block | Marking deep, marking dark | 0.05 | 500 | 80 | 20 |
Stainless steel block | Marking deep, marking dark | 0.01 | 200 | 40 | 80 |
Stainless steel block | Marking deep, marking dark | 0.01 | 200 | 40 | 80 |
Stainless steel block | Marking dark | 0.01 | 200 | 40 | 80 |
Stainless steel block | Marking dark | 0.01 | 220 | 40 | 80 |
White lampshade | Marking dark | 0.03 | 1200 | 90 | 25 |
Red button | Marking white | Cross 0.01 | 1300 | 65 | 35 |
White black lacquer bottons | Marking white | Cross 0.04 | 1000 | 65 | 35 |
Silver material | Marking white | Cross 0.05 | 1200 | 100 | 35 |
Stainless steel block | Wire drawing | 0.09 | 1000 | 70 | 35 |
Stainless steel block | Wire drawing | 0.12 | 1000 | 70 | 35 |
Stainless steel block | Wire drawing | 0.25 | 1000 | 70 | 35 |
Red copper | Marking deep, marking white | 0.02 | 100 | 100 | 20 |
Red copper | Marking deep, marking white | 0.02 | 1000 | 70 | 80 |
Red copper | Marking deep, marking red | 0.01 | 100 | 100 | 80 |
Red copper | Marking deep, marking red | 0.03 | 1200 | 65 | 25 |
White plastic pipes | blace | 0.03 | 1200 | 65 | 25 |
White background coating Blue lacquer | Marking white | 0.03 | 800 | 85 | 40 |
Circuit board | Marking white | 0.01 | 1000 | 95 | 32 |
Aluminum molds | Marking white | Cross 0.05 | 100 | 95 | 45 |
Brass | Marking white | Cross 0.05 | 1000 | 80 | 40 |
Black hard plsatic | Marking white | 0.05 | 1500-2000 | 60-75 | 25-45 |
Iron | Marking white | Cross 0.05 | 1000 | 55 | 35 |
The new laser housing | Marking dark | 0.01 | 100 | 100 | 20 |
Brass | Marking deep, marking dark | Cross 0.01 | 100 | 95 | 20 |
Aluminum Alloy | Marking deep, marking dark | Cross 0.01 | 200 | 100 | 30 |

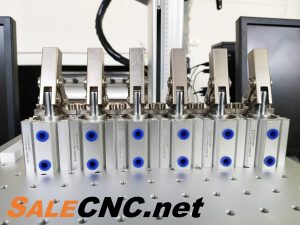

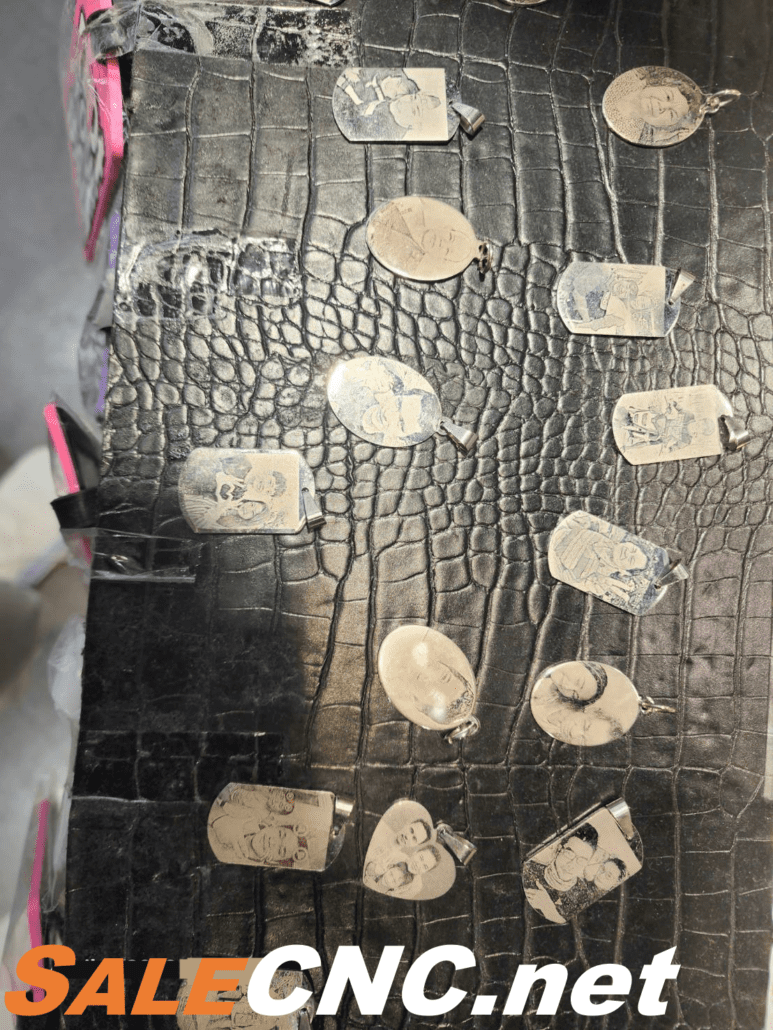

ตัวอย่างผลงานของเครื่อง :
แกะสลักชื่อแบรนด์ และรุ่นสินค้า
Manual can be download here: Click For Manual
การติดตั้งโปรแกรม EZCad สำหรับ เครื่อง salecnc net เลเซอร์มาร์คกิ้ง 20W Fiber Laser Engrave
การใช้งานโปรแกรม EZCad สำหรับ เครื่อง salecnc net เลเซอร์มาร์คกิ้ง 20W Fiber Laser Engrave Part1
การใช้งานโปรแกรม EZCad สำหรับ เครื่อง salecnc net เลเซอร์มาร์คกิ้ง 20W Fiber Laser Engrave Part2
