Description

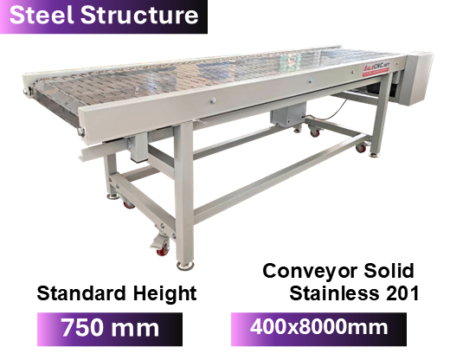

Stainless 201 Conveyor

Conveyor Belt – Stainless 201 Flat Type

Steel Structure (Fixed Height Legs)

• Conveyor for transporting goods, Mesh Belt type.
• Electric motor driven, with adjustable belt speed.
• Facilitates material handling and logistics; easy to install and operate.
• Standard machine height: 75 cm. (Fixed)
• Product load capacity on conveyor: approximately 40 kg.
• Temperature resistance: -50 to +200 degrees Celsius.

Mesh Belt is a type of conveyor belt constructed from interconnected wires or fibers forming a mesh. This design allows for easy passage of air or liquids. Mesh belts are commonly employed in applications requiring ventilation or cooling, as well as for material transport in various industries, particularly in baking or heating processes.

Features and Applications of Mesh Belts:

1. Excellent Ventilation: The mesh construction provides gaps between wires, enabling efficient airflow and heat dissipation.
2. High-Temperature Resistance: Mesh belts are often utilized in processes involving baking or heating, such as food drying or material baking.
3. Diverse Materials: Mesh belts can be manufactured from various materials, including stainless steel, plated steel, or corrosion-resistant alloys.
4. Industrial Applications: Commonly found in the food industry (drying/baking), chemical industry, parts manufacturing, and assembly lines requiring air circulation.

Product examples:

Inverter Motor with Motor Speed Ratio 30-40 meters/minute. Additional Cost: 7500 THB.

• Conveyor Belt PVC 500x1000x750 mm
• Speed 40 m/min. Adjustable pedestal legs: 100 mm.
• Load capacity: 3 Kg. per entire belt.
• Price: 32,000 THB.

• Conveyor Belt PVC 500x1500x750 mm
• Speed 40 m/min. Adjustable pedestal legs: 100 mm.
• Load capacity: 3 Kg. per entire belt.

• Conveyor Belt PU with Stainless Steel Frame: 400x1500x800 mm
• Speed 8-13 m/min. Adjustable pedestal legs: 100 mm.
• Load capacity: 30 Kg. per entire belt.

• Conveyor Belt PVC with Aluminum Profile Frame: 300×1500 mm
• Speed 8-13 m/min. Adjustable legs.
• Load capacity: 20 Kg. per entire belt.

• Conveyor Belt PU with Aluminum Profile Frame: 500×4500 mm
• Speed 8-13 m/min. Adjustable legs.
• Load capacity: 30 Kg. per entire belt.

• Conveyor Belt PVC with Aluminum Profile Frame: 300×6000 mm
• Speed 8-13 m/min. Adjustable legs.
• Load capacity: 30 Kg. per entire belt.

• Conveyor Belt PU with Stainless Steel 304 Frame + Stainless Steel 304 Table: 500×3000 mm
• Speed 3-5 m/min. Adjustable legs.
• Load capacity: 30 Kg. per entire belt.

• Conveyor Belt PU with Stainless Steel 304 Frame + Stainless Steel 304 Table: 400×3000 mm
• Speed 3-5 m/min. Adjustable legs.
• Load capacity: 30 Kg. per entire belt.

• Conveyor Belt PU with Stainless Steel 304 Frame: 500×1500 mm
• Speed 8-13 m/min. Adjustable legs.
• Load capacity: 30 Kg. per entire belt.

• Conveyor Belt Stainless Steel 304 with Steel Frame
• Speed 3-5 m/min. Adjustable legs.
• Load capacity: 30 Kg. per entire belt.

• Conveyor Belt PVC 300x1500x750 mm
• Conveyor Belt PVC 300x1000x750 mm
• Conveyor Belt PVC 300x1200x300 mm
• Speed 8-13 m/min
• Weight capacity: 2-3 Kg.

• Conveyor Belt PVC with Aluminum Profile Frame: 300×1500 mm
• Speed 8-13 m/min. Adjustable legs.
• Load capacity: 30 Kg. per entire belt.

• Conveyor Mesh Stainless Steel 304 with Stainless Steel 304 Frame: 600×1000 mm
• Speed 3-5 m/min. Adjustable legs.
• Load capacity: 40 Kg. per entire belt.

• Conveyor Stainless Steel 304 with Steel Structure
• Speed 3-5 m/min. Height: 750 mm.
• Load capacity: 40 Kg. per entire belt.

Conveyor Belt PVC Speed Specifications

**English**

Product load capacity on conveyor: approximately 30 Kg.

• Standard motor: 120W. Optional motors: 200W, 400W, 600W.

Differences Between PVC, PU, and Stainless Steel Conveyor Belts

1. Materials and Properties

   • PVC (Polyvinyl Chloride)
     ✅ Flexible and offers moderate chemical resistance.
     ✅ Lower cost compared to PU and stainless steel.
     ✅ Suitable for general applications, such as packaging or material handling of non-oily/greasy substances.
     ❌ Not suitable for high temperatures and may wear faster than PU.

   • PU (Polyurethane)
     ✅ Better resistance to grease, oil, and chemicals than PVC.
     ✅ Smoother surface, ideal for food and pharmaceutical industries.
     ✅ Higher tear strength and longer lifespan than PVC.
     ❌ Higher cost than PVC.

   • Stainless Steel
     ✅ High strength, resistant to impact and abrasion.
     ✅ Suitable for industries requiring high hygiene standards, such as food and beverage processing.
     ✅ Resistant to high temperatures and chemicals.
     ❌ High cost and potentially heavier weight.

2. Suitable Applications

   • PVC → General goods transport, e.g., packaging, electronics.
   • PU → Food, pharmaceutical industries, and applications involving contact with oil or grease.
   • Stainless Steel → Applications requiring high hygiene, or in environments with high temperatures or humidity, such as food and beverage plants, and heavy industries.
