Description

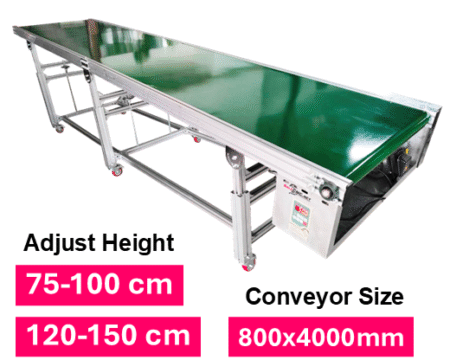

Conveyor Belt PVC 800×4000 mm

Height Range 1: 750-1000 mm

Height Range 2: 1200-1500 mm

Maximum Load Capacity: 40 Kg.

Speed Configuration: 20:1 / 8-13 m/min / Motor: 400W

Frame Construction: Aluminum Profile

Speed 20:1 / 8-13m/min / Motor 400W

Conveyor Belt – PVC Type

(Adjustable Height)

Conveyor BC Height Adjustment Options (Select One):

1. 700 to 1000 mm (300mm adjustment range)
2. 750 to 1100 mm (350mm adjustment range)
3. 800 to 1150 mm (350mm adjustment range)
4. 900 to 1300 mm (400mm adjustment range)
5. 950 to 1400 mm (450mm adjustment range)
6. 1000 to 1500 mm (500mm adjustment range)

(Select one height range)

Height Adjustment Ranges:

• 75 cm base height: 35 cm adjustment
• 80 cm base height: 35 cm adjustment
• 85 cm base height: 40 cm adjustment
• 90 cm base height: 40 cm adjustment
• 95 cm base height: 45 cm adjustment
• 100 cm base height: 50 cm adjustment

(Select one height adjustment range)

• PVC Conveyor Belt for material handling and transport.
• Electric motor driven with adjustable flow speed.
• Facilitates material handling and transport; easy to install and operate.
• Standard machine height: 75 cm (non-adjustable).
• Product load capacity on conveyor: approximately 30 kg.

Polyvinyl Chloride (PVC) Properties

• PVC offers good resistance to high temperatures, tensile strength, and puncture/tear resistance.
• PVC exhibits excellent wear resistance.
• PVC provides good resistance to oils and is odor-resistant.
• PVC is robust and durable against abrasion.

Example Products:

Optional Inverter Motor – Speed Ratio: 30-40 meters/minute, Additional Cost: 7500 THB

• Conveyor Belt PVC 500x1000x750 mm
• Speed: 40 m/min, Adjustable Height Legs: 100 mm.
• Total Belt Load Capacity: 3 Kg.
• Price: 32,000 THB

• Conveyor Belt PVC 500x1500x750 mm
• Speed: 40 m/min, Adjustable Height Legs: 100 mm.
• Total Belt Load Capacity: 3 Kg.

• Conveyor Belt PU, Stainless Steel Frame: 400x1500x800 mm
• Speed: 8-13 m/min, Adjustable Height Legs: 100 mm.
• Total Belt Load Capacity: 30 Kg.

• Conveyor Belt PVC, Aluminum Profile Frame: 300×1500 mm
• Speed: 8-13 m/min, Adjustable Legs
• Total Belt Load Capacity: 20 Kg.

• Conveyor Belt PU, Aluminum Profile Frame: 500×4500 mm
• Speed: 8-13 m/min, Adjustable Legs
• Total Belt Load Capacity: 30 Kg.

• Conveyor Belt PVC, Aluminum Profile Frame: 300×6000 mm
• Speed: 8-13 m/min, Adjustable Legs
• Total Belt Load Capacity: 30 Kg.

• Conveyor Belt PU, Stainless Steel 304 Frame: 500×3000 mm + Stainless Steel 304 Table
• Speed: 3-5 m/min, Adjustable Legs
• Total Belt Load Capacity: 30 Kg.

• Conveyor Belt PU, Stainless Steel 304 Frame: 400×3000 mm + Stainless Steel 304 Table
• Speed: 3-5 m/min, Adjustable Legs
• Total Belt Load Capacity: 30 Kg.

• Conveyor Belt PU, Stainless Steel 304 Frame: 500×1500 mm
• Speed: 8-13 m/min, Adjustable Legs
• Total Belt Load Capacity: 30 Kg.

• Steel Structure Stainless 304 Conveyor Solid

• Speed: 3-5 m/min, Adjustable Legs
• Total Belt Load Capacity: 40 Kg.

• Conveyor Belt PVC 300x1500x750 mm
• Conveyor Belt PVC 300x1000x750 mm
• Conveyor Belt PVC 300x1200x300 mm
• Speed: 8-13 m/min
• Weight: 2-3 kg.

•
• Conveyor Belt PVC, Aluminum Profile Frame: 300×1500 mm
• Speed: 8-13 m/min, Adjustable Legs
• Total Belt Load Capacity: 30 Kg.

• Conveyor Mesh, Stainless Steel 304, Stainless Steel 304 Frame: 600×1000 mm
• Speed: 3-5 m/min, Adjustable Legs
• Total Belt Load Capacity: 40 Kg.

Conveyor Belt PVC Speed Specifications

English Version

Thai Version

https://youtu.be/nlWc4jRPjM0?si=pLIe53J2EObnbE1w

Product on conveyor: approximately 30kg

• Standard motor: 120W. Optional motors: 200W, 400W, 600W.

Differences Between PVC, PU, and Stainless Steel Conveyor Belts

1. Materials and Properties

   • PVC (Polyvinyl Chloride)
     ✅ Flexible and offers moderate chemical resistance.
     ✅ Lower cost compared to PU and stainless steel.
     ✅ Suitable for general applications such as packaging or transporting materials without oil and grease.
     ❌ Not resistant to high temperatures and may wear faster than PU.

   • PU (Polyurethane)
     ✅ Superior resistance to grease, oil, and chemicals compared to PVC.
     ✅ Smoother surface, ideal for food and pharmaceutical industries.
     ✅ Higher resistance to tearing and longer lifespan than PVC.
     ❌ Higher cost than PVC.

   • Stainless Steel
     ✅ High strength, resistant to impact and wear.
     ✅ Suitable for industries requiring high hygiene standards, such as food and beverage processing.
     ✅ Resistant to high temperatures and chemicals.
     ❌ High cost and potentially heavy.

2. Suitable Applications

   • PVC → Used for general goods transport, such as packaging and electronics.
   • PU → Used in food and pharmaceutical industries, and applications involving contact with oil or grease.
   • Stainless Steel → Used in applications requiring high hygiene standards or harsh environments with high temperatures or humidity, such as food and beverage production plants and heavy industries.
