Description

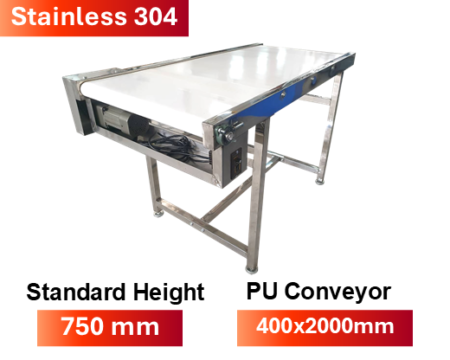

Conveyor Belt PU

Material Handling Conveyor Belt, PU Type

Stainless Steel 304 Construction (Fixed Height Legs)

• Polyurethane (PU) material conveyor belt for material handling and transport.
• Equipped with an electric motor, featuring adjustable belt speed control.
• Facilitates easy material transfer and item sorting; simple installation and operation.
• Standard machine height: 75 cm (non-adjustable).
• Product load capacity on conveyor: Approximately 30 kg.

Polyurethane (PU) Belting is widely adopted across numerous industries due to its distinctive properties:

1. High Durability: Polyurethane exhibits superior strength and wear resistance, making it ideal for demanding applications involving the transport of heavy materials or components.
2. Chemical Resistance: PU offers excellent resistance to various chemicals, including certain acids and alkalis, suitable for environments with chemical exposure or processing.
3. High Temperature Tolerance: PU belts can withstand higher temperatures compared to many other materials, ensuring reliable performance in elevated temperature conditions.
4. Flexibility and Customization: The high flexibility of polyurethane allows for precise shaping and sizing to meet specific application requirements. It can also be engineered with varying degrees of grip or flexibility.
5. Scratch Resistance: PU possesses good resistance to abrasion and scratching, beneficial for applications involving contact with rough or abrasive materials.
6. Lightweight Construction: PU belts are typically lighter than other belt types, simplifying installation and reducing operational resistance.
7. Tensile Strength: PU belts demonstrate strong tensile and compressive strength, ensuring robust performance in conveying and material transport systems.
8. Quiet Operation: PU belts generally operate more quietly than other belt types, contributing to a reduced noise level in factory and production environments.

These attributes make PU belting suitable for diverse industrial applications, including the food and beverage, automotive, and general material handling sectors.

Example Products:

Inverter Motor – Motor speed ratio 30-40 meters/minute (Additional Charge: 7500 THB)

• Conveyor Belt PVC, 500x1000x750 mm
• Speed: 40 m/min; Adjustable Legs: 100 mm
• Total belt load capacity: 3 Kg.
• Price: 32,000 THB

• Conveyor Belt PVC, 500x1500x750 mm
• Speed: 40 m/min; Adjustable Legs: 100 mm
• Total belt load capacity: 3 Kg.

• Conveyor Belt PU with Stainless Steel Frame, 400x1500x800 mm
• Speed: 8-13 m/min; Adjustable Legs: 100 mm
• Total belt load capacity: 30 Kg.

• Conveyor Belt PVC with Aluminum Profile Frame, 300×1500 mm
• Speed: 8-13 m/min; Adjustable Legs
• Total belt load capacity: 20 Kg.

• Conveyor Belt PU with Aluminum Profile Frame, 500×4500 mm
• Speed: 8-13 m/min; Adjustable Legs
• Total belt load capacity: 30 Kg.

• Conveyor Belt PVC with Aluminum Profile Frame, 300×6000 mm
• Speed: 8-13 m/min; Adjustable Legs
• Total belt load capacity: 30 Kg.

• Conveyor Belt PU with Stainless Steel 304 Frame + Stainless Steel 304 Table, 500×3000 mm
• Speed: 3-5 m/min; Adjustable Legs
• Total belt load capacity: 30 Kg.

• Conveyor Belt PU with Stainless Steel 304 Frame + Stainless Steel 304 Table, 400×3000 mm
• Speed: 3-5 m/min; Adjustable Legs
• Total belt load capacity: 30 Kg.

• Conveyor Belt PU with Stainless Steel 304 Frame, 500×1500 mm
• Speed: 8-13 m/min; Adjustable Legs
• Total belt load capacity: 30 Kg.

• Steel Structure Stainless 304 Conveyor Solid

• Speed: 3-5 m/min; Adjustable Legs
• Total belt load capacity: 40 Kg.

• Conveyor Belt PVC, 300x1500x750 mm
• Conveyor Belt PVC, 300x1000x750 mm
• Conveyor Belt PVC, 300x1200x300 mm
• Speed: 8-13 m/min
• Weight capacity: 2-3 kg.

•
• Conveyor Belt PVC with Aluminum Profile Frame, 300×1500 mm
• Speed: 8-13 m/min; Adjustable Legs
• Total belt load capacity: 30 Kg.

• Conveyor Mesh Belt, Stainless Steel 304 with Stainless Steel 304 Frame, 600×1000 mm
• Speed: 3-5 m/min; Adjustable Legs
• Total belt load capacity: 40 Kg.

Conveyor Belt PVC Speed Specifications

Product on conveyor approximately 30 kg

• Standard motor: 120W. Optional motors available: 200W, 400W, 600W.

Differences Between PVC, PU, and Stainless Steel Conveyor Belts

1. Material and Properties

   • PVC (Polyvinyl Chloride)
     ✅ Flexible and offers moderate chemical resistance.
     ✅ Lower cost compared to PU and Stainless Steel.
     ✅ Suitable for general applications such as packaging or transporting materials free of oil and grease.
     ❌ Not resistant to high temperatures and may wear faster than PU.
   • PU (Polyurethane)
     ✅ Superior resistance to oils, greases, and chemicals compared to PVC.
     ✅ Smoother surface, ideal for food and pharmaceutical industries.
     ✅ Higher tear resistance and longer service life than PVC.
     ❌ Higher cost than PVC.
   • Stainless Steel
     ✅ High strength, resistant to impact and abrasion.
     ✅ Suitable for industries requiring high hygiene standards, such as food and beverage processing.
     ✅ Resistant to high temperatures and chemicals.
     ❌ Higher cost and potentially greater weight.

2. Suitable Applications

   • PVC → General cargo transport, e.g., packaging, electronics.
   • PU → Food industry, pharmaceuticals, and applications involving contact with oils or greases.
   • Stainless Steel → Applications demanding high cleanliness or operating in high-temperature or high-humidity environments, such as food and beverage production plants, and heavy industry.
