คำอธิบาย

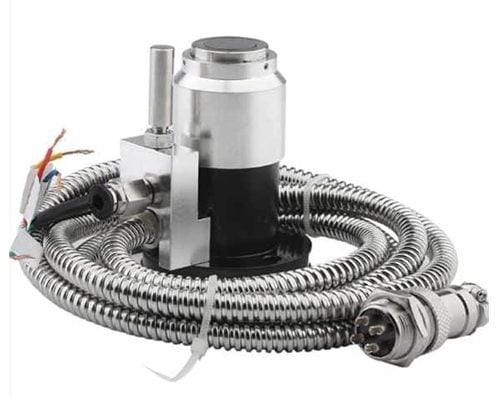

Tool set

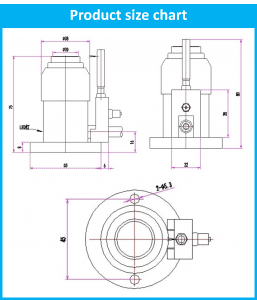

ขนาด Product size chart :

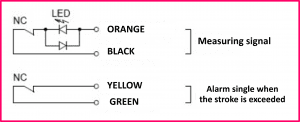

B:NC (Normally closed)
พารามิเตอร์ Normally closed specifications technical parameters :
| Output mode | B:NC (Normally closed) |
|---|---|
| Pre-travel | Almost zero |
| Itinerary | 5 mm |
| Repeatability | 0.001 mm (Condition operating speed 50-200 mm/min) |
| Contact life | 300 Million times |
| Protection structure | IP67 |
| Contact | 1.5N |
| Contact material | Super hard alloy |
| Shell material | Grind 4S |
| Contact rating | DC24V 20mA (MAX) (Recommended value 10 mA) Resistance load |
| Cable | 3m oil resistance, 4 core 5 tensile strength 30N minimum bending radius R7 |
| Protective tube | 1m minimum bending radius R25 |
| LED lamp | Normally open when working |
Alarm single when the stroke is exceeded :
| Output mode | B:NC (Normally closed) [Distance measurement signal about 2.5 mm] |
|---|---|
| Contact rating | DC24V 20mA (MAX) (Recommended value 10 mA) Resistance load |
A:NO (Normally open)
พารามิเตอร์ Normally closed specifications technical parameters :
| Output mode | A:NO (Normally open) |
|---|---|
| Pre-travel | Almost zero |
| Itinerary | 5 mm |
| Repeatability | 0.001 mm (Condition operating speed 50-200 mm/min) |
| Contact life | 300 Million times |
| Protection structure | IP67 |
| Contact | 1.5N (Installation state : vertical) |
| Contact material | Super hard alloy |
| Shell material | Grind 4S |
| Contact rating | DC24V 20mA (MAX) (Recommended value 10 mA) Resistance load |
| Cable | 15m oil resistance, 5.5 of 6 cores; Tensile strength 30N minimum bending radius R7 |
| Protective tube | 2.5m2 minimum bending radius R25 |
| LED lamp | Open when normally closed |
Alarm single when the stroke is exceeded :
| Output mode | B:NC (Normally closed) [Distance measurement signal about 2.5 mm] |
|---|---|
| Contact rating | DC24V 100mA (Resistance load) |

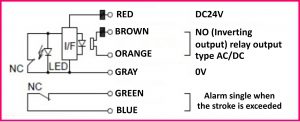

Built-in circuit diagram of standard VF components :
| Voltage | DC24V |
| Current consumption | 10mA |
| Output specifications | DC60V 100mA (Resistive load) / AC60V 100mA (Peak value) / 500 mW (Max) |
