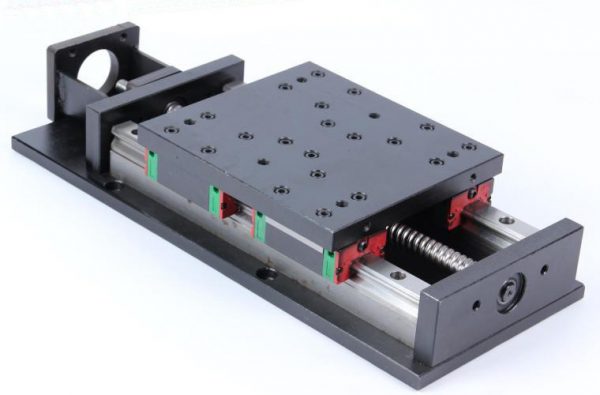

Sell Square Linear Set HG20 Pallet Platform, Stroke 0.60 meter
Parameters
1. Sliding table material: 45 # steel
2. Slider panel: 160 wide × 180 long. M8 mounting holes (104 * 140)
3. Sliding floor: 160 × (effective stroke +290). Floor thickness 15mm
4. Sliding table height: 79mm
5. Actuator: ball screw diameter of 16 lead 10 (take a circle of 10mm can be changed). Rail HGH20CA (micro preload precision class)
6. Positioning accuracy: 0.02mm
7. Load: Horizontal 180kg / Vertical 90kg
8. Accessories: 57 or 86 bracket or servo 60 or 80 bracket or hand wheel choose one.
