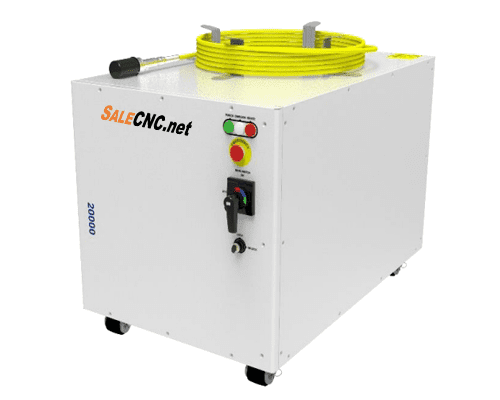

High Power Fiber Laser
HPFL-20000-G3

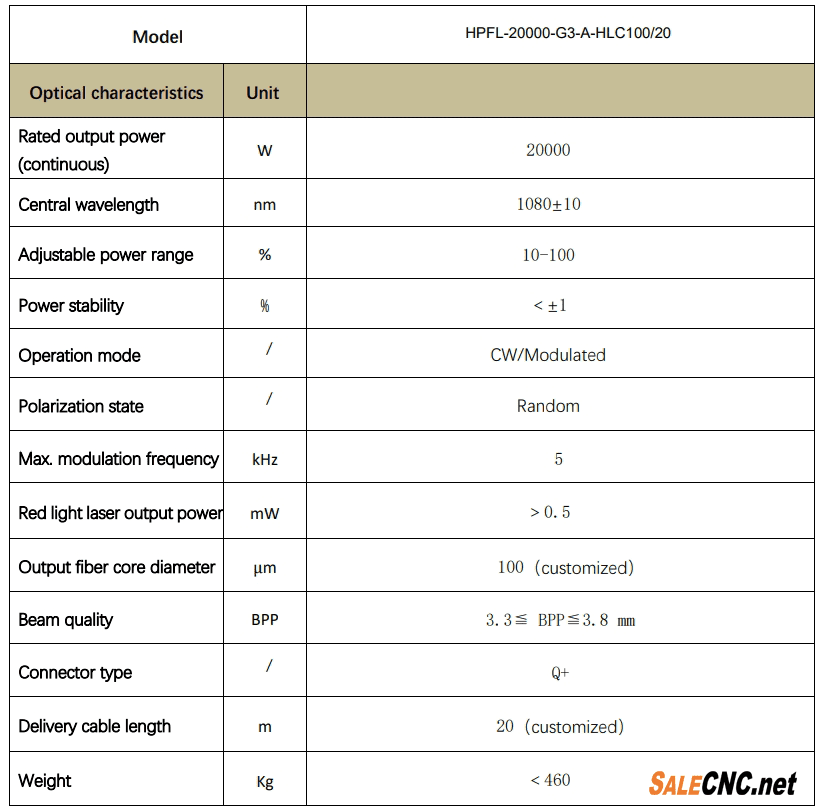

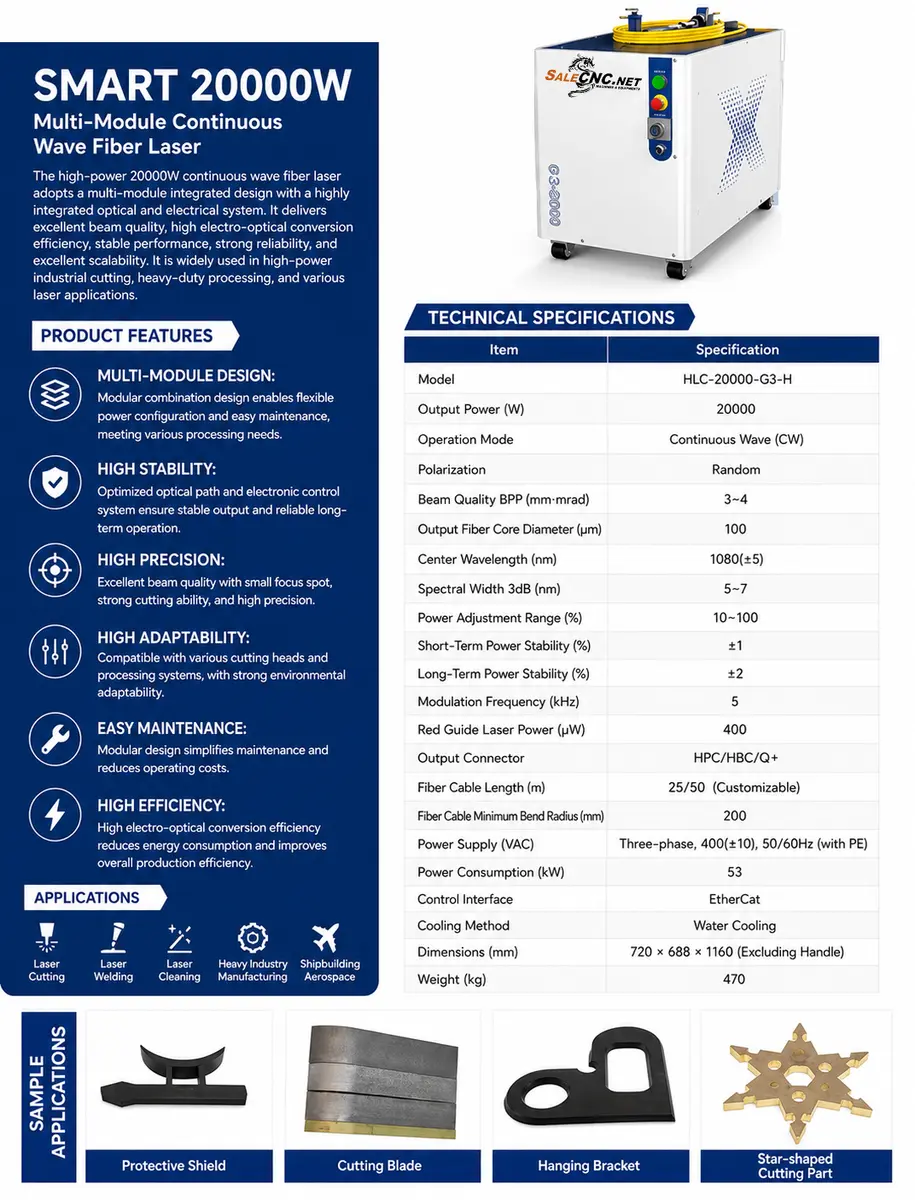

Laser technical parameters and specifications
Laser size diagram
The following is the laser appearance size diagram. Whidth x height x depth : 720*668*1120mm
Front panel introduction
| Item | Specification |
|---|---|
| Model | HLC-20000-G3-H |
| Output Power (W) | 20,000 |
| Operating Mode | Continuous / Modulated |
| Polarization | Random |
| Beam Parameter Product (BPP) | 3–4 mm·mrad |
| Output Fiber Core Diameter (μm) | 100 |
| Central Wavelength (nm) | 1080 (±5) |
| Spectral Bandwidth @3dB (nm) | 5–7 |
| Power Adjustment Range (%) | 10–100 |
| Short-Term Power Stability (%) | ±1 |
| Long-Term Power Stability (%) | ±2 |
| Modulation Frequency (kHz) | 5 |
| Guide Beam Power (μW) | 400 |
| Output Connector | HPC / HBC / Q+ |
| Fiber Cable Length (m) | 25 / 30 (Customizable) |
| Fiber Minimum Bending Radius (mm) | 200 |
| Operating Voltage (VAC) | Three-phase, 4-wire, 400V (±40V), 50/60Hz (with PE) |
| Power Consumption (kW) | 53 |
| Communication Interface | EtherCAT |
| Cooling Method | Water Cooling |
| Dimensions (mm) | 720 × 668 × 1160 (Excluding Casters) |
| Weight (kg) | 470 |
