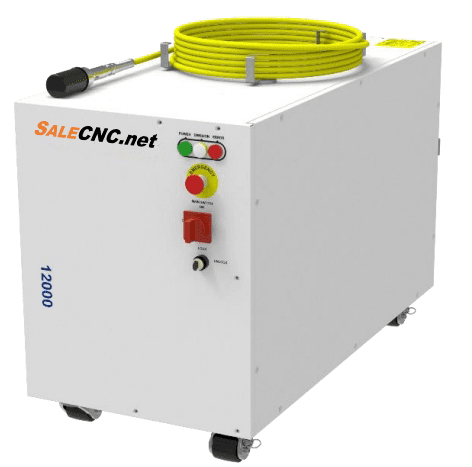

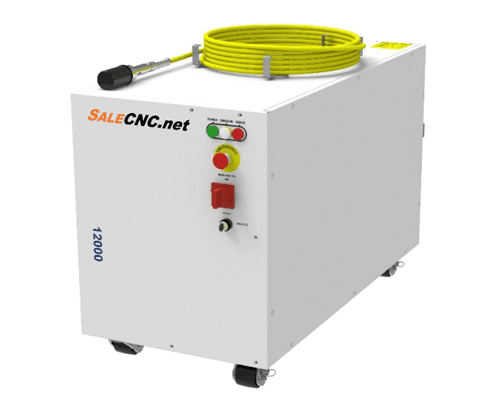

12000W Fiber Laser HPFL-12000-G3 High Power

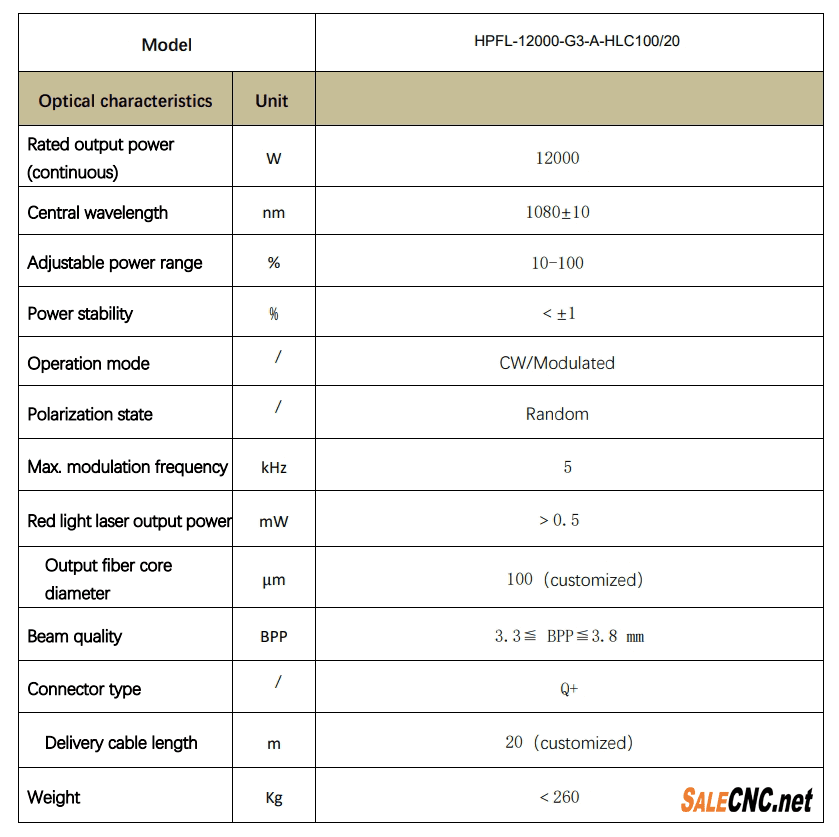

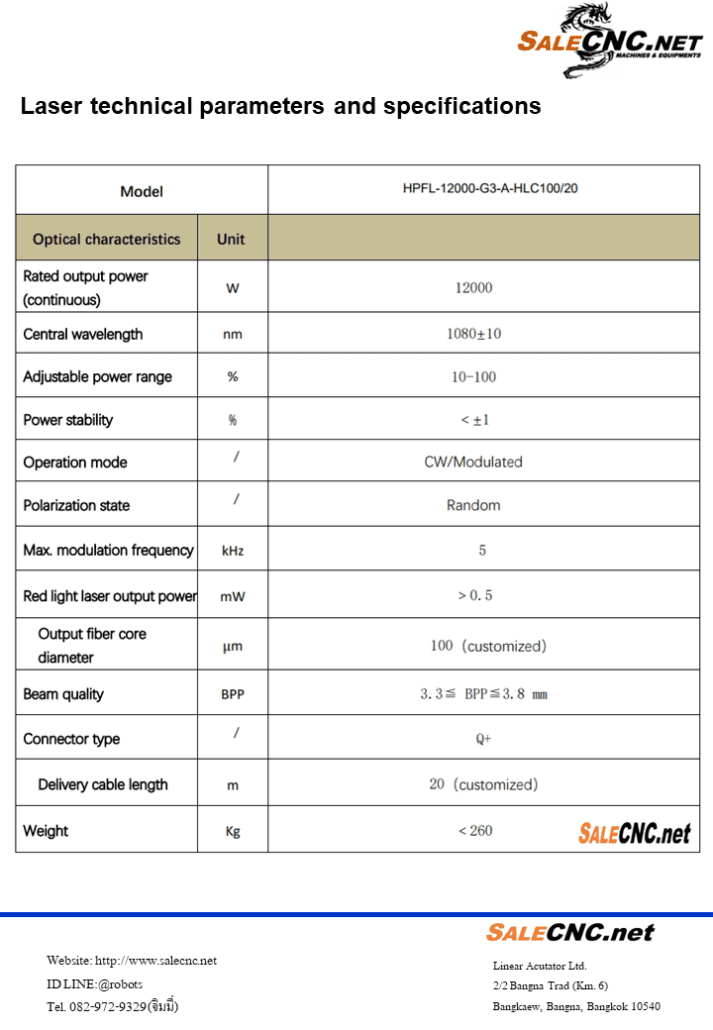

Laser technical parameters and specifications

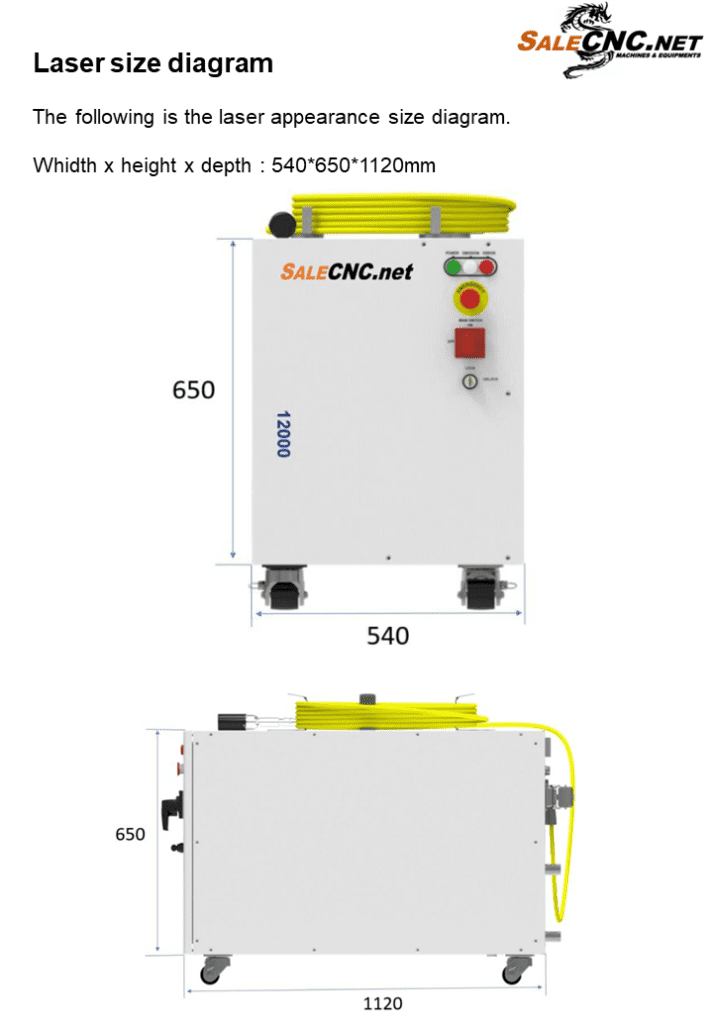

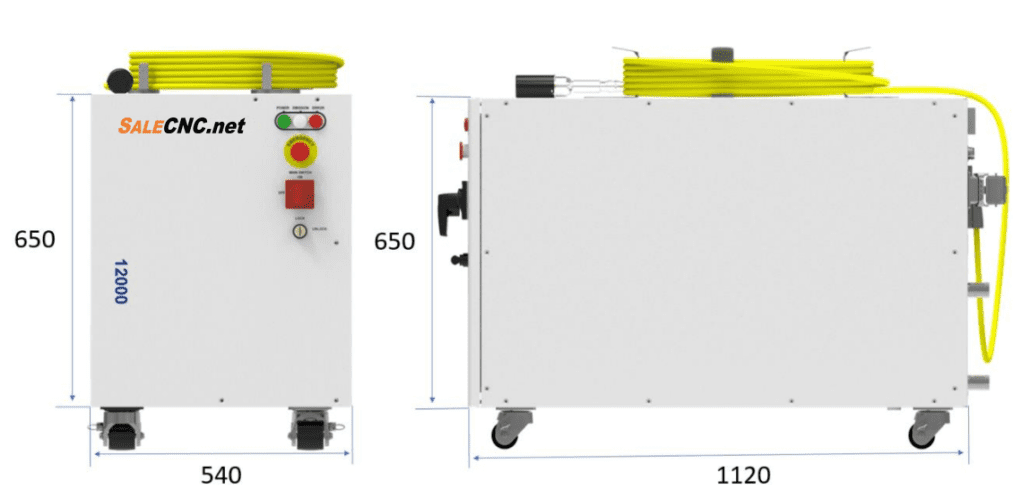

Laser size diagram
The following is the laser appearance size diagram. Whidth x height x depth : 540*650*1120mm
สเปก HLC-12000-G3-H:
| Specification | HLC-12000-G3-H |
|---|---|
| Model | HLC-12000-G3-H |
| Output Power | 12000 W |
| Operating Mode | Continuous Wave (CW) / Modulated |
| Polarization | Random |
| Beam Quality (BPP) | 3–4 mm·mrad |
| Output Fiber Core Diameter | 100 μm |
| Center Wavelength | 1080 ±5 nm |
| Spectral Bandwidth (3 dB) | 5–7 nm |
| Power Adjustment Range | 10–100% |
| Short-Term Power Stability | ±1% |
| Long-Term Power Stability | ±2% |
| Modulation Frequency | 5 kHz |
| Red Guide Laser Power | 400 μW |
| Output Connector | HPC / HBC / Q+ |
| Fiber Cable Length | 25 m / 30 m (Customizable) |
| Minimum Fiber Bend Radius | 200 mm |
| Input Voltage | 3-Phase, 4-Wire, 400 V (±40 V), 50/60 Hz (with PE) |
| Power Consumption | 32 kW |
| Control Interface | EtherCAT |
| Cooling Method | Water Cooling |
| Machine Dimensions | 540 × 650 × 1110 mm (Excluding Wheels) |
| Machine Weight | 270 kg |

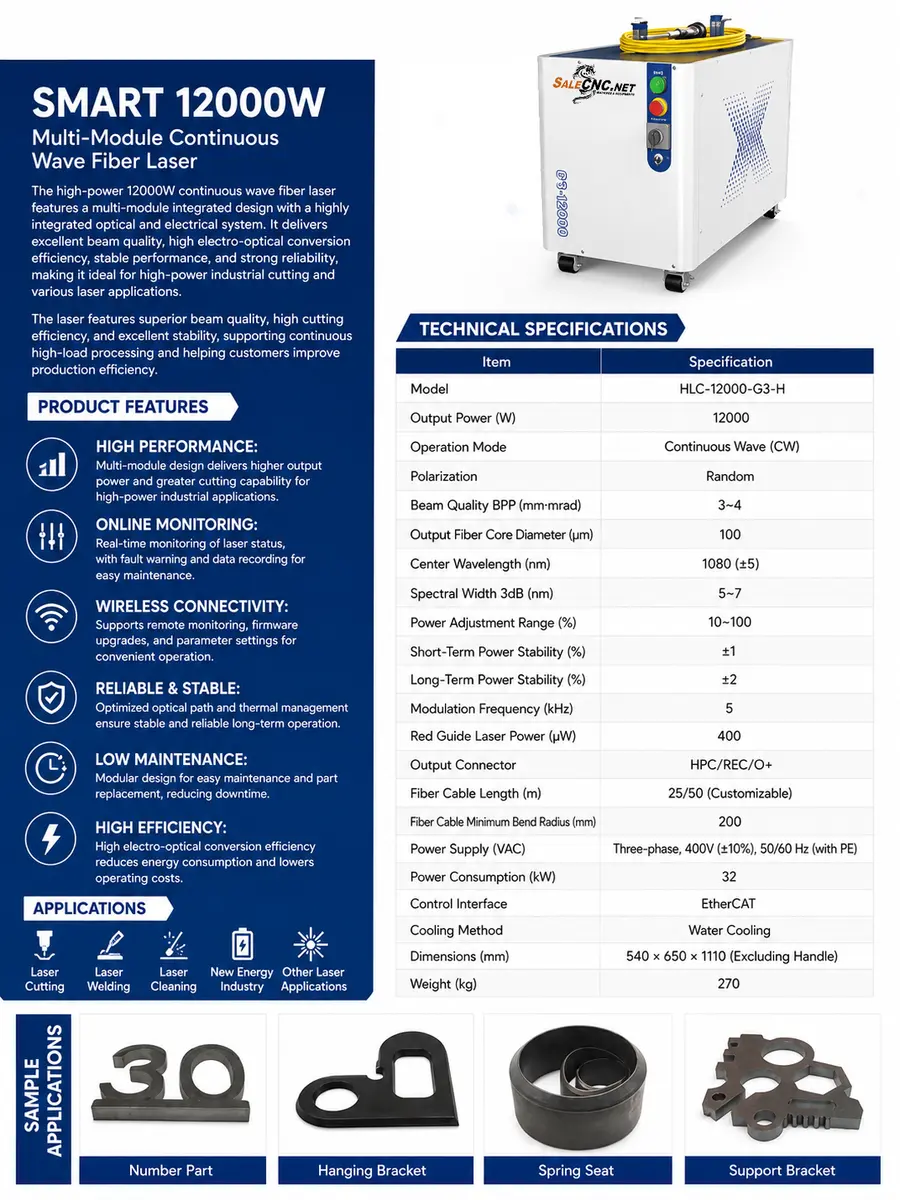

Professional Datasheet Version
HLC-12000-G3-H Fiber Laser Source Specifications
- Output Power: 12,000 W
- Operating Mode: Continuous Wave (CW) / Modulated
- Polarization: Random
- Beam Quality (BPP): 3–4 mm·mrad
- Output Fiber Core Diameter: 100 μm
- Center Wavelength: 1080 ±5 nm
- Spectral Bandwidth (3 dB): 5–7 nm
- Power Adjustment Range: 10–100%
- Short-Term Power Stability: ±1%
- Long-Term Power Stability: ±2%
- Modulation Frequency: 5 kHz
- Red Guide Laser Power: 400 μW
- Output Connector: HPC / HBC / Q+
- Fiber Cable Length: 25 m / 30 m (Customizable)
- Minimum Fiber Bend Radius: 200 mm
- Input Voltage: 3-Phase, 4-Wire, 400 V (±40 V), 50/60 Hz (with PE)
- Power Consumption: 32 kW
- Control Interface: EtherCAT
- Cooling Method: Water Cooling
- Dimensions: 540 × 650 × 1110 mm (Excluding Wheels)
- Weight: 270 kg
