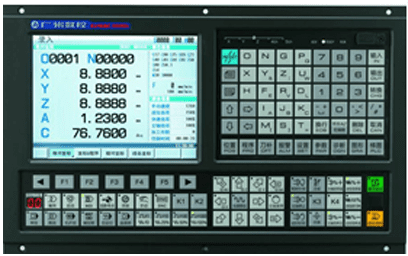

Sell GSK980MDc 3 axis (options: 4 axis, 5 axis)
GSK980MDc is GSK980MDa upgrade,3 axis (options: 4 axis, 5 axis) , with horizontal, vertical and separate
three structures. Using 8.4 “color LCD, support the ladder online monitoring, the new on-line
drilling CAM, online programming guide, plane milling automatic programming function Support
I / O unit expansion, adaptable disc magazine and hats style magazine, machining centers and
special machine tools to meet the needs of high cost GSK980MDc series is universal machining center
, the best partner CNC milling machine, drilling machine!
Features
5 5-axis linkage control
Minimum control precision 0.1μm, the maximum moving speed 60m / min
Standard GS2000T-N series of strong overload servo unit, servo motor position feedback using the 5000 line encoder
Servo spindle adapter enables spindle orientation, rigid tapping, cylindrical interpolation and indexing tables Control
Built-in PLC, ladder line display, real-time monitoring, support for I / O expansion unit, adaptable disc magazine and hats
Bored with online CAM, online programming guide, plane milling automatic programming functions, programming easy and fast
MDI multi-block execution
Support 54 workpiece coordinate system, available in 12 and 23 kinds of fixed cycle instruction combined cycle instruction
40M program memory space, 10,000 part program, support U disk program processing and serial communication DNC processing
6 operating rights management, 32 limit stop setting
8.4-inch TFT LCD, supports Chinese, English, Russian and other languages display
Panel size, electrical interface, command systems are compatible with GSK980MDa, hole size slightly different
