Fiber Laser

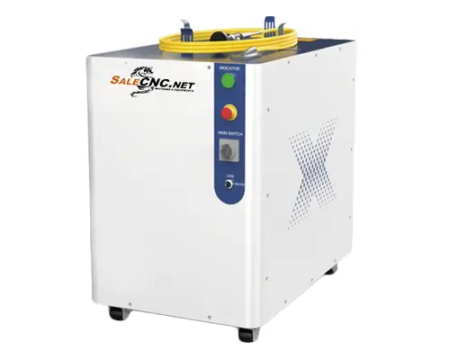

HPFL- Smart 30000W Multi-module
Laser Source Specification (English Translation)
| Item | Specification |
|---|---|
| Model | HLC-30000-G3-H |
| Output Power | 30,000 W |
| Operating Mode | Continuous / Modulated |
| Polarization | Random |
| Beam Quality (BPP) | 3–4 mm·mrad |
| Output Fiber Core Diameter | 100 μm |
| Center Wavelength | 1080 ± 5 nm |
| Spectral Bandwidth (3 dB) | 5–7 nm |
| Power Adjustment Range | 10–100% |
| Short-Term Power Stability | ±1% |
| Long-Term Power Stability | ±2% |
| Modulation Frequency | 5 kHz |
| Red Guide Laser Power | 400 μW |
| Output Connector | HPC / HBC / Q+ |
| Optical Fiber Cable Length | 25 m / 30 m (Customizable) |
| Minimum Fiber Bending Radius | 200 mm |
| Operating Voltage | 3-Phase, 4-Wire, 400 V (±40 V), 50/60 Hz (with PE) |
| Power Consumption | 79 kW |
| Control Interface | EtherCAT |
| Cooling Method | Water Cooling |
| Machine Dimensions | 720 × 920 × 1160 mm (excluding casters) |
| Machine Weight | 680 kg |
