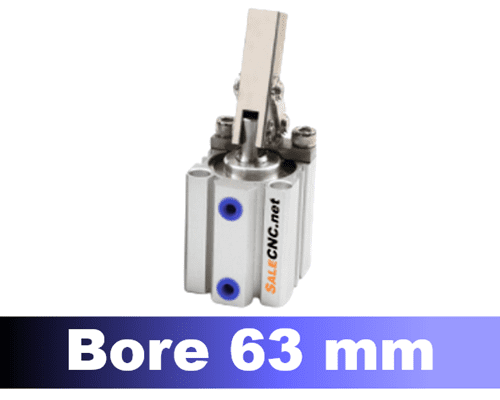

ALC cylinder clamping lever arm cylinder
Bore 63mm ALC 63x35mm
Products work fine, quality excellent warranty. สินค้าใช้งานได้ดี และคุณภาพสูง
สเปค (Specification)
| Bore | Inlet thread | Stroke (mm) | Strength (kgf) | Opening angle of pressure arm |
|---|---|---|---|---|
| 25 | M5x0.8 | 20 | 15 | 85° |
| 32 | 1/8 (1 point) | 23 | 25 | 67° |
| 40 | 1/8 (1 point) | 25 | 44 | 72° |
| 50 | 1/4 (2 points) | 30 | 71 | 78° |
| 63 | 1/4 (2 points) | 35 | 136 | 66° |
| 80 | 3/8 (3 points) | – | 190 | 60° |
| 100 | 3/8 (3 points) | – | 290 | 60° |
ส่วนประกอบของ ALC cylinder clamping lever
JLC without magnet / ALC size chart
| Bore | A | B | C | D | E | F | G | L | N | P | R | S | T | U | V | W | X | Z |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 25 | 41 | 40 | 28 | 42 | 50 | 25 | 8 | 45 | 14 | M5x0.8 | 85° | 67 | Ø4.6 | 8.6 | 7 | M6x1.0 | 15 | 100 |
| 32 | 49.5 | 44 | 34 | 50 | 60 | 30 | 9 | 53 | 16 | PT1/8 | 67° | 78 | Ø4.6 | 8.6 | 7 | M6x1.0 | 16 | 119 |
| 40 | 51 | 52 | 40 | 58.5 | 65 | 32 | 10 | 58 | 16 | PT1/8 | 72° | 82.5 | Ø6.5 | 10.5 | 7.5 | M8x1.25 | 20 | 125 |
| 50 | 58 | 62 | 48 | 71.5 | 75 | 35 | 10 | 66 | 20 | PT1/4 | 78° | 97.5 | Ø6.5 | 11 | 8.5 | M8x1.25 | 25 | 145.5 |
| 63 | 72 | 75 | 60 | 84.5 | 85 | 38.5 | 12 | 76 | 22 | PT1/4 | 66° | 115.5 | Ø6.5 | 11 | 8.5 | M8x1.25 | 25 | 165.5 |
| 80 | 81 | 94 | 74 | 104 | 105 | 47 | 14.5 | 94 | 22 | PT3/8 | 60° | 137 | Ø9.2 | 14 | 10.5 | M12x1.75 | 25 | 196 |
| 100 | 91 | 114 | 90 | 124 | 125 | 55 | 20.5 | 110 | 25 | PT3/8 | 60° | 159 | Ø11.3 | 18 | 13 | M14x2 | 30 | 230 |
JLC magnetic / JGL size chart
| Bore | A | B | C | D | E | F | G | L | N | P | R | S | T | U | V | W | X | Z |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 25 | 51 | 40 | 28 | 42 | 50 | 25 | 8 | 45 | 14 | M5x0.8 | 85° | 77 | Ø4.6 | 8.6 | 7 | M6x1.0 | 15 | 110 |
| 32 | 54.5 | 44 | 34 | 50 | 60 | 30 | 9 | 53 | 16 | PT1/8 | 67° | 83.5 | Ø4.6 | 8.6 | 7 | M6x1.0 | 16 | 125 |
| 40 | 61 | 52 | 40 | 58.5 | 65 | 32 | 10 | 58 | 16 | PT1/8 | 72° | 92.5 | Ø6.5 | 10.5 | 7.5 | M8x1.25 | 20 | 135 |
| 50 | 68 | 62 | 48 | 71.5 | 75 | 35 | 10 | 66 | 20 | PT1/4 | 78° | 107.5 | Ø6.5 | 11 | 8.5 | M8x1.25 | 25 | 155.5 |
| 63 | 77 | 75 | 60 | 84.5 | 85 | 38.5 | 12 | 76 | 22 | PT1/4 | 66° | 121.5 | Ø6.5 | 11 | 8.5 | M8x1.25 | 25 | 175.5 |
| 80 | 91 | 94 | 74 | 104 | 105 | 47 | 14.5 | 94 | 22 | PT3/8 | 60° | 147 | Ø9.2 | 14 | 10.5 | M12x1.75 | 25 | 206 |
| 100 | 101 | 114 | 90 | 124 | 125 | 55 | 20.5 | 110 | 25 | PT3/8 | 60° | 169 | Ø11.3 | 18 | 13 | M14x2 | 30 | 240 |
