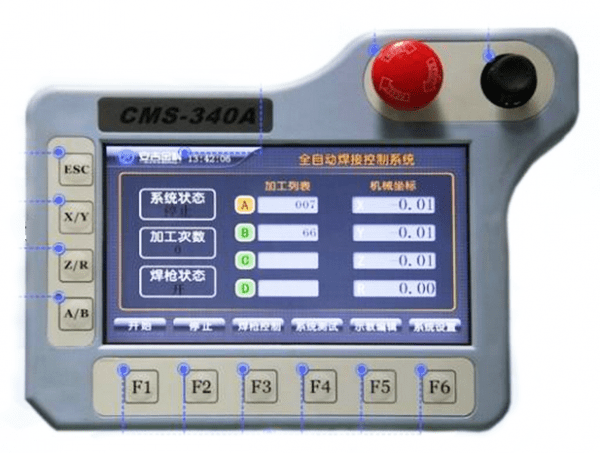

Sell  4-6 axis Welding Controller CNC

The product is the most advanced robot control system for right-angle robot and research and development, the main sales of two-axis / three-axis / four-axis / five-axis / six-axis control system to provide Chinese and English switching function.

Electronic touch screen, multi-axis control, comes with analog output function (0-10V two output)

4.4

3.4



Control system parameters

  • Number of motor shafts:  4 axes, 6 axes
  • Motor type:  stepper motor, incremental servo motor, absolute value of the servo motor
  • Pulse frequency:  2000K
  • IO input:  24 “NPN open collector” (optocoupler isolation)
  • IO output:  16 “NPN open collector” (optocoupler isolation)
  • Display:  7-inch resistive touch screen
  • Storage capacity:  8M electronic hard drive + SD card expansion
  • Operation:  key + joystick + touch screen
  • Control voltage:  DC12-24V
  • Operating temperature:  -20 to 50 ° C

Control system function

  1. Using teaching programming, programming is convenient and flexible, easy to learn and use
  2. You can edit any trajectory in space
  3. The IO port can be edited and defined
  4. There are four groups of switches, different start switches can call different programs

5.4 Group start switch has a reservation function, reducing the operation waiting time

  1. There are welding-specific IO port, in the run track automatically open the torch, greatly reducing the programming time
  2. Teaching position using rocker operation, speed stepless transformation, teaching location is very convenient
  3. With gunpoint automatic compensation function, just teach two points, the gun tip can automatically compensate
  4. Have “reference point function”, replace the welding gun or replace the fixture only need to modify the reference point without re-programming
  5. Support arc test, arc automatic stop function

      Note: The welder is required to have a successful arc signal or an optional arc detection sensor

  1. Different track speed can be set separately to facilitate the adjustment of the welding process
  2. Different traces of welding current, voltage can be set separately
  3. Weld gun welding function, welding width and length can be set
