Description

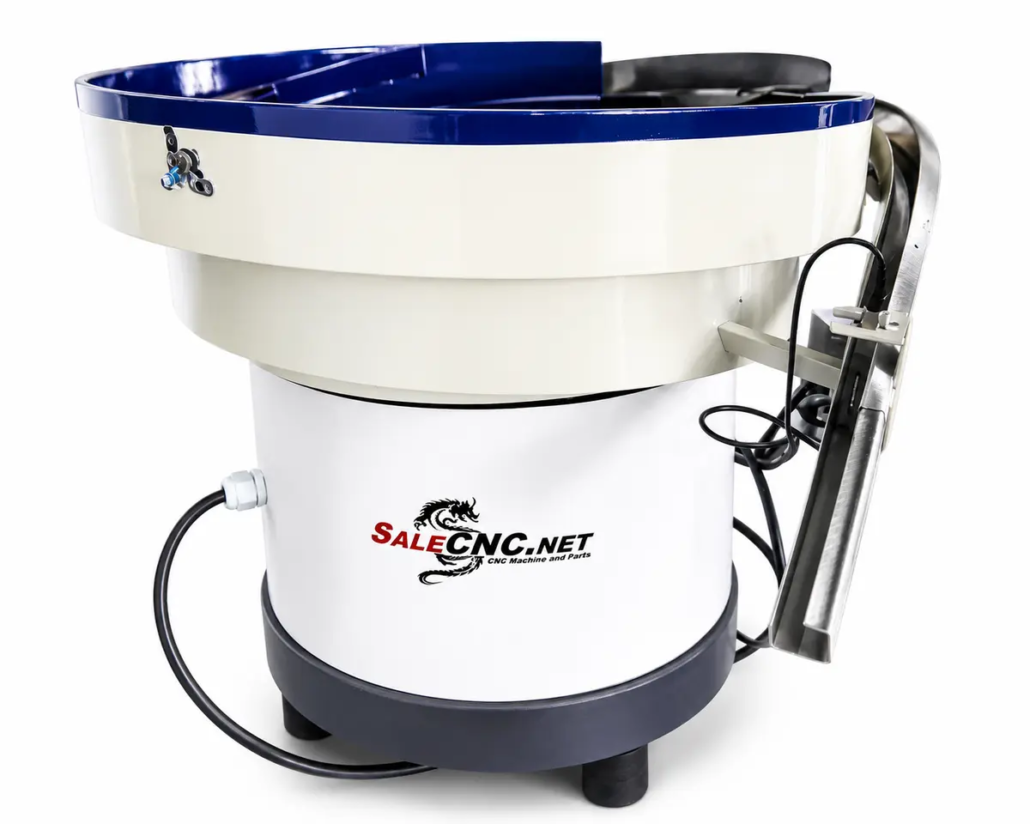

Vibratory Feeder Machine 400D

(CCW, CW)

The Feeder Machine 400D is a vibratory part feeding and orienting system designed for industrial applications. It supports both Counter-Clockwise (CCW) and Clockwise (CW) operation, significantly enhancing efficiency in automated production lines.

Feeder Machine 400D

Part Feeder / Vibratory Feeder

The Feeder Machine Model 400D is a vibratory feeder designed to optimize industrial manufacturing processes. It precisely aligns, feeds, and delivers parts to the production line continuously, accurately, and consistently. It supports both CW (Clockwise) and CCW (Counter-Clockwise) rotation, allowing for seamless integration with existing machinery.

Key Features

• Supports both CW / CCW operation, selectable feed direction to match production system requirements.
• Handles a maximum total part weight of 20 kg per feed cycle.
• Stable vibration system ensures consistent, non-impact part feeding.
• Increases production speed and reduces labor requirements.
• Ideal for automated part sorting, feeding, and dispensing applications.
• Robust construction designed for continuous operation in industrial environments.
• Easy maintenance with readily available spare parts.

Operating Principle of Feeder Machine

A Feeder Machine functions to convey or control the feeding of raw materials as specified. It can operate in fully automatic or semi-automatic modes, depending on the specific machine type.

General Operating Process of a Feeder Machine

1. Material Reception

   • Raw materials are loaded into the machine (e.g., into a hopper or storage bin).

2. Feed Rate Control

   • The machine regulates the feed rate to synchronize with the subsequent process.
   • Sensors may be employed for level and weight monitoring.

3. Material Conveyance to Destination

   • Various methods are utilized, including Vibration, Screw, Belt, or Rotary (Paddle) mechanisms.
   • Conveyance direction and speed are controlled.

4. Material Delivery to Production Process

   • Once the specified quantity is reached, materials are dispensed to the next machine or process, such as cutting, printing, packaging, or molding machines.

The Feeder Machine 400D is a vibratory part feeding machine suitable for industrial facilities requiring precision and continuous production. The machine features a diameter of 400 mm and supports both CCW and CW rotation.

It can function as a part sorter, feeder, and vibratory orienter for components such as screws, nuts, metal parts, and plastic components. Its robust construction, utilizing high-quality materials, ensures long-term durability.

The Feeder Machine 400D is ideal for automated production lines, contributing to reduced labor costs, increased speed, and enhanced process consistency.

Example operations of various Feeder Machine types:

✅ Vibratory Feeder

• Utilizes vibration to move materials forward.
• Suitable for plastic pellets, chemical powders, and small metal parts.

✅ Belt Feeder

• Employs a moving belt for material conveyance.
• Used in mining, cement, and food industries.

✅ Screw Feeder

• Uses a rotating screw for precise material feeding.
• Ideal for granular solids such as flour, cement, and animal feed.

✅ Rotary Feeder

• Features rotating paddles to control flow rate.
• Used in material feeding systems requiring pressure, such as cement plants.

Advantages of Feeder Machine
✔ Reduces errors in material feeding.
✔ Offers precise feed rate control exceeding manual labor.
✔ Enhances production efficiency and minimizes waste.

Please inform us if you have an existing Feeder Machine or require assistance in selecting the appropriate type. 😃
