Model: TWG-75	Machine Specifications
Motor Power	4 KW. (4 Pole Motor)
Voltage	380 VAC 50 Hz (3 Phase)
Bendable Steel Pipe Diameter	76 mm. (3 inches) Maximum Wall Thickness: 2-3 mm.
Bending Angle Range	5 – 180 Degrees
Bend Position Memory	9 Positions
Weight	630 KG.
Machine Dimensions	940 x 750 x 850 mm
Motor spindle speed	3-5 rpm
For more details, please contact: Tel. 082-9729329 (Mee)

Model	TWG-25	TWG-38	TWG-50	TWG-75	TWG-75 Hi-Speed
Motor Power	2.2 Kw	2.2 Kw (6 Pole Motor)	3 Kw	4 KW.(4 Pole Motor)	4 KW.(4 Pole Motor)
Voltage	380 VAC 50 Hz (3 Phase)
Bendable Steel Pipe Diameter	10-26 mm. (0.4 – 1.02 inches) Maximum Wall Thickness: 2 mm.	16-38 mm. (0.5 – 1.5 inches) Maximum Wall Thickness: 3 mm.	16-51 mm. (0.5 – 2 inches) Maximum Wall Thickness: 3 mm.	76 mm. (3 inches) Maximum Wall Thickness: 2-3 mm.	76 mm. (3 inches) Maximum Wall Thickness: 2-3 mm.
Bending Angle	5 – 180 Degrees
Bend Position Memory	10 Positions	9 Positions
Weight	180 KG.	230 KG.	310 KG.	630 KG.	630 KG.
Machine Dimensions	800 x 650 x 900 mm	900 x 800 x 850 mm	930 x 680 x 850 mm	940 x 750 x 850 mm	940 x 750 x 850 mm
Other					Hi-Speed : 3-5 rpm (Motor spindle speed)

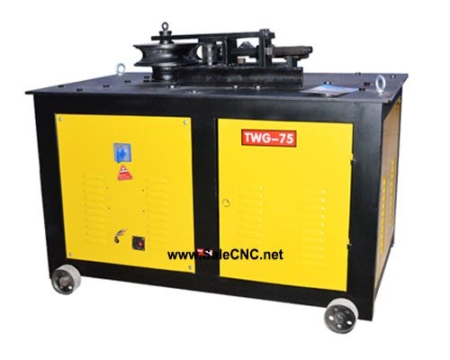

TWG-75 HI-SPEED Automatic Pipe Bending Machine

Description
