Description

Stainless 304 Conveyor

Conveyor Belt – Stainless Steel 304 Type, Flat Panel

Steel Structure (Fixed Height Legs)

• Mesh belt conveyor for material handling.
• Electric motor driven with adjustable speed control.
• Facilitates easy material transport and sorting; simple installation and operation.
• Standard machine height: 75 cm (fixed).
• Product load capacity on conveyor: Approximately 40 kg.
• Temperature resistance: -50 to +200 degrees Celsius.

Mesh Belt is a type of conveyor belt constructed from wires or fibers interconnected in a mesh pattern, allowing for easy passage of air or liquids. This type of belt is commonly used in applications requiring ventilation or cooling, as well as for material transport in various industries, particularly in baking or heating processes.

Features and Applications of Mesh Belts:

1. Excellent Ventilation: The mesh structure with gaps between wires ensures effective air and heat circulation.
2. High Temperature Resistance: Mesh belts are ideal for high-temperature applications such as food drying or material baking.
3. Diverse Materials: Can be manufactured from various materials including stainless steel, plated steel, or corrosion-resistant alloys.
4. Industrial Applications: Widely used in the food industry (drying, baking), chemical industry, component manufacturing, and assembly lines requiring air flow.

Product Examples:

Inverter Motor with speed ratio adjustment (30-40 meters/minute) – Additional Cost: 7500 THB

• Conveyor Belt PVC 500x1000x750 mm
• Speed: 40 m/min; Adjustable Legs: 100 mm.
• Total belt load capacity: 3 Kg.
• Price: 32,000 THB

• Conveyor Belt PVC 500x1500x750 mm
• Speed: 40 m/min; Adjustable Legs: 100 mm.
• Total belt load capacity: 3 Kg.

• Conveyor Belt PU, Stainless Steel Structure: 400x1500x800 mm
• Speed: 8-13 m/min; Adjustable Legs: 100 mm.
• Total belt load capacity: 30 Kg.

• Conveyor Belt PVC, Aluminum Profile Structure: 300×1500 mm
• Speed: 8-13 m/min; Adjustable Legs.
• Total belt load capacity: 20 Kg.

• Conveyor Belt PU, Aluminum Profile Structure: 500×4500 mm
• Speed: 8-13 m/min; Adjustable Legs.
• Total belt load capacity: 30 Kg.

• Conveyor Belt PVC, Aluminum Profile Structure: 300×6000 mm
• Speed: 8-13 m/min; Adjustable Legs.
• Total belt load capacity: 30 Kg.

• Conveyor Belt PU, Stainless Steel 304 Structure + Stainless Steel 304 Table: 500×3000 mm
• Speed: 3-5 m/min; Adjustable Legs.
• Total belt load capacity: 30 Kg.

• Conveyor Belt PU, Stainless Steel Structure + Stainless Steel 304 Table: 400×3000 mm
• Speed: 3-5 m/min; Adjustable Legs.
• Total belt load capacity: 30 Kg.

• Conveyor Belt PU, Stainless Steel 304 Structure: 500×1500 mm
• Speed: 8-13 m/min; Adjustable Legs.
• Total belt load capacity: 30 Kg.

• Conveyor Belt Stainless Steel 304, Steel Structure
• Speed: 3-5 m/min; Adjustable Legs.
• Total belt load capacity: 30 Kg.

• Conveyor Belt PVC 300x1500x750 mm
• Conveyor Belt PVC 300x1000x750 mm
• Conveyor Belt PVC 300x1200x300 mm
• Speed: 8-13 m/min
• Weight: 2-3 kg.

• Conveyor Belt PVC, Aluminum Profile Structure: 300×1500 mm
• Speed: 8-13 m/min; Adjustable Legs.
• Total belt load capacity: 30 Kg.

• Conveyor Mesh Belt Stainless Steel 304, Stainless Steel 304 Structure: 600×1000 mm
• Speed: 3-5 m/min; Adjustable Legs.
• Total belt load capacity: 40 Kg.

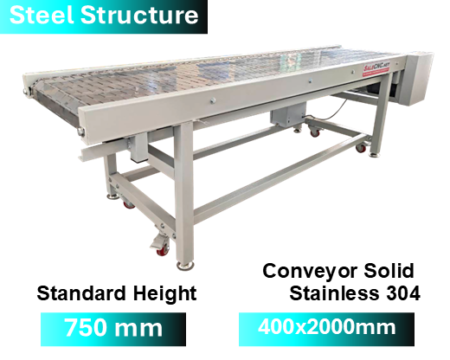

• Conveyor Stainless Steel 304, Steel Structure
• Speed: 3-5 m/min; Height: 750 mm.
• Total belt load capacity: 40 Kg.

Conveyor Belt PVC Speed Specifications

England

Thai

Product on conveyor approximately 30 kg

• Standard motor: 120W. Optional motors available: 200W, 400W, 600W.

Differences Between PVC, PU, and Stainless Steel Conveyor Belts

1. Materials and Properties
   • PVC (Polyvinyl Chloride)
     ✅ Flexible and offers moderate chemical resistance.
     ✅ More economical than PU and stainless steel.
     ✅ Suitable for general applications like packaging or transporting non-oily/greasy materials.
     ❌ Not resistant to high temperatures; may wear out faster than PU.
   • PU (Polyurethane)
     ✅ Superior resistance to oils, grease, and chemicals compared to PVC.
     ✅ Smoother surface, ideal for food and pharmaceutical industries.
     ✅ More resistant to tearing and offers longer service life than PVC.
     ❌ Higher cost than PVC.
   • Stainless Steel
     ✅ High strength, resistant to impact and abrasion.
     ✅ Suitable for industries requiring high hygiene standards, such as food and beverage production.
     ✅ Resistant to high temperatures and chemicals.
     ❌ High cost and potentially heavier weight.
2. Suitable Applications
   • PVC → General goods transport, e.g., packaging, electronics.
   • PU → Food and pharmaceutical industries, applications involving oil or grease contact.
   • Stainless Steel → High-hygiene applications, or environments with high heat or humidity, e.g., food and beverage processing plants, heavy industry.
