Description

Conveyor Belt 201 Mesh

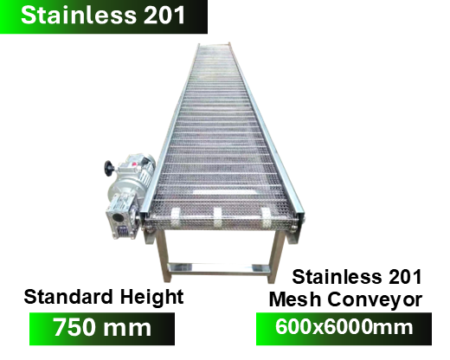

Stainless Steel 201 Mesh Conveyor Belt

Stainless Steel 201 Construction (Non-Adjustable Height Legs)

• Mesh type conveyor belt for material handling.
• Equipped with an electric motor for adjustable flow speed.
• Facilitates easy material transfer and item arrangement; simple to install and operate.
• Standard machine height: 75 cm (non-adjustable).
• Product on conveyor capacity: Approximately 40 kg.
• Temperature resistance: -50 to +200 degrees Celsius.

Mesh Belt is a type of conveyor belt constructed from interconnected wires or fibers forming a mesh pattern, allowing for easy passage of air or liquids. This type of belt is commonly used in applications requiring ventilation or cooling, as well as for material transport in various industries, particularly in baking or heating processes.

Features and Applications of Mesh Belts:

1. Excellent Ventilation: The mesh structure provides gaps between wires, ensuring efficient airflow and cooling.
2. High-Temperature Resistance: Mesh belts are often employed in processes involving baking or heating, such as food drying or material baking.
3. Diverse Materials: Mesh belts can be manufactured from various materials including stainless steel, plated steel, or corrosion-resistant alloys.
4. Industrial Applications: Frequently utilized in the food industry (drying/baking), chemical industry, component manufacturing, and assembly lines requiring air circulation.

Example Products:

Inverter Motor: Motor Speed Ratio 30-40 meters/minute. Additional cost: 7500 Baht.

• Conveyor Belt PVC 500x1000x750 mm
• Speed: 40 m/min; Adjustable Legs: 100 mm.
• Total belt load capacity: 3 Kg.
• Price: 32,000 Baht.

• Conveyor Belt PVC 500x1500x750 mm
• Speed: 40 m/min; Adjustable Legs: 100 mm.
• Total belt load capacity: 3 Kg.

• Conveyor Belt PU with Stainless Steel Frame: 400x1500x800 mm
• Speed: 8-13 m/min; Adjustable Legs: 100 mm.
• Total belt load capacity: 30 Kg.

• Conveyor Belt PVC with Aluminum Profile Frame: 300×1500 mm
• Speed: 8-13 m/min; Adjustable Legs.
• Total belt load capacity: 20 Kg.

• Conveyor Belt PU with Aluminum Profile Frame: 500×4500 mm
• Speed: 8-13 m/min; Adjustable Legs.
• Total belt load capacity: 30 Kg.

• Conveyor Belt PVC with Aluminum Profile Frame: 300×6000 mm
• Speed: 8-13 m/min; Adjustable Legs.
• Total belt load capacity: 30 Kg.

• Conveyor Belt PU with Stainless Steel 304 Frame and Table: 500×3000 mm
• Speed: 3-5 m/min; Adjustable Legs.
• Total belt load capacity: 30 Kg.

• Conveyor Belt PU with Stainless Steel 304 Frame and Table: 400×3000 mm
• Speed: 3-5 m/min; Adjustable Legs.
• Total belt load capacity: 30 Kg.

• Conveyor Belt PU with Stainless Steel 304 Frame: 500×1500 mm
• Speed: 8-13 m/min; Adjustable Legs.
• Total belt load capacity: 30 Kg.

• Steel Structure Stainless 304 Conveyor Solid

• Speed: 3-5 m/min; Adjustable Legs.
• Total belt load capacity: 40 Kg.

• Conveyor Belt PVC 300x1500x750 mm
• Conveyor Belt PVC 300x1000x750 mm
• Conveyor Belt PVC 300x1200x300 mm
• Speed: 8-13 m/min
• Weight: 2-3 kg.

•
• Conveyor Belt PVC with Aluminum Profile Frame: 300×1500 mm
• Speed: 8-13 m/min; Adjustable Legs.
• Total belt load capacity: 30 Kg.

• Stainless Steel 304 Mesh Conveyor with Stainless Steel 304 Frame: 600×1000 mm
• Speed: 3-5 m/min; Adjustable Legs.
• Total belt load capacity: 40 Kg.

Conveyor Belt PVC Speed Specifications

England

ภาษาไทย

Product on conveyor capacity: Approximately 30 kg.

• Standard motor: 120W. Optional motors available: 200W, 400W, 600W.

Differences Between PVC, PU, and Stainless Steel Conveyor Belts

1. Materials and Properties

   • PVC (Polyvinyl Chloride)
     ✅ Flexible and offers moderate chemical resistance.
     ✅ More economical than PU and stainless steel.
     ✅ Suitable for general applications such as packaging or transporting materials without oil or grease.
     ❌ Not resistant to high temperatures and may wear out faster than PU.

   • PU (Polyurethane)
     ✅ Better resistance to grease, oil, and chemicals compared to PVC.
     ✅ Smoother surface, ideal for food and pharmaceutical industries.
     ✅ More tear-resistant and longer lifespan than PVC.
     ❌ Higher cost than PVC.

   • Stainless Steel
     ✅ High strength, resistant to impact and abrasion.
     ✅ Suitable for industries requiring high hygiene standards, such as food and beverage production.
     ✅ Resistant to high temperatures and chemicals.
     ❌ Higher cost and potentially heavier.

2. Suitable Applications

   • PVC → General goods transportation, such as packaging and electronics.
   • PU → Food and pharmaceutical industries, and applications involving contact with oil or grease.
   • Stainless Steel → Applications requiring high hygiene standards or operating in environments with high heat or humidity, such as food and beverage processing plants and heavy industrial settings.
