Description

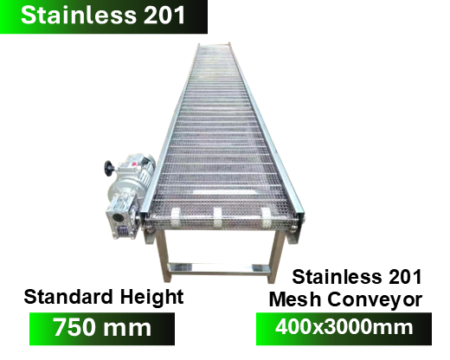

Conveyor Belt 201 Mesh

Material: Stainless Steel 201 (Legs are not height-adjustable)

• Conveyor belt for material handling, mesh type.
• Electric motor driven with adjustable speed control.
• Facilitates material transfer and transportation; easy to install and operate.
• Standard height: 75 cm. (non-adjustable).
• Product load capacity on conveyor: approximately 40 kg.
• Temperature resistance: -50 to +200 degrees Celsius.

Mesh Belts are constructed from interconnected wires or fibers forming a mesh pattern, allowing for easy airflow or liquid passage. This type of belt is commonly used in applications requiring ventilation or cooling, as well as for material transport across various industries, particularly in baking and heating processes.

Mesh Belt Features and Applications:

1. Excellent Airflow: The mesh structure provides gaps between wires, enhancing ventilation and heat dissipation efficiency.
2. High-Temperature Resistance: Mesh belts are frequently employed in high-temperature processes such as drying or baking of food and materials.
3. Diverse Materials: Available in various materials including stainless steel, plated steel, or corrosion-resistant alloys.
4. Industrial Applications: Widely used in the food industry (drying, baking), chemical processing, component manufacturing, and assembly lines requiring air circulation.

Example Products:

Motor with Inverter Speed Control: Speed ratio 30-40 meters/minute. Additional cost: 7500 THB.

• Conveyor Belt PVC: 500x1000x750 mm
• Speed: 40 m/min; Adjustable legs: 100 mm.
• Total load capacity: 3 Kg.
• Price: 32,000 THB.

• Conveyor Belt PVC: 500x1500x750 mm
• Speed: 40 m/min; Adjustable legs: 100 mm.
• Total load capacity: 3 Kg.

• Conveyor Belt PU with Stainless Steel Frame: 400x1500x800 mm
• Speed: 8-13 m/min; Adjustable legs: 100 mm.
• Total load capacity: 30 Kg.

• Conveyor Belt PVC with Aluminum Profile Frame: 300×1500 mm
• Speed: 8-13 m/min; Adjustable legs.
• Total load capacity: 20 Kg.

• Conveyor Belt PU with Aluminum Profile Frame: 500×4500 mm
• Speed: 8-13 m/min; Adjustable legs.
• Total load capacity: 30 Kg.

• Conveyor Belt PVC with Aluminum Profile Frame: 300×6000 mm
• Speed: 8-13 m/min; Adjustable legs.
• Total load capacity: 30 Kg.

• Conveyor Belt PU with Stainless Steel 304 Frame + Stainless Steel 304 Table: 500×3000 mm
• Speed: 3-5 m/min; Adjustable legs.
• Total load capacity: 30 Kg.

• Conveyor Belt PU with Stainless Steel 304 Frame + Stainless Steel 304 Table: 400×3000 mm
• Speed: 3-5 m/min; Adjustable legs.
• Total load capacity: 30 Kg.

• Conveyor Belt PU with Stainless Steel 304 Frame: 500×1500 mm
• Speed: 8-13 m/min; Adjustable legs.
• Total load capacity: 30 Kg.

• Steel Structure Stainless 304 Conveyor Solid
• Speed: 3-5 m/min; Adjustable legs.
• Total load capacity: 40 Kg.

• Conveyor Belt PVC: 300x1500x750 mm
• Conveyor Belt PVC: 300x1000x750 mm
• Conveyor Belt PVC: 300x1200x300 mm
• Speed: 8-13 m/min
• Weight capacity: 2-3 kg.

•
• Conveyor Belt PVC with Aluminum Profile Frame: 300×1500 mm
• Speed: 8-13 m/min; Adjustable legs.
• Total load capacity: 30 Kg.

• Conveyor Mesh Belt Stainless Steel 304 with Stainless Steel 304 Frame: 600×1000 mm
• Speed: 3-5 m/min; Adjustable legs.
• Total load capacity: 40 Kg.

Conveyor Belt PVC Speed Specifications:

English

Thai

https://youtu.be/nlWc4jRPjM0?si=pLIe53J2EObnbE1w

Product on conveyor: approximately 30 kg.

• Standard motor: 120W. Optional motors: 200W, 400W, 600W.

Differences between PVC, PU, and Stainless Steel Conveyor Belts

1. Materials and Properties

   • PVC (Polyvinyl Chloride)
     ✅ Flexible and offers moderate chemical resistance.
     ✅ More cost-effective than PU and stainless steel.
     ✅ Suitable for general applications such as packaging or transporting materials free of oil and grease.
     ❌ Not resistant to high temperatures and may wear faster than PU.
   • PU (Polyurethane)
     ✅ Superior resistance to oils, fats, and chemicals compared to PVC.
     ✅ Smoother surface finish, ideal for food and pharmaceutical industries.
     ✅ Higher resistance to tearing and longer service life than PVC.
     ❌ Higher cost than PVC.
   • Stainless Steel
     ✅ High strength, resistant to impact and abrasion.
     ✅ Suitable for industries requiring high hygiene standards, such as food and beverage production.
     ✅ Resistant to high temperatures and chemicals.
     ❌ Higher cost and potentially greater weight.

2. Suitable Applications

   • PVC → General material transport, such as packaging and electronics.
   • PU → Food, pharmaceutical, and applications involving contact with oils or fats.
   • Stainless Steel → High-hygiene applications or environments with high heat or humidity, including food and beverage manufacturing and heavy industrial sectors.
