Description

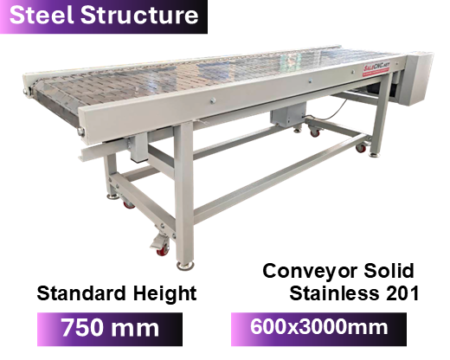

Stainless 201 Conveyor

Conveyor Belt – Stainless Steel 201, Flat Type

Steel Structure (Non-adjustable height legs)

• Conveyor belt for material handling.
• Electric motor driven, with adjustable speed control.
• Facilitates easy material transport and sorting; simple installation and operation.
• Standard machine height: 75 cm (non-adjustable).
• Product load capacity on conveyor: approximately 40 kg.
• Temperature resistance: -50 to +200 degrees Celsius.

Mesh Belt is a type of conveyor belt constructed from interconnected wires or fibers forming a mesh pattern, allowing for easy airflow or liquid passage. This type of belt is commonly used in applications requiring ventilation or cooling, as well as for material transport in various industries, particularly in baking or heating processes.

Mesh Belt Features and Applications:

1. Excellent Ventilation: The mesh structure, with its gaps between wires, ensures efficient airflow and heat dissipation.
2. High Temperature Resistance: Mesh belts are typically employed in applications involving baking or heating, such as drying or curing food products and materials.
3. Diverse Materials: Mesh belts can be manufactured from various materials including stainless steel, plated steel, or corrosion-resistant alloys.
4. Industrial Applications: Frequently utilized in the food industry (drying/baking), chemical processing, component manufacturing, and assembly lines requiring air circulation.

Example Products:

Inverter Motor – Speed Ratio 30-40 meters/minute. Additional Cost: 7500 Baht.

• Conveyor Belt PVC, 500x1000x750 mm
• Speed: 40 m/min, Adjustable leg height: 100 mm.
• Total belt load capacity: 3 kg.
• Price: 32,000 Baht.

• Conveyor Belt PVC, 500x1500x750 mm
• Speed: 40 m/min, Adjustable leg height: 100 mm.
• Total belt load capacity: 3 kg.

• Conveyor Belt PU, Stainless Steel Frame: 400x1500x800 mm
• Speed: 8-13 m/min, Adjustable leg height: 100 mm.
• Total belt load capacity: 30 kg.

• Conveyor Belt PVC, Aluminum Profile Structure: 300×1500 mm
• Speed: 8-13 m/min, Adjustable legs.
• Total belt load capacity: 20 kg.

• Conveyor Belt PU, Aluminum Profile Structure: 500×4500 mm
• Speed: 8-13 m/min, Adjustable legs.
• Total belt load capacity: 30 kg.

• Conveyor Belt PVC, Aluminum Profile Structure: 300×6000 mm
• Speed: 8-13 m/min, Adjustable legs.
• Total belt load capacity: 30 kg.

• Conveyor Belt PU, Stainless Steel 304 Structure: 500×3000 mm + Stainless Steel 304 Table
• Speed: 3-5 m/min, Adjustable legs.
• Total belt load capacity: 30 kg.

• Conveyor Belt PU, Stainless Steel 304 Structure: 400×3000 mm + Stainless Steel 304 Table
• Speed: 3-5 m/min, Adjustable legs.
• Total belt load capacity: 30 kg.

• Conveyor Belt PU, Stainless Steel 304 Structure: 500×1500 mm
• Speed: 8-13 m/min, Adjustable legs.
• Total belt load capacity: 30 kg.

• Conveyor Belt Stainless Steel 304, Steel Structure
• Speed: 3-5 m/min, Adjustable legs.
• Total belt load capacity: 30 kg.

• Conveyor Belt PVC: 300x1500x750 mm
• Conveyor Belt PVC: 300x1000x750 mm
• Conveyor Belt PVC: 300x1200x300 mm
• Speed: 8-13 m/min
• Weight capacity: 2-3 kg.

• Conveyor Belt PVC, Aluminum Profile Structure: 300×1500 mm
• Speed: 8-13 m/min, Adjustable legs.
• Total belt load capacity: 30 kg.

• Conveyor Mesh Stainless Steel 304, Stainless Steel 304 Structure: 600×1000 mm
• Speed: 3-5 m/min, Adjustable legs.
• Total belt load capacity: 40 kg.

• Conveyor Stainless Steel 304, Steel Structure
• Speed: 3-5 m/min, Height: 750 mm.
• Total belt load capacity: 40 kg.

Conveyor Belt PVC Speed Specifications

**English**

**Thai**

Product on conveyor: approximately 30 kg.

• Standard motor: 120W. Optional motors: 200W, 400W, 600W.

Differences Between PVC, PU, and Stainless Steel Conveyor Belts

1. Material and Properties

   • PVC (Polyvinyl Chloride)
     ✅ Flexible and offers moderate chemical resistance.
     ✅ Lower cost compared to PU and stainless steel.
     ✅ Suitable for general applications like packaging or transporting materials free of oil and grease.
     ❌ Not resistant to high temperatures and may wear faster than PU.

   • PU (Polyurethane)
     ✅ Better resistance to grease, oil, and chemicals than PVC.
     ✅ Smoother surface, ideal for food and pharmaceutical industries.
     ✅ Higher tear resistance and longer service life than PVC.
     ❌ Higher cost than PVC.

   • Stainless Steel
     ✅ High strength, resistant to impact and wear.
     ✅ Suitable for industries requiring high hygiene standards, such as food and beverage processing.
     ✅ Resistant to high temperatures and chemicals.
     ❌ High cost and potentially heavy.

2. Recommended Applications

   • PVC → General goods transport, e.g., packaging, electronics.
   • PU → Food and pharmaceutical industries, or applications involving contact with oil or grease.
   • Stainless Steel → Applications requiring high hygiene or environments with high temperatures or humidity, e.g., food and beverage manufacturing, heavy industry.
