Description

Aluminum profile

Conveyor Belt PVC

Conveyor Belt PVC

Conveyor Belt – PVC Type

• PVC type conveyor belt for material transport.
• Equipped with an electric motor allowing for adjustable speed control.
• Facilitates easy material handling and transportation; simple to install and operate.
• Standard machine height: 75 cm (non-adjustable).
• Product load capacity on conveyor: approximately 30 kg.

Polyvinylchloride (PVC) Properties

• PVC exhibits excellent resistance to high temperatures, tensile strength, and is durable against cuts and punctures.
• Features high wear resistance.
• Demonstrates good resistance to oils and odors.
• Offers robust durability against abrasion.

Product Examples:

Inverter Motor Motor Speed Ratio: 30-40 meters/minute. Additional Cost: 7500 THB

• Conveyor Belt PVC: 500x1000x750 mm
• Speed: 40 m/min. Adjustable legs: 100 mm.
• Total belt load capacity: 3 Kg.

• Conveyor Belt PVC: 500x1500x750 mm
• Speed: 40 m/min. Adjustable legs: 100 mm.
• Total belt load capacity: 3 Kg.

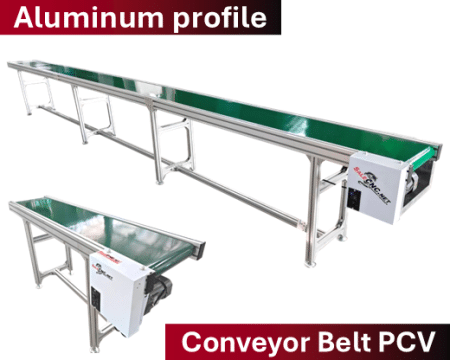

• Conveyor Belt PVC with Aluminum Profile Frame: 300×1500 mm
• Speed: 8-13 m/min. Adjustable legs.
• Total belt load capacity: 20 Kg.

• Conveyor Belt PVC with Aluminum Profile Frame: 300×6000 mm
• Speed: 8-13 m/min. Adjustable legs.
• Total belt load capacity: 30 Kg.

• Conveyor Belt PVC: 300x1500x750 mm
• Conveyor Belt PVC: 300x1000x750 mm
• Conveyor Belt PVC: 300x1200x300 mm
• Speed: 8-13 m/min
• Weight capacity: 2-3 kg.

• Conveyor Belt PVC with Aluminum Profile Frame: 300×1500 mm
• Speed: 8-13 m/min. Adjustable legs.
• Total belt load capacity: 30 Kg.

🔧 What is a PVC Conveyor Belt?

A PVC (Polyvinyl Chloride) conveyor belt is constructed from PVC material, making it suitable for light to medium industrial applications such as factory product transport, food processing, automated conveying systems, and more.

✅ Advantages of PVC Conveyor Belts:

• Lightweight and easy to install.
• Good flexibility.
• More economical compared to other belt types.
• Available in Food Grade versions for the food processing industry.
• Resistant to oils, fats, and certain chemicals.
• Operates with low noise levels.

⚠️ Precautions / Limitations:

• Not resistant to high temperatures (typical operating temperature limit is 80°C).
• Not ideal for sharp or abrasive materials, as this can lead to rapid wear.
• Has a shorter lifespan than some types of rubber conveyor belts.

🏭 Suitable Applications:

• Packaging systems.
• Warehousing / Logistics.
• Light industry.
