Description

Conveyor Belt 201 Mesh

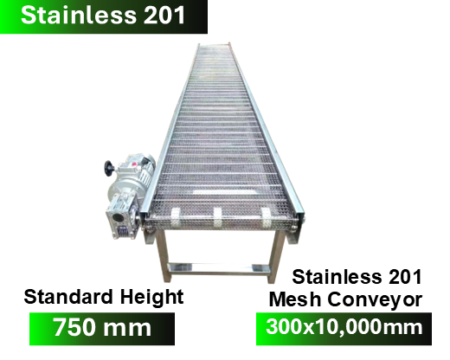

Conveyor Belt – Mesh Type Stainless Steel 201

Stainless 201 Frame (Non-adjustable Height)

• Mesh type conveyor belt for transferring items.
• Electric motor driven with adjustable flow speed.
• Facilitates material handling and sorting; easy to install and operate.
• Standard machine height: 75 cm (non-adjustable).
• Product load capacity on conveyor: approximately 40 kg.
• Temperature resistance: -50°C to +200°C.

Mesh Belt is a type of conveyor belt constructed from interconnected wires or fibers forming a mesh. This design allows for easy passage of air or liquids. Mesh belts are commonly used in applications requiring ventilation or cooling, as well as for material transport across various industries, particularly in baking or heating processes.

Mesh Belt Features and Applications:

1. Excellent Ventilation: The mesh structure provides gaps between wires, enabling efficient airflow and heat dissipation.
2. High-Temperature Resistance: Mesh belts are frequently employed in processes involving baking or heating, such as food drying or material curing.
3. Diverse Material Options: Mesh belts can be manufactured from various materials including stainless steel, plated steel, or corrosion-resistant alloys.
4. Industrial Applications: Widely used in the food industry (drying, baking), chemical processing, component manufacturing, and assembly lines where airflow is critical.

Example Products:

Inverter Motor – Speed Ratio 30-40 m/min (Additional 7500 THB)

• Conveyor Belt PVC: 500x1000x750 mm
• Speed: 40 m/min; Adjustable Legs: 100 mm
• Total belt load capacity: 3 kg.
• Price: 32,000 THB

• Conveyor Belt PVC: 500x1500x750 mm
• Speed: 40 m/min; Adjustable Legs: 100 mm
• Total belt load capacity: 3 kg.

• Conveyor Belt PU with Stainless Steel Frame: 400x1500x800 mm
• Speed: 8-13 m/min; Adjustable Legs: 100 mm
• Total belt load capacity: 30 kg.

• Conveyor Belt PVC with Aluminum Profile Frame: 300×1500 mm
• Speed: 8-13 m/min; Adjustable Legs
• Total belt load capacity: 20 kg.

• Conveyor Belt PU with Aluminum Profile Frame: 500×4500 mm
• Speed: 8-13 m/min; Adjustable Legs
• Total belt load capacity: 30 kg.

• Conveyor Belt PVC with Aluminum Profile Frame: 300×6000 mm
• Speed: 8-13 m/min; Adjustable Legs
• Total belt load capacity: 30 kg.

• Conveyor Belt PU with Stainless Steel 304 Frame & Table: 500×3000 mm
• Speed: 3-5 m/min; Adjustable Legs
• Total belt load capacity: 30 kg.

• Conveyor Belt PU with Stainless Steel 304 Frame & Table: 400×3000 mm
• Speed: 3-5 m/min; Adjustable Legs
• Total belt load capacity: 30 kg.

• Conveyor Belt PU with Stainless Steel 304 Frame: 500×1500 mm
• Speed: 8-13 m/min; Adjustable Legs
• Total belt load capacity: 30 kg.

• Steel Structure Stainless 304 Conveyor Solid

• Speed: 3-5 m/min; Adjustable Legs
• Total belt load capacity: 40 kg.

• Conveyor Belt PVC: 300x1500x750 mm
• Conveyor Belt PVC: 300x1000x750 mm
• Conveyor Belt PVC: 300x1200x300 mm
• Speed: 8-13 m/min
• Weight capacity: 2-3 kg.

•
• Conveyor Belt PVC with Aluminum Profile Frame: 300×1500 mm
• Speed: 8-13 m/min; Adjustable Legs
• Total belt load capacity: 30 kg.

• Stainless Steel Mesh Conveyor Belt (304 Frame): 600×1000 mm
• Speed: 3-5 m/min; Adjustable Legs
• Total belt load capacity: 40 kg.

Conveyor Belt PVC Speed Specifications

England

Thai

https://youtu.be/nlWc4jRPjM0?si=pLIe53J2EObnbE1w

Product load capacity on conveyor: approximately 30 kg.

• Standard motor: 120W. Optional motors available: 200W, 400W, 600W.

Differences Between PVC, PU, and Stainless Steel Conveyor Belts

1. Materials and Properties

   • PVC (Polyvinyl Chloride)
     ✅ Flexible and offers moderate chemical resistance.
     ✅ Lower cost compared to PU and Stainless Steel.
     ✅ Suitable for general applications such as packaging or conveying materials free of oil and grease.
     ❌ Not resistant to high temperatures and may wear faster than PU.

   • PU (Polyurethane)
     ✅ Better resistance to fats, oils, and chemicals than PVC.
     ✅ Smoother surface, ideal for food and pharmaceutical industries.
     ✅ Higher tear resistance and longer lifespan than PVC.
     ❌ Higher cost than PVC.

   • Stainless Steel
     ✅ High strength, resistant to impact and wear.
     ✅ Suitable for industries requiring high hygiene standards, such as food and beverage production.
     ✅ Resistant to high temperatures and chemicals.
     ❌ High cost and potentially heavier.

2. Suitable Applications

   • PVC → General goods transport, e.g., packaging, electronics.
   • PU → Food, pharmaceutical industries, and applications involving contact with oil or grease.
   • Stainless Steel → Applications requiring high hygiene or harsh environments (high temperature, high humidity), e.g., food and beverage processing plants, heavy industries.
