Description

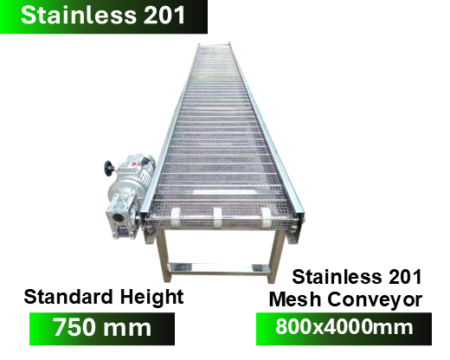

Conveyor Belt 201 Mesh

Stainless Steel 201 Frame (Height Adjustable Legs Not Included)

• Conveyor belt for moving items, mesh type.
• Electric motor driven, with adjustable speed control.
• Facilitates material handling and item conveying; easy to install and operate.
• Standard machine height: 75 cm (non-adjustable).
• Product load capacity on conveyor: approximately 40kg.
• Temperature resistance: -50 to +200 degrees Celsius.

Mesh Belt is a type of conveyor belt constructed from interconnected wires or fibers forming a mesh pattern. This design allows for easy passage of air or liquids. Mesh belts are commonly employed in applications requiring ventilation or cooling, as well as for material transport across various industries, particularly in baking or heating processes.

Mesh Belt Features and Applications:

1. Excellent Ventilation: The mesh structure, with its gaps between wires, ensures efficient airflow and heat dissipation.
2. High-Temperature Resistance: Mesh belts are frequently used in processes involving baking or heating, such as drying or curing food products and materials.
3. Diverse Material Construction: Mesh belts can be manufactured from various materials including stainless steel, plated steel, or corrosion-resistant alloys.
4. Industrial Applications: Widely utilized in the food industry (for drying and baking), chemical processing, component manufacturing, and assembly lines where air circulation is crucial.

Sample Products:

Inverter Motor, Motor Speed Ratio 30-40 meters/minute. Upgrade: +7500 Baht

• Conveyor Belt PVC 500x1000x750 mm
• Speed 40 m/min, Eccentric legs adjustable 100 mm.
• Total belt load capacity: 3 Kg.
• Price: 32,000 Baht

• Conveyor Belt PVC 500x1500x750 mm
• Speed 40 m/min, Eccentric legs adjustable 100 mm.
• Total belt load capacity: 3 Kg.

• Conveyor Belt PU, Stainless Steel Frame 400x1500x800 mm
• Speed 8-13 m/min, Eccentric legs adjustable 100 mm.
• Total belt load capacity: 30 Kg.

• Conveyor Belt PVC, Aluminum Profile Frame 300×1500 mm
• Speed 8-13 m/min, Adjustable legs.
• Total belt load capacity: 20 Kg.

• Conveyor Belt PU, Aluminum Profile Frame 500×4500 mm
• Speed 8-13 m/min, Adjustable legs.
• Total belt load capacity: 30 Kg.

• Conveyor Belt PVC, Aluminum Profile Frame 300×6000 mm
• Speed 8-13 m/min, Adjustable legs.
• Total belt load capacity: 30 Kg.

• Conveyor Belt PU, Stainless Steel 304 Frame 500×3000 mm + Stainless Steel 304 Table
• Speed 3-5 m/min, Adjustable legs.
• Total belt load capacity: 30 Kg.

• Conveyor Belt PU, Stainless Steel 304 Frame 400×3000 mm + Stainless Steel 304 Table
• Speed 3-5 m/min, Adjustable legs.
• Total belt load capacity: 30 Kg.

• Conveyor Belt PU, Stainless Steel 304 Frame 500×1500 mm
• Speed 8-13 m/min, Adjustable legs.
• Total belt load capacity: 30 Kg.

• Steel Structure Stainless 304 Conveyor Solid

• Speed 3-5 m/min, Adjustable legs.
• Total belt load capacity: 40 Kg.

• Conveyor Belt PVC 300x1500x750 mm
• Conveyor Belt PVC 300x1000x750 mm
• Conveyor Belt PVC 300x1200x300 mm
• Speed 8-13 m/min
• Weight: 2-3 kg.

•
• Conveyor Belt PVC, Aluminum Profile Frame 300×1500 mm
• Speed 8-13 m/min, Adjustable legs.
• Total belt load capacity: 30 Kg.

• Stainless Steel 304 Mesh Conveyor, Stainless Steel 304 Frame 600×1000 mm
• Speed 3-5 m/min, Adjustable legs.
• Total belt load capacity: 40 Kg.

Conveyor Belt PVC Speed Specifications

England

Thai

https://youtu.be/nlWc4jRPjM0?si=pLIe53J2EObnbE1w

Product on conveyor approximately 30kg

• Standard motor: 120W. Optional motors: 200W, 400W, 600W.

Differences Between PVC, PU, and Stainless Steel Conveyor Belts

1. Materials and Properties

   • PVC (Polyvinyl Chloride)
     ✅ Flexible and offers moderate chemical resistance.
     ✅ More economical than PU and stainless steel.
     ✅ Suitable for general applications, such as packaging or transporting materials without oil and grease.
     ❌ Not resistant to high temperatures and may wear out faster than PU.

   • PU (Polyurethane)
     ✅ Superior resistance to grease, oil, and chemicals compared to PVC.
     ✅ Smoother surface, ideal for food and pharmaceutical industries.
     ✅ Higher tear strength and longer lifespan than PVC.
     ❌ Higher cost than PVC.

   • Stainless Steel
     ✅ High strength, resistant to impact and abrasion.
     ✅ Suitable for industries requiring high hygiene standards, such as food and beverage production.
     ✅ Resistant to high temperatures and chemicals.
     ❌ High cost and can be heavy.

2. Suitable Applications

   • PVC → General cargo transport, such as packaging and electronics.
   • PU → Food, pharmaceutical industries, and applications involving contact with oil or grease.
   • Stainless Steel → Applications demanding high sanitation or environments with high heat or humidity, such as food and beverage processing plants, and heavy industrial settings.
