Description

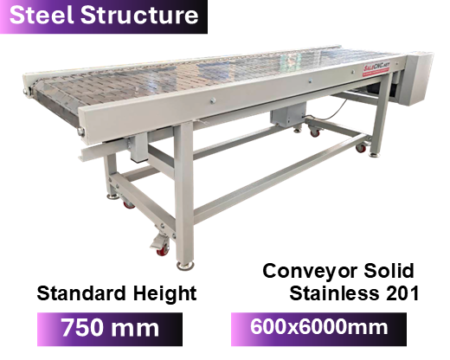

Stainless 201 Conveyor

Conveyor Belt – Stainless Steel 201, Flat Type

Steel Structure (Non-Adjustable Height Legs)

• Mesh type conveyor for material handling and transfer.
• Equipped with an electric motor allowing for adjustable speed control.
• Facilitates easy material handling and sorting, with simple installation and operation.
• Standard height: 75 cm (non-adjustable).
• Product on conveyor capacity: approximately 40 kg.
• Temperature resistance: -50 to +200 degrees Celsius.

Mesh Belt Conveyors are characterized by their construction from interconnected wires or fibers forming a mesh pattern. This design allows for easy airflow or liquid passage. Mesh belts are commonly used in applications requiring ventilation or cooling, as well as for material transport in various industrial processes, particularly in baking or heating applications.

Mesh Belt Features and Applications:

1. Excellent Ventilation: The mesh structure provides gaps between wires, ensuring efficient airflow and heat dissipation.
2. High-Temperature Resistance: Frequently employed in baking or heating processes, such as food drying or material curing.
3. Diverse Material Options: Mesh belts can be manufactured from various materials, including stainless steel, plated steel, or corrosion-resistant alloys.
4. Industrial Applications: Commonly used in the food industry (drying, baking), chemical processing, component manufacturing, and assembly lines requiring air circulation.

Product examples:

Inverter Motor Motor Speed Ratio 30-40 m/min. Additional Charge: 7500 Baht

• Conveyor Belt PVC 500x1000x750 mm
• Speed 40 m/min, Eccentric Legs adjustable 100 mm.
• Load capacity: 3 Kg. across the entire belt.
• Price: 32,000 Baht

• Conveyor Belt PVC 500x1500x750 mm
• Speed 40 m/min, Eccentric Legs adjustable 100 mm.
• Load capacity: 3 Kg. across the entire belt.

• Conveyor Belt PU, Stainless Steel Frame 400x1500x800 mm
• Speed 8-13 m/min, Eccentric Legs adjustable 100 mm.
• Load capacity: 30 Kg. across the entire belt.

• Conveyor Belt PVC, Aluminum Profile Frame 300×1500 mm
• Speed 8-13 m/min, Adjustable Legs.
• Load capacity: 20 Kg. across the entire belt.

• Conveyor Belt PU, Aluminum Profile Frame 500×4500 mm
• Speed 8-13 m/min, Adjustable Legs.
• Load capacity: 30 Kg. across the entire belt.

• Conveyor Belt PVC, Aluminum Profile Frame 300×6000 mm
• Speed 8-13 m/min, Adjustable Legs.
• Load capacity: 30 Kg. across the entire belt.

• Conveyor Belt PU, Stainless Steel 304 Frame 500×3000 mm + Stainless Steel 304 Table
• Speed 3-5 m/min, Adjustable Legs.
• Load capacity: 30 Kg. across the entire belt.

• Conveyor Belt PU, Stainless Steel 304 Frame 400×3000 mm + Stainless Steel 304 Table
• Speed 3-5 m/min, Adjustable Legs.
• Load capacity: 30 Kg. across the entire belt.

• Conveyor Belt PU, Stainless Steel 304 Frame 500×1500 mm
• Speed 8-13 m/min, Adjustable Legs.
• Load capacity: 30 Kg. across the entire belt.

• Conveyor Belt Stainless Steel 304, Steel Frame
• Speed 3-5 m/min, Adjustable Legs.
• Load capacity: 30 Kg. across the entire belt.

• Conveyor Belt PVC 300x1500x750 mm
• Conveyor Belt PVC 300x1000x750 mm
• Conveyor Belt PVC 300x1200x300 mm
• Speed 8-13 m/min
• Weight capacity: 2-3 Kg.

• Conveyor Belt PVC, Aluminum Profile Frame 300×1500 mm
• Speed 8-13 m/min, Adjustable Legs.
• Load capacity: 30 Kg. across the entire belt.

• Conveyor Mesh Belt Stainless Steel 304, Stainless Steel 304 Frame 600×1000 mm
• Speed 3-5 m/min, Adjustable Legs.
• Load capacity: 40 Kg. across the entire belt.

• Conveyor Stainless Steel 304, Steel Structure
• Speed 3-5 m/min, Height 750 mm.
• Load capacity: 40 Kg. across the entire belt.

Conveyor Belt PVC Speed Specifications

**English**

**Thai**

Product on conveyor capacity: approximately 30 kg

• Standard motor: 120W. Optional motors available: 200W, 400W, 600W.

Differences between PVC, PU, and Stainless Steel Conveyor Belts

1. Material and Properties

   • PVC (Polyvinyl Chloride)
     ✅ Flexible and offers moderate chemical resistance.
     ✅ More economical than PU and stainless steel.
     ✅ Suitable for general applications such as packaging or material transport without oil or grease.
     ❌ Not resistant to high temperatures; may wear out faster than PU.

   • PU (Polyurethane)
     ✅ Superior resistance to grease, oil, and chemicals compared to PVC.
     ✅ Smoother surface, ideal for food and pharmaceutical industries.
     ✅ More resistant to tearing and offers longer service life than PVC.
     ❌ Higher cost than PVC.

   • Stainless Steel
     ✅ High strength, resistant to impact and abrasion.
     ✅ Suitable for industries requiring high hygiene standards, such as food and beverage.
     ✅ Resistant to high temperatures and chemicals.
     ❌ High cost and potentially heavier.

2. Suitable Applications

   • PVC → General goods transport, e.g., packaging, electronics.
   • PU → Food industry, pharmaceuticals, applications involving oil or grease.
   • Stainless Steel → High-hygiene applications, or environments with high heat or humidity, e.g., food and beverage processing, heavy industry.
