Specifications

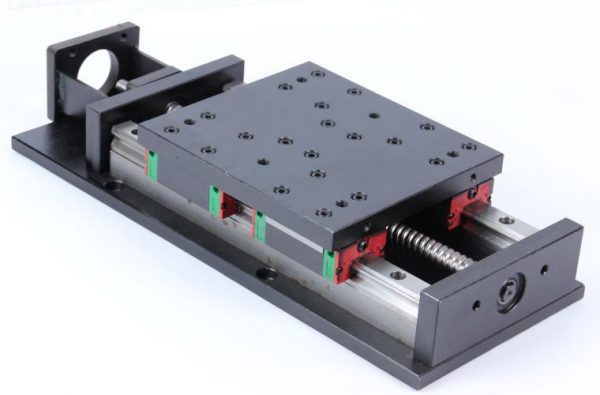

- Sliding Table Material: 45# Steel
- Slider Panel Dimensions: 160 mm (width) x 180 mm (length), with M8 mounting holes (104 mm x 140 mm spacing)
- Sliding Floor Dimensions: 160 mm (width) x (effective stroke + 290 mm) (length), 15 mm thickness
- Sliding Table Height: 79 mm
- Actuation System:
- Ball Screw: 16 mm diameter, 10 mm lead (modifiable to 10mm pitch per revolution)
- Linear Rail: HGH20CA (Micro Preload Precision Class)
- Positioning Accuracy: 0.02 mm
- Load Capacity:
- Horizontal: 180 kg
- Vertical: 90 kg
- Accessory Options (Select One):
- 57 or 86 Series Stepper Motor Bracket
- 60 or 80 mm Servo Motor Bracket
- Hand Wheel
