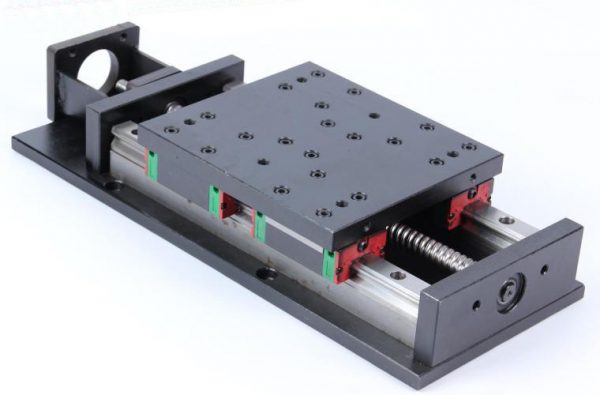

Product Information: Square Linear Set HG20 Pallet Platform, Stroke 0.60 meter
Specifications
- Sliding Table Material: 45# Steel
- Slider Panel Dimensions: 160 mm (width) x 180 mm (length) with M8 mounting holes at 104 mm x 140 mm spacing.
- Sliding Floor Dimensions: 160 mm (width) x (Effective Stroke + 290 mm) (length), 15 mm thickness.
- Sliding Table Height: 79 mm
- Actuator Configuration: Ball screw diameter 16 mm, lead 10 mm (10 mm linear travel per revolution, configurable). Rail: HGH20CA (Micro preload precision class).
- Positioning Accuracy: 0.02 mm
- Load Capacity: Horizontal 180 kg / Vertical 90 kg
- Drive Accessory Options (Select One): 57 or 86 stepper motor bracket, 60 or 80 servo motor bracket, or Hand Wheel.
