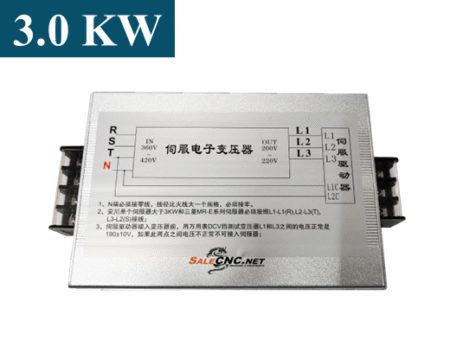

CNC Servo Transformer, Input 380V 3-Phase, Output 220V AC 3-Phase for Servo Motor/Drive
AC Servo Transformer Sizing Guide:
- China Servo Motor: x1.2 AC Servo Transformer
- Taiwan Servo Motor: x1.5 AC Servo Transformer
- Japan Servo Motor: x2.0 AC Servo Transformer
- Europe/America Servo Motor: x2.0 AC Servo Transformer
Example Calculations:
- Delta Servo (Taiwan) 2KW requires a 2KW x 1.5 = 3KW Transformer.
- Yaskawa (Japan), Panasonic 2KW requires a 2KW x 2.0 = 4KW Transformer.
*** For Delta, Siemens, Schneider, connect as shown. Refer to diagrams for other manufacturers. ***
Features:
- Transformer 380V – 220V AC for servo motor/drive
- Power Rating: 1.5 kW (Note: This appears to be a specific model’s rating, not the general calculation basis)
- Low heat generation and minimal fan cooling requirements, benefiting connected equipment.
- Compact size for reduced installation space.
- Lighter weight compared to conventional transformers.
- Cost-effective.
- Energy efficient.
