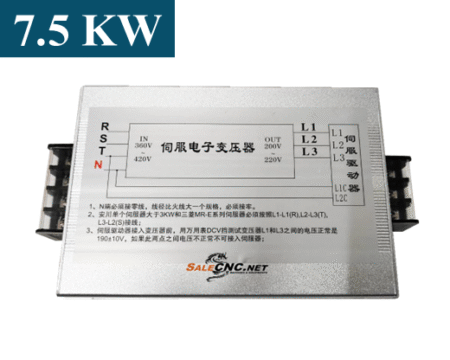

CNC Servo Transformer, Input 380V 3-Phase,
Output 220V AC 3-Phase for Servo Motor/Drive
Product Specifications
China Servo Motor applications require x1.2 AC servo transformer.
Taiwan Servo Motor applications require x1.5 AC servo transformer.
Japan Servo Motor applications require x 2.0 AC servo transformer.
Europe/America Servo Motor applications require x 2.0 AC servo transformer.
Example: For a Delta Servo (Taiwan) 2KW motor, a transformer with a capacity of 2KW x 1.5 = 3KW is required.
For Yaskawa (Japan) or Panasonic 2KW motors, a transformer with a capacity of 2KW x 2.0 = 4KW is required.
***For Delta, Siemens, Schneider, connect as shown below. For other brands, refer to the diagrams provided.****
✅ Transformer 380V – 220V AC for servo motor/drive
✅ Rated Power: 1.5 kW
✅ Low heat generation and minimal fan power consumption, benefiting connected equipment.
✅ Compact design for reduced installation space.
✅ Lighter weight compared to conventional transformers.
✅ Cost-effective pricing.
✅ Enhanced energy efficiency.
