Description

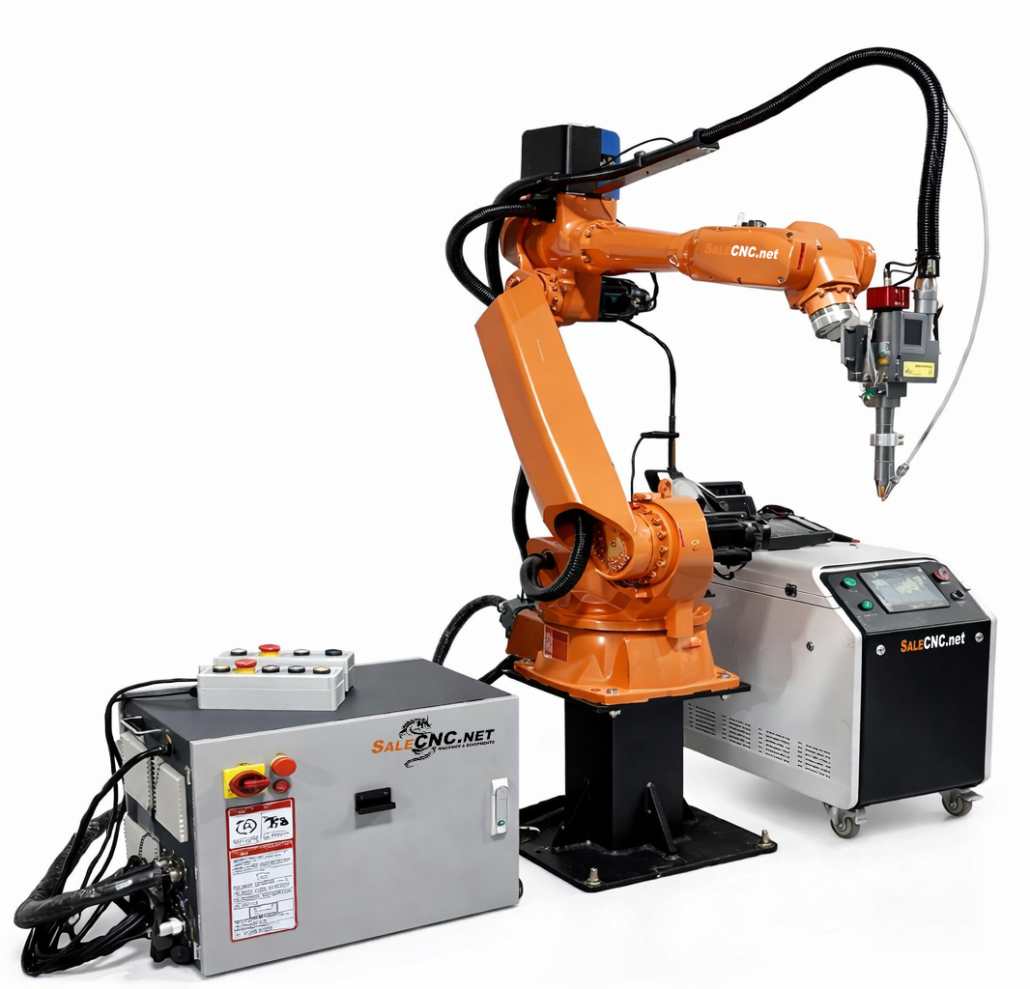

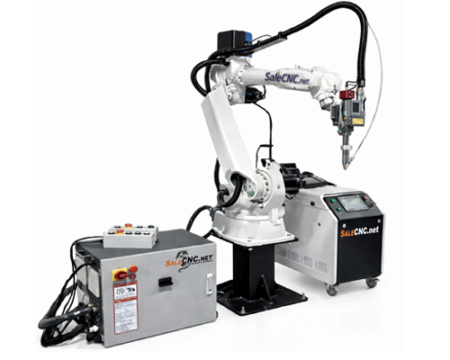

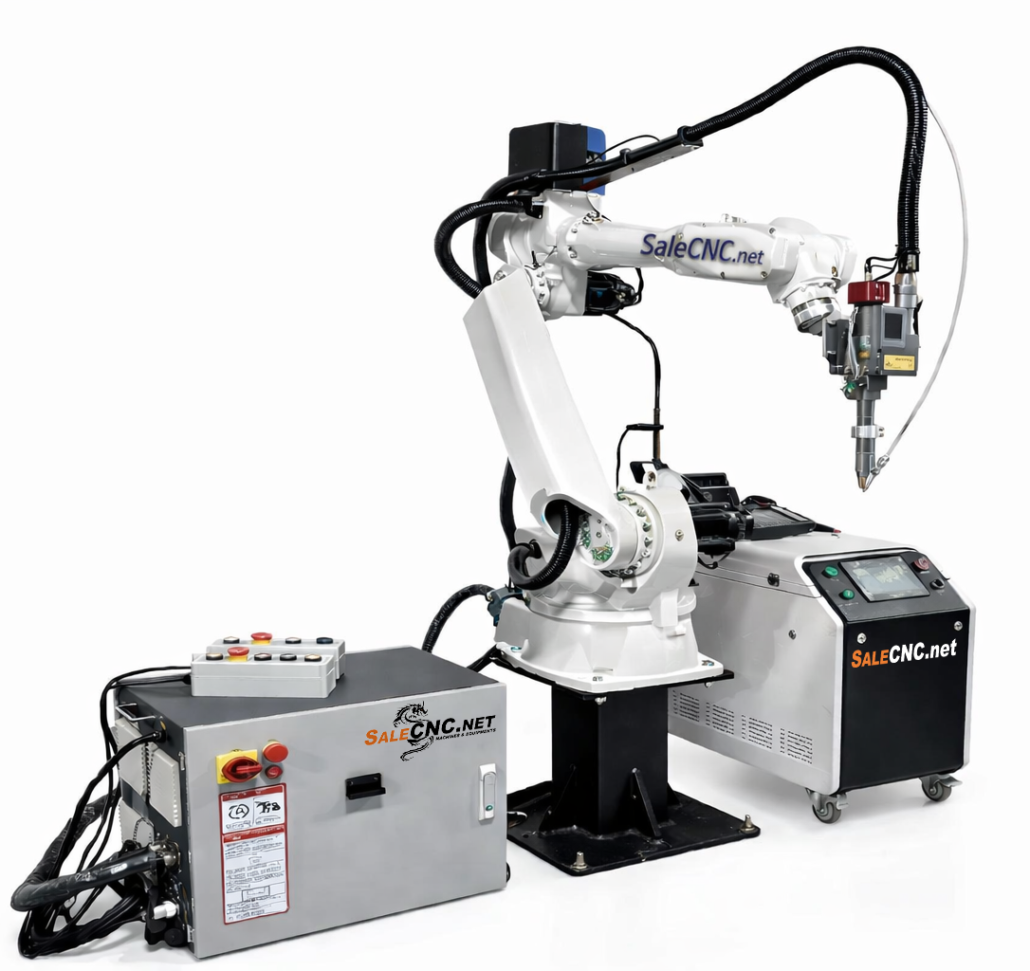

Robot Welding Laser 3000W

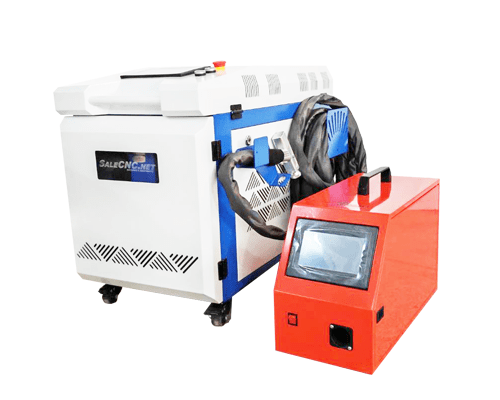

Laser Cleaning Machine 3000W

This laser cleaning machine utilizes laser technology for surface cleaning of steel or metal from rust and other contaminants, eliminating the need for chemicals or manual scrubbing. The machine operates by directing a high-energy laser beam onto the target surface, causing rust and debris to disintegrate and be expelled by airflow.

The 4-in-1 laser machine features an integrated wire feeder and is capable of rust removal, weld seam cleaning, welding, and cutting. It offers high operating speed, efficiency, and superior results. Designed for continuous, long-term operation with minimal consumables and extended service life, the wire feeder is a standardized component that reduces part gaps and enhances weld quality. The system can also be integrated with robotic arms for automated applications.

• Cleaning: Removes rust and cleans all surfaces.
• Welding: Performs various welding types, including continuous and spot welding.
• Cleaning Welding: Cleans rust from weld seams and all surfaces.
• Cutting: Cuts steel up to 4mm thickness.

Machine Components

• Machine Dimensions: 710x420x1025 mm
• Wire Feeder Cabinet
• Chiller for cooling the machine’s water.
• Touchscreen Display
• Control Buttons
• Air connector for lens cooling system.
• Cooling fan for the machine.
• Connectors for welding equipment and wire feeder.
• Laser Gun

Laser Gun Components

• Nozzle
• Safety switch
• Air hose
• Water hose
• Gas hose

Nozzle Head Specifications

• A Copper Beak,
• B Copper Beak,
• C Copper Beak,
• AS-12 Copper Beak, Wire feed 0.8/1.0/1.2 mm
• BS-16 Copper Beak, Wire feed 1.6 mm
• CS-12 Copper Beak, Wire feed 0.8/1.0/1.2 mm
• DS-12 Copper Beak, Wire feed 0.8/1.0/1.2 mm
• ES-12 Copper Beak, Wire feed 0.8/1.0/1.2 mm
• FS-16 Copper Beak, Wire feed 1.6 mm

Product Specifications

—> Fiber Laser 4 in 1 – 1,000W <—

• Power: 1,000W
• Laser wavelength: 1080±10 nm
• Model of operation: Connect/Disable
• Power range: 10-100%
• Diameter of fiber: 25-50
• Sighting position: glow
• Fiber length: 10 m
• Welding speed: 0-120 mm/s
• Applicable thickness: <3.5 mm (Depending on material)
• Wire feeder: Standard wire feeding speed 38-600 mm/min
• Feed diameter: 0.8/1.0/1.2/1.6/2.0 mm
• Cooling mode: Chiller water cooling
• Working environment: 10-40°C, humidity 10-85%, non-condensing
• Rate output: 3.5 kw
• Operating voltage: 220±20 V, AC, PE, 50-60 Hz
• Size: 710x420x1025 mm
• Weight: 180 kg

—> Fiber Laser 4 in 1 – 1,500W <—

• Power: 1,500W
• Laser wavelength: 1080±10 nm
• Model of operation: Connect/Disable
• Power range: 10-100%
• Diameter of fiber: 25-50
• Sighting position: glow
• Fiber length: 10 m
• Welding speed: 0-120 mm/s
• Applicable thickness: <3.5 mm (Depending on material)
• Wire feeder: Standard wire feeding speed 38-600 mm/min
• Feed diameter: 0.8/1.0/1.2/1.6/2.0 mm
• Cooling mode: Chiller water cooling
• Working environment: 10-40°C, humidity 10-85%, non-condensing
• Rate output: 4.5 kw
• Operating voltage: 220±20 V, AC, PE, 50-60 Hz
• Size: 710x420x1025 mm
• Weight: 180 kg

—> Fiber Laser 4 in 1 – 2,000W <—

• Power: 2,000W
• Laser wavelength: 1080±10 nm
• Model of operation: Connect/Disable
• Power range: 10-100%
• Diameter of fiber: 25-50
• Sighting position: glow
• Fiber length: 10 m
• Welding speed: 0-120 mm/s
• Applicable thickness: <3.5 mm (Depending on material)
• Wire feeder: Standard wire feeding speed 38-600 mm/min
• Feed diameter: 0.8/1.0/1.2/1.6/2.0 mm
• Cooling mode: Chiller water cooling
• Working environment: 10-40°C, humidity 10-85%, non-condensing
• Rate output: 6 kw
• Operating voltage: 220±20 V, AC, PE, 50-60 Hz
• Size: 1060x505x1120 mm
• Weight: 250 kg

—> Fiber Laser 4 in 1 – 3,000W <—

• Power: 3,000W
• Laser wavelength: 1080±10 nm
• Model of operation: Connect/Disable
• Power range: 10-100%
• Diameter of fiber: 25-50
• Sighting position: glow
• Fiber length: 10 m
• Welding speed: 0-120 mm/s
• Applicable thickness: <3.5 mm (Depending on material)
• Wire feeder: Standard wire feeding speed 38-600 mm/min
• Feed diameter: 0.8/1.0/1.2/1.6/2.0 mm
• Cooling mode: Chiller water cooling
• Working environment: 10-40°C, humidity 10-85%, non-condensing
• Rate output: 8 kw
• Operating voltage: 220±20 V, AC, PE, 50-60 Hz
• Size: 1060x505x1120 mm
• Weight: 250 kg

The laser offers rapid and efficient rust removal. Laser rust removal is an effective, precise, safe, and user-friendly technology suitable for removing rust from various surfaces.

• Precision: The laser can selectively remove rust from designated areas.
• Safety: The laser process does not generate noise pollution.
• Ease of Use: The laser rust removal machine is intuitive and convenient to operate, with adjustable power and resolution settings.
