Description

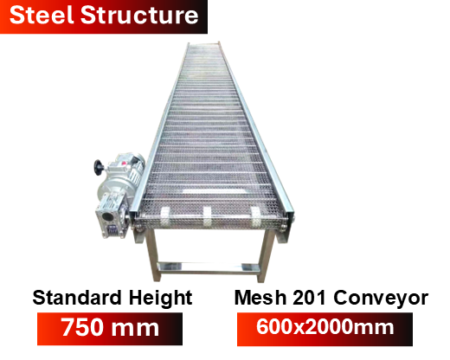

Conveyor Belt 201 Mesh

This is a mesh-type conveyor belt designed for transporting items. It features a stainless steel 201 mesh construction and a steel frame. The height of the unit is fixed at 75 cm and is not adjustable.

• Mesh-type conveyor belt for item transport.
• Equipped with an electric motor allowing for adjustable flow speed.
• Facilitates easy material handling and item conveying; simple to install and operate.
• Standard height: 75 cm (non-adjustable).
• Maximum load capacity on conveyor: approximately 40 kg.
• Temperature resistance: -50 to +200 degrees Celsius.

Mesh Belts are constructed from interconnected wires or fibers forming a mesh pattern, which allows for easy airflow or liquid passage. This belt type is commonly used in applications requiring ventilation or cooling, as well as for material transport in various industrial processes, particularly those involving heating or baking.

Mesh Belt Features and Applications:

1. Excellent Airflow: The mesh structure provides gaps between wires, ensuring efficient ventilation and heat dissipation.
2. High-Temperature Resistance: Mesh belts are suitable for high-temperature applications such as food drying or material baking.
3. Diverse Material Options: Available in various materials including stainless steel, plated steel, or corrosion-resistant alloys.
4. Industrial Applications: Widely used in the food industry (drying, baking), chemical processing, component manufacturing, and assembly lines requiring air circulation.

Motor Options:

Inverter Motor with Speed Ratio Adjustment: 30-40 meters/minute. Upgrade cost: 7500 THB.

• Conveyor Belt PVC, Dimensions: 500x1000x750 mm
• Speed: 40 m/min; Adjustable Legs: 100 mm.
• Total belt load capacity: 3 kg.
• Price: 32,000 THB.

• Conveyor Belt PVC, Dimensions: 500x1500x750 mm
• Speed: 40 m/min; Adjustable Legs: 100 mm.
• Total belt load capacity: 3 kg.

• Conveyor Belt PU, Stainless Steel Frame, Dimensions: 400x1500x800 mm
• Speed: 8-13 m/min; Adjustable Legs: 100 mm.
• Total belt load capacity: 30 kg.

• Conveyor Belt PVC, Aluminum Profile Frame, Dimensions: 300×1500 mm
• Speed: 8-13 m/min; Adjustable Legs.
• Total belt load capacity: 20 kg.

• Conveyor Belt PU, Aluminum Profile Frame, Dimensions: 500×4500 mm
• Speed: 8-13 m/min; Adjustable Legs.
• Total belt load capacity: 30 kg.

• Conveyor Belt PVC, Aluminum Profile Frame, Dimensions: 300×6000 mm
• Speed: 8-13 m/min; Adjustable Legs.
• Total belt load capacity: 30 kg.

• Conveyor Belt PU, Stainless Steel 304 Frame + Stainless Steel 304 Table, Dimensions: 500×3000 mm
• Speed: 3-5 m/min; Adjustable Legs.
• Total belt load capacity: 30 kg.

• Conveyor Belt PU, Stainless Steel 304 Frame + Stainless Steel 304 Table, Dimensions: 400×3000 mm
• Speed: 3-5 m/min; Adjustable Legs.
• Total belt load capacity: 30 kg.

• Conveyor Belt PU, Stainless Steel 304 Frame, Dimensions: 500×1500 mm
• Speed: 8-13 m/min; Adjustable Legs.
• Total belt load capacity: 30 kg.

• Steel Structure Stainless 304 Conveyor Solid

• Speed: 3-5 m/min; Adjustable Legs.
• Total belt load capacity: 40 kg.

• Conveyor Belt PVC, Dimensions: 300x1500x750 mm
• Conveyor Belt PVC, Dimensions: 300x1000x750 mm
• Conveyor Belt PVC, Dimensions: 300x1200x300 mm
• Speed: 8-13 m/min
• Weight capacity: 2-3 kg.

•
• Conveyor Belt PVC, Aluminum Profile Frame, Dimensions: 300×1500 mm
• Speed: 8-13 m/min; Adjustable Legs.
• Total belt load capacity: 30 kg.

• Conveyor Belt Mesh, Stainless Steel 304 Construction, Dimensions: 600×1000 mm
• Speed: 3-5 m/min; Adjustable Legs.
• Total belt load capacity: 40 kg.

Conveyor Belt PVC Speed Specifications

Specifications (English):

Specifications (Thai):

Video Demonstration

Load capacity on conveyor: approximately 30 kg.

• Standard motor: 120W. Optional motors: 200W, 400W, 600W.

Differences Between PVC, PU, and Stainless Steel Conveyor Belts

1. Material and Properties

   • PVC (Polyvinyl Chloride)
     ✅ Flexible and offers moderate chemical resistance.
     ✅ More economical than PU and stainless steel.
     ✅ Suitable for general applications such as packaging or material transport where oil and grease are not present.
     ❌ Not resistant to high temperatures and may wear faster than PU.

   • PU (Polyurethane)
     ✅ Better resistance to fats, oils, and chemicals compared to PVC.
     ✅ Smoother surface, ideal for food and pharmaceutical industries.
     ✅ Higher tear strength and longer service life than PVC.
     ❌ Higher cost than PVC.

   • Stainless Steel
     ✅ High strength, resistant to impact and abrasion.
     ✅ Suitable for industries requiring high hygiene standards, such as food and beverage processing.
     ✅ Resistant to high temperatures and chemicals.
     ❌ High cost and can be heavy.

2. Suitable Applications

   • PVC → General goods transport, e.g., packaging, electronics.
   • PU → Food and pharmaceutical industries, applications involving contact with oil or grease.
   • Stainless Steel → Applications demanding high hygiene or operating in high-temperature or high-humidity environments, e.g., food and beverage production, heavy industry.
