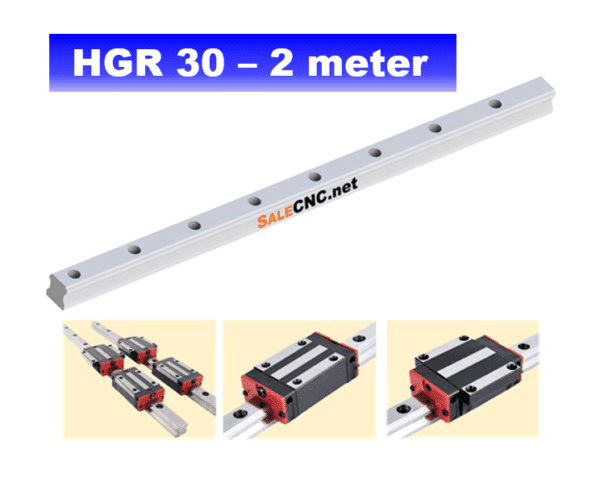

Linear Rail model HGR
HGR30 – 2 meter
- Linear rails are machine tool components characterized by their elongated track design.
- They incorporate a rectangular block that carries the load, such as HGH, HGW, or SBR types.
- Linear rails are available in various sizes and lengths to suit different application requirements.
- They offer high strength, durability, and ease of installation.
- Linear rails can be adapted for diverse applications, including copiers, CNC machinery, automotive manufacturing, and the textile industry.
Specification : Linear Rail HG Data
| Model Size (mm) | HG15 | HG20 | HG25 | HG30 | HG35 | HG45 |
|---|---|---|---|---|---|---|
| Rail Length (mm) | 62 | 78 | 84 | 98 | 113 | 140 |
| Distance from the Edge to the Center of the First Hole (from Left) | 20 | 20 | 20 | 20 | 20 | 22.5 |
| Distance from the Edge | Tolerance of E value for standard rail is ± 0.5mm | |||||
Dimensions
| Model Size (mm) | HG15 | HG20 | HG25 | HG30 | HG35 | HG45 |
|---|---|---|---|---|---|---|
| No. of Holes | 1 | 2 | 2 | 2 | 2 | 2 |
| Head Bolt Hole Diameter (mm) | 7.5 | 9.5 | 11 | 14 | 14 | 20 |
| Bolt Hole Spacing – Length (mm) | 60 | 60 | 60 | 80 | 80 | 105 |
Features : Linear Rail HG Properties
1. Easy lubrication
With a traditional sliding system, insufficient lubrication causes wear on the contact surfaces. Also, it can be quite difficult to supply sufficient lubrication to the contact surfaces because finding an appropriate lubrication point is not very easy. With a linear motion guideway, grease can be easily supplied through the grease nipple on the linear guideway block. It is also possible to utilize a centralized oil lubrication system by piping the lubrication oil to the piping joint.
2. Easy installation
Installing a linear guideway is fairly easy. Grinding or milling the machine surface, following the recommended installation procedure, and tightening the bolts to their specified torque can achieve highly accurate linear motion.
1. Place the slider parallel to the guide rail
2. Gently push the slider into the guide rail
3. The slider slides into the guide rail
4. The installation is over, without dropping the steel ball
When installing, do not take out the plastic false rails in the slider in advance, otherwise the steel balls in the slider will easily fall out during assembly and it will not be able to be installed and used normally! When disassembling, the false rail cooperates with the disassembly to prevent the beads from falling off.
3. High speed motions is possible with a low driving force
Because linear guideways have little friction resistance, only a small driving force is needed to move a load. This results in greater power savings, especially in the moving parts of a system. This is especially true for the reciprocating parts.
4. Long life with high motion accuracy
With a traditional slide, errors in accuracy are caused by the counter flow of the oil film. Insufficient lubrication causes wear between the contact surfaces, which become increasingly inaccurate. In contrast, rolling contact has little wear; therefore, machines can achieve a long life with highly accurate motion.
5. High positional accuracy
When a load is driven by a linear motion guideway, the frictional contact between the load and the bed desk is rolling contact. The coefficient of friction is only 1/50 of traditional contact, and the difference between the dynamic and the static coefficient of friction is small. Therefore, there would be no slippage while the load is moving.
6. Equal loading capacity in all directions
With this special design, these linear guideways can take loads in either the vertical or horizontal directions. Conventional linear slides can only take small loads in the direction parallel to the contact surface. They are also more likely to become inaccurate when they are subjected to the loads.
