Description

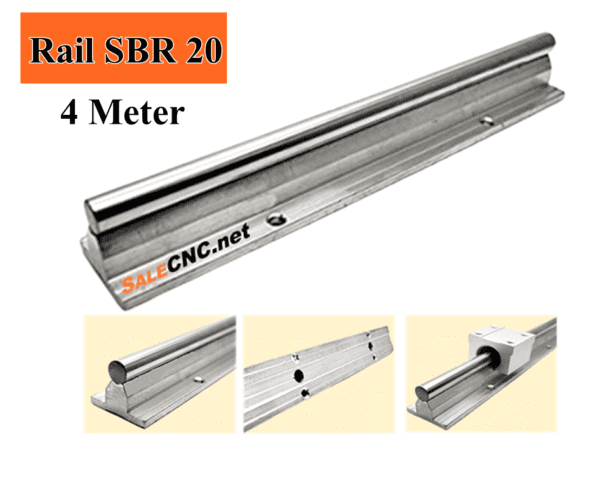

Linear Rail SBR20

4 Meter Length

Specification

Linear Rail SBR Series Available Models: SBR10, SBR12, SBR16, SBR20, SBR25, SBR30, SBR35, SBR40, SBR50 (mm)

Features

• The linear bearing system offers a cost-effective solution for linear motion applications with unlimited travel along a cylinder axis. Due to the point contact between the ball and the straight shaft, the load capacity is moderate.
• The ball rotation operates with minimal friction, enabling high-precision and smooth motion.
• Flange linear bearings are available in various types: round flange, oval flange, guided wheel flange, guided oval flange, and extended round flange.
• This product is a sliding unit comprising an aluminum housing, shafts, and an aluminum rail to prevent deflection.
• It constitutes a complete sliding unit system that can be securely fastened with bolts, ensuring high accuracy.
• The support rail unit provides maximum rigidity and stiffness to the shaft across the entire stroke, guaranteeing optimal performance.

Linear Rail SBR Assembly with Sliding Block

Rear View of SBR Linear Rail

HGH Block vs. SBR Block Comparison

HGH Block (Linear Guideway)

• Structure: HGH linear guideways feature a rail with recirculating ball bearings, offering smoothness and durability.
• Precision: High precision, suitable for applications requiring fine accuracy, such as CNC machinery and metrology equipment.
• Load Capacity: High load-bearing capacity and resistance to impact.
• Applications: Used in heavy-duty industrial applications, including machine manufacturing, precision component production, and electronic assembly.

SBR Block (Support Rail Guide)

• Structure: SBR linear guides utilize a supported round shaft with recirculating ball bearings, providing operational flexibility.
• Precision: Moderate precision, not ideal for applications demanding extremely high accuracy.
• Load Capacity: Lower load capacity compared to HGH, but offers greater flexibility.
• Applications: Suitable for less precision-critical applications such as 3D printers, small laser cutters, and general motion systems.

Summary of Differences

• HGH: Recommended for applications demanding high precision and significant load capacity.
• SBR: Recommended for applications prioritizing flexibility and general-purpose use.

Selection between HGH and SBR should be based on the specific application requirements and desired performance characteristics.
