Description

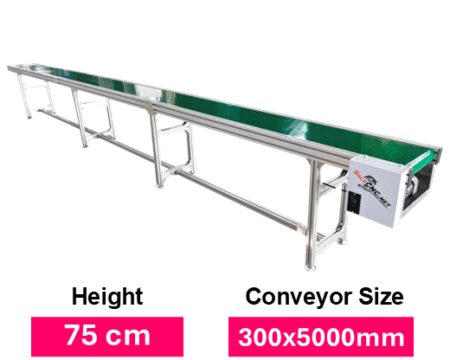

Conveyor Belt PVC

Conveyor Belt – PVC Type

Standard Height (Fixed)

• PVC Conveyor Belt for material handling and transfer.
• Equipped with an electric motor for adjustable belt speed control.
• Facilitates easy material transportation and organization; simple installation and operation.
• Standard fixed height: 75 cm.
• Load capacity: Approximately 30 kg on the conveyor belt.

Polyvinylchloride (PVC)

• PVC offers good resistance to high temperatures, tensile strength, and cutting/puncture.
• PVC exhibits excellent wear resistance.
• PVC provides good resistance to oils and odors.
• PVC is durable and resistant to abrasion.

[conveyor_img_link]

Product Example:

• Conveyor Belt PU 600×2500 mm
• Motor: 200W
• Speed: 16-25 m/min
• Adjustable leg supports with free-spinning casters.

Product Example:

Inverter Motor – Variable Speed Ratio 30-40 meters/minute; additional charge: 7,500 Baht

• Conveyor Belt PVC 500x1000x750 mm
• Speed: 40 m/min; Adjustable Leg Supports: 100 mm.
• Load Capacity: 3 kg across the entire belt.
• Price: 32,000 Baht

• Conveyor Belt PVC 500x1500x750 mm
• Speed: 40 m/min; Adjustable Leg Supports: 100 mm.
• Load Capacity: 3 kg across the entire belt.

• Conveyor Belt PU with Stainless Steel Frame: 400x1500x800 mm
• Speed: 8-13 m/min; Adjustable Leg Supports: 100 mm.
• Load Capacity: 30 kg across the entire belt.

• Conveyor Belt PVC with Aluminum Profile Frame: 300×1500 mm
• Speed: 8-13 m/min; Adjustable Legs.
• Load Capacity: 20 kg across the entire belt.

• Conveyor Belt PU with Aluminum Profile Frame: 500×4500 mm
• Speed: 8-13 m/min; Adjustable Legs.
• Load Capacity: 30 kg across the entire belt.

• Conveyor Belt PVC with Aluminum Profile Frame: 300×6000 mm
• Speed: 8-13 m/min; Adjustable Legs.
• Load Capacity: 30 kg across the entire belt.

• Conveyor Belt PU with Stainless Steel 304 Frame and Stainless Steel 304 Table: 500×3000 mm
• Speed: 3-5 m/min; Adjustable Legs.
• Load Capacity: 30 kg across the entire belt.

• Conveyor Belt PU with Stainless Steel 304 Frame and Stainless Steel 304 Table: 400×3000 mm
• Speed: 3-5 m/min; Adjustable Legs.
• Load Capacity: 30 kg across the entire belt.

• Conveyor Belt PU with Stainless Steel 304 Frame: 500×1500 mm
• Speed: 8-13 m/min; Adjustable Legs.
• Load Capacity: 30 kg across the entire belt.

• Steel Structure Stainless 304 Conveyor Solid

• Speed: 3-5 m/min; Adjustable Legs.
• Load Capacity: 40 kg across the entire belt.

• Conveyor Belt PVC 300x1500x750 mm
• Conveyor Belt PVC 300x1000x750 mm
• Conveyor Belt PVC 300x1200x300 mm
• Speed: 8-13 m/min
• Weight Capacity: 2-3 kg.

•
• Conveyor Belt PVC with Aluminum Profile Frame: 300×1500 mm
• Speed: 8-13 m/min; Adjustable Legs.
• Load Capacity: 30 kg across the entire belt.

• Conveyor Mesh Belt – Stainless Steel 304 with Stainless Steel 304 Frame: 600×1000 mm
• Speed: 3-5 m/min; Adjustable Legs.
• Load Capacity: 40 kg across the entire belt.

Conveyor Belt PVC Speed Specifications

England

Thai

Product on conveyor about 30kg

• Standard motor is 120W. Optional motors: 200W, 400W, 600W.

Differences Between PVC, PU, and Stainless Steel Conveyor Belts

• Materials and Properties

  • PVC (Polyvinyl Chloride)
    ✅ Flexible and offers moderate chemical resistance.
    ✅ More economical than PU and Stainless Steel.
    ✅ Suitable for general applications such as packaging or transporting materials without oil and grease.
    ❌ Not resistant to high temperatures and may wear faster than PU.
  • PU (Polyurethane)
    ✅ Superior resistance to fats, oils, and chemicals compared to PVC.
    ✅ Smoother surface, ideal for food and pharmaceutical industries.
    ✅ Higher tensile strength and longer service life than PVC.
    ❌ Higher cost than PVC.
  • Stainless Steel
    ✅ High strength, resistant to impact and abrasion.
    ✅ Suitable for industries requiring high hygiene standards, such as food and beverage production.
    ✅ Resistant to high temperatures and chemicals.
    ❌ Higher cost and can be heavier.

• Recommended Applications

  • PVC → Used for general goods transport, e.g., packaging, electronics.
  • PU → Used in food and pharmaceutical industries, and applications involving contact with oils or fats.
  • Stainless Steel → Used in applications requiring high hygiene or in environments with high heat or humidity, e.g., food and beverage manufacturing, heavy industry.
