Description

Conveyor Belt PU

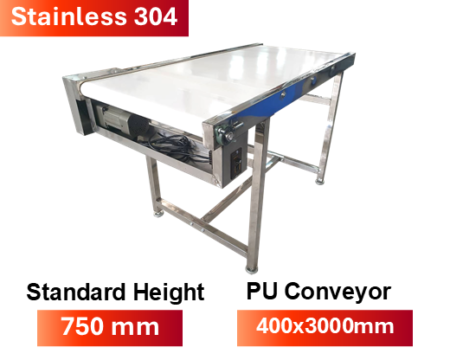

Polyurethane (PU) Conveyor Belt, Stainless Steel 304 Frame (Fixed Height Legs)

• Conveyor belt for material transfer, PU type.
• Equipped with an electric motor, speed adjustment available.
• Facilitates easy material handling and conveying; simple installation and operation.
• Standard machine height: 75 cm (non-adjustable).
• Product load capacity on conveyor: approximately 30 kg.

Polyurethane (PU) Belting is favored across numerous industries due to its distinct and advantageous properties:

1. High Durability: Polyurethane exhibits superior strength and wear resistance, making it ideal for demanding applications involving the transport of heavy materials or components.
2. Chemical Resistance: PU demonstrates excellent resistance to various chemicals, including certain acids and alkalis, suitable for environments with chemical exposure or related industrial processes.
3. High-Temperature Tolerance: PU belting can withstand higher temperatures compared to many other materials, ensuring reliable performance in elevated temperature conditions.
4. Flexibility and Customization: The inherent flexibility of polyurethane allows for customization of shape and size to meet specific application requirements. Furthermore, it can be engineered for enhanced grip or flexibility.
5. Scratch Resistance: PU offers robust resistance to scratching, beneficial for applications involving contact with abrasive materials or frequent friction.
6. Lightweight Construction: PU belts are generally lighter than alternatives, simplifying installation and reducing operational resistance.
7. Tensile Strength: Possessing strong tensile and compressive strength, PU belting is well-suited for conveying and transport systems.
8. Quiet Operation: PU belt systems typically operate more quietly than those using other belt materials, contributing to reduced noise levels in production environments.

These properties make PU belting highly suitable for applications in industries such as food processing, automotive manufacturing, and general factory material handling.

Example Products:
Inverter Motor: Speed ratio adjustment (30-40 meters/minute) – Additional cost: 7500 THB

• Conveyor Belt PVC, Dimensions: 500x1000x750 mm
• Speed: 40 m/min, Adjustable Legs: 100 mm
• Total Belt Load Capacity: 3 Kg
• Price: 32,000 THB

• Conveyor Belt PVC, Dimensions: 500x1500x750 mm
• Speed: 40 m/min, Adjustable Legs: 100 mm
• Total Belt Load Capacity: 3 Kg

• Conveyor Belt PU, Stainless Steel Frame, Dimensions: 400x1500x800 mm
• Speed: 8-13 m/min, Adjustable Legs: 100 mm
• Total Belt Load Capacity: 30 Kg

• Conveyor Belt PVC, Aluminum Profile Frame, Dimensions: 300×1500 mm
• Speed: 8-13 m/min, Adjustable Legs
• Total Belt Load Capacity: 20 Kg

• Conveyor Belt PU, Aluminum Profile Frame, Dimensions: 500×4500 mm
• Speed: 8-13 m/min, Adjustable Legs
• Total Belt Load Capacity: 30 Kg

• Conveyor Belt PVC, Aluminum Profile Frame, Dimensions: 300×6000 mm
• Speed: 8-13 m/min, Adjustable Legs
• Total Belt Load Capacity: 30 Kg

• Conveyor Belt PU, Stainless Steel 304 Frame + Stainless Steel 304 Table, Dimensions: 500×3000 mm
• Speed: 3-5 m/min, Adjustable Legs
• Total Belt Load Capacity: 30 Kg

• Conveyor Belt PU, Stainless Steel 304 Frame + Stainless Steel 304 Table, Dimensions: 400×3000 mm
• Speed: 3-5 m/min, Adjustable Legs
• Total Belt Load Capacity: 30 Kg

• Conveyor Belt PU, Stainless Steel 304 Frame, Dimensions: 500×1500 mm
• Speed: 8-13 m/min, Adjustable Legs
• Total Belt Load Capacity: 30 Kg

• Steel Structure Conveyor, Solid Stainless Steel 304
• Speed: 3-5 m/min, Adjustable Legs
• Total Belt Load Capacity: 40 Kg

• Conveyor Belt PVC, Dimensions: 300x1500x750 mm
• Conveyor Belt PVC, Dimensions: 300x1000x750 mm
• Conveyor Belt PVC, Dimensions: 300x1200x300 mm
• Speed: 8-13 m/min
• Weight Capacity: 2-3 Kg

•
• Conveyor Belt PVC, Aluminum Profile Frame, Dimensions: 300×1500 mm
• Speed: 8-13 m/min, Adjustable Legs
• Total Belt Load Capacity: 30 Kg

• Stainless Steel Mesh Conveyor, Stainless Steel 304 Frame, Dimensions: 600×1000 mm
• Speed: 3-5 m/min, Adjustable Legs
• Total Belt Load Capacity: 40 Kg

Speed Specifications for Conveyor Belt PVC

English Specification Summary

Product load capacity on conveyor: approximately 30 kg.

• Standard motor: 120W. Options available: 200W, 400W, 600W.

Comparison of PVC, PU, and Stainless Steel Conveyor Belts

• Materials and Properties
  • PVC (Polyvinyl Chloride)
    ✅ Flexible and offers moderate chemical resistance.
    ✅ More economical than PU and stainless steel.
    ✅ Suitable for general applications such as packaging or conveying materials without oils and fats.
    ❌ Not suitable for high temperatures and may wear faster than PU.
  • PU (Polyurethane)
    ✅ Superior resistance to fats, oils, and chemicals compared to PVC.
    ✅ Smoother surface, ideal for food and pharmaceutical industries.
    ✅ Higher tear resistance and longer service life than PVC.
    ❌ Higher cost than PVC.
  • Stainless Steel
    ✅ High strength, resistant to impact and abrasion.
    ✅ Suitable for industries requiring high hygiene standards, such as food and beverage production.
    ✅ Resistant to high temperatures and chemicals.
    ❌ Higher cost and potentially heavier.
• Recommended Applications
  • PVC → General product transport, e.g., packaging, electronics.
  • PU → Food industry, pharmaceuticals, and applications involving contact with oils or fats.
  • Stainless Steel → Applications demanding high cleanliness or operating in high-temperature or high-humidity environments, such as food and beverage manufacturing, and heavy industries.
