Conveyor Belt Chain
850x2500x800mm
- Speed 2m/min
- Product on conveyor about 500-1000kg

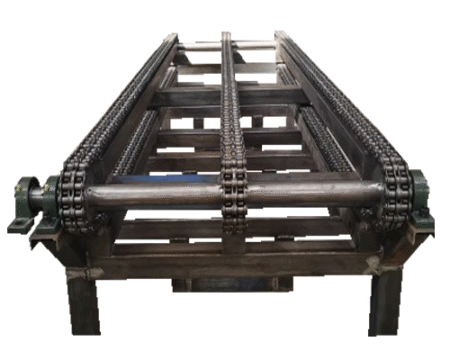

This conveyor belt chain system utilizes industrial chains as the conveying medium, in lieu of traditional rubber or PVC belts. Its operational principle involves sprockets driving chains that traverse a track, facilitating the movement of heavy loads along a defined path.
🔧 Main Structure
-
Frame: Constructed from welded structural steel to ensure robustness and load-bearing capacity.
-
Chain: Employs two or more parallel industrial chains to distribute and support increased weight.
-
Sprocket: Mounted on the drive shaft, these components engage with the chain to facilitate its movement.
-
Bearing: Shaft support bearings are incorporated to minimize rotational friction.
-
Motor (Motor + Gearbox) (Not visible in image): Provides the power to drive the shaft rotation.
⚙️ Conveyor Belt Chain Features
-
High load capacity, suitable for large items such as pallets, steel components, and machinery parts.
-
Durable against impact and less prone to slippage compared to rubber belts.
-
Conveying speed is adjustable via the motor control system.
-
Performs effectively in environments with higher temperatures or debris compared to rubber belts.
📌 Typical Applications
-
Industrial manufacturing production lines.
-
Pallet conveyor systems.
-
Transportation of heavy metallic goods, construction materials, or small containers.
