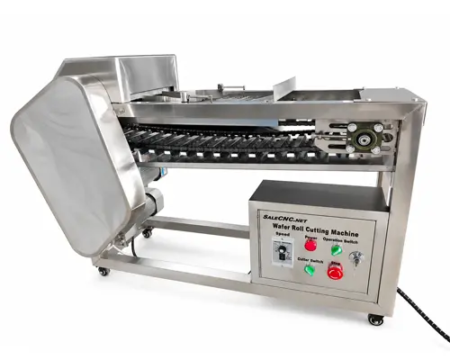

Crispy Rolls Slitting Machine
Operating Videos:
@liner_acutator_fern Automatic crispy roll making machine, 12 dual heads. SaleCNC sells crispy roll making machines, crispy roll ovens, and electric ice cream cone molds, automatic dual head. #automatic_electric_crispy_roll_making_machine ♬ Original audio – Liner Acutator Ltd.
@liner_acutator_fern Automatic crispy roll making machine, 12 heads. SaleCNC sells crispy roll making machines, crispy roll ovens, and electric ice cream cone molds, automatic dual head. (Oven thickness designed as required) #Click_the_link_in_TikTok_profile ♬ Original audio – National Beauty Area
Crispy Rolls Slitting Machine for Sale
- Equipped with a controller for operational management.
- Robust base for continuous operation.
Specification Details:
- Model: FMQ-7
- Power: 0.5 kW
- Size: 75 × 45 × 90 cm
- Voltage: 220V
- Type: Waffle Roll Cutting Machine
Operation of the Crispy Roll Slitting Machine
1) Feeding System
After the crispy rolls exit the rolling machine or upstream production line:
– The crispy rolls are placed on a rail or conveyor belt that feeds them into the cutting head.
– Propulsion ensures a steady forward movement of the crispy rolls.
2) Rotary Cutting Blades
The machine incorporates rotating blade assemblies:
– Blades rotate in synchronization with the feeding cycle.
– Cuts crispy rolls to uniform lengths.
– Cutting length is customizable.
This blade configuration prioritizes:
- High speed
- Clean cuts
- Preservation of product integrity (no crushing or deformation)
General Features of this Crispy Roll Slitting Machine:
Advantages
- Fast and consistent cutting with uniform dimensions.
- Reduces labor requirements.
- Increases production capacity.
- Capable of prolonged continuous operation.
- Ensures standardized product quality.
Machine Materials
- The main body is constructed from 304 Stainless Steel.
- Blades are made of high-hardness stainless steel, ensuring food-grade safety.
Suitable for factories producing:
- Baked or fresh crispy rolls.
- Short-cut crispy rolls.
- Similar rolled snack products.
