Description

Conveyor Belt PVC

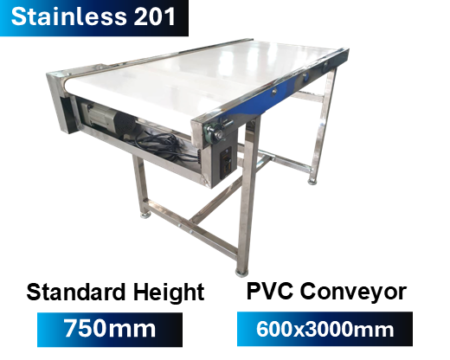

Conveyor Belt PVC with Stainless Steel 201 Frame (Non-Adjustable Legs)

Polyvinylchloride (PVC)

• PVC offers excellent resistance to high temperatures, tensile strength, and puncture resistance.
• PVC exhibits good wear resistance.
• PVC provides superior resistance to oils and odors.
• PVC is robust and resistant to abrasion.

Product Examples:

Motor with Inverter, Speed Ratio 30-40 meters/minute, Additional Cost: 7500 THB

• Conveyor Belt PVC 500x1000x750 mm
• Speed 40 m/min, with adjustable leg mounts (100 mm height adjustment).
• Load Capacity: 3 Kg across the entire belt.
• Price: 32,000 THB

• Conveyor Belt PVC 500x1500x750 mm
• Speed 40 m/min, with adjustable leg mounts (100 mm height adjustment).
• Load Capacity: 3 Kg across the entire belt.

• Conveyor Belt PU with Stainless Steel Frame: 400x1500x800 mm
• Speed 8-13 m/min, with adjustable leg mounts (100 mm height adjustment).
• Load Capacity: 30 Kg across the entire belt.

• Conveyor Belt PVC with Aluminum Profile Frame: 300×1500 mm
• Speed 8-13 m/min, with adjustable legs.
• Load Capacity: 20 Kg across the entire belt.

• Conveyor Belt PU with Aluminum Profile Frame: 500×4500 mm
• Speed 8-13 m/min, with adjustable legs.
• Load Capacity: 30 Kg across the entire belt.

• Conveyor Belt PVC with Aluminum Profile Frame: 300×6000 mm
• Speed 8-13 m/min, with adjustable legs.
• Load Capacity: 30 Kg across the entire belt.

• Conveyor Belt PU with Stainless Steel 304 Frame and Stainless Steel 304 Table: 500×3000 mm
• Speed 3-5 m/min, with adjustable legs.
• Load Capacity: 30 Kg across the entire belt.

• Conveyor Belt PU with Stainless Steel 304 Frame and Stainless Steel 304 Table: 400×3000 mm
• Speed 3-5 m/min, with adjustable legs.
• Load Capacity: 30 Kg across the entire belt.

• Conveyor Belt PU with Stainless Steel 304 Frame: 500×1500 mm
• Speed 8-13 m/min, with adjustable legs.
• Load Capacity: 30 Kg across the entire belt.

• Conveyor with Solid Stainless Steel 304 Structure

• Speed 3-5 m/min, with adjustable legs.
• Load Capacity: 40 Kg across the entire belt.

• Conveyor Belt PVC 300x1500x750 mm
• Conveyor Belt PVC 300x1000x750 mm
• Conveyor Belt PVC 300x1200x300 mm
• Speed 8-13 m/min
• Weight Capacity: 2-3 Kg across the entire belt.

•
• Conveyor Belt PVC with Aluminum Profile Frame: 300×1500 mm
• Speed 8-13 m/min, with adjustable legs.
• Load Capacity: 30 Kg across the entire belt.

• Conveyor Mesh Belt with Stainless Steel 304 Frame: 600×1000 mm
• Speed 3-5 m/min, with adjustable legs.
• Load Capacity: 40 Kg across the entire belt.

Conveyor Belt PVC Speed Specifications

**English Specifications**

**Thai Specifications**

Product Load Capacity on Conveyor: Approximately 30 kg

• Standard motor: 120W. Optional motors available: 200W, 400W, 600W.

Material and Property Differences: PVC, PU, and Stainless Steel Conveyor Belts

1. Materials and Properties

   • PVC (Polyvinyl Chloride)
     ✅ Flexible and offers moderate chemical resistance.
     ✅ More cost-effective than PU and stainless steel.
     ✅ Suitable for general applications such as packaging or transporting materials without oil and grease.
     ❌ Not resistant to high heat and may wear faster than PU.
   • PU (Polyurethane)
     ✅ Superior resistance to fats, oils, and chemicals compared to PVC.
     ✅ Smoother surface, ideal for food and pharmaceutical industries.
     ✅ Higher resistance to tearing and longer service life than PVC.
     ❌ Higher cost than PVC.
   • Stainless Steel
     ✅ High strength, resistant to impact and wear.
     ✅ Suitable for industries requiring high levels of hygiene, such as food and beverage production.
     ✅ Resistant to high temperatures and chemicals.
     ❌ Higher cost and potentially heavier.

2. Suitable Applications

   • PVC → Used in general goods transportation, such as packaging and electronics.
   • PU → Used in the food, pharmaceutical, and other industries where contact with oil or grease is expected.
   • Stainless Steel → Used in applications requiring high cleanliness standards or in environments with high heat or humidity, such as food and beverage manufacturing plants and heavy industrial sectors.
