Description

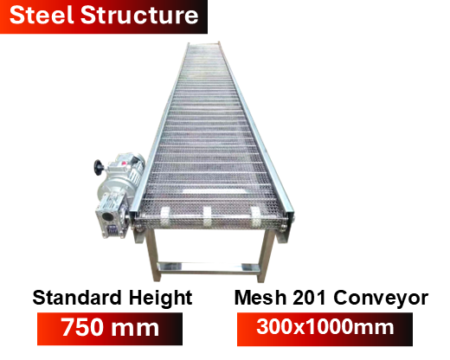

Conveyor Belt System – 201 Mesh

Utilizing a 201 Mesh Stainless Steel conveyor belt, this system is designed for efficient material transport. The frame is constructed from robust steel, featuring fixed height non-adjustable legs.

• Mesh type conveyor belt for moving items.
• Equipped with an electric motor allowing for adjustable flow speed.
• Facilitates easy material handling and transportation; simple to install and operate.
• Standard fixed height: 75 cm.
• Product carrying capacity: Approximately 40 kg on the conveyor.
• Temperature resistance range: -50°C to +200°C.

Mesh Belts are a type of conveyor belt constructed from interconnected wires or fibers forming a mesh pattern. This design promotes airflow and liquid passage, making them ideal for applications requiring ventilation or cooling, as well as material transport across various industrial sectors, particularly in baking or heating processes.

Mesh Belt Features and Applications:

1. Excellent Ventilation: The mesh structure with gaps between wires ensures efficient airflow and heat dissipation.
2. High-Temperature Resistance: Commonly used in baking, drying, and heating processes, such as food dehydration or material curing.
3. Diverse Material Options: Available in various materials including stainless steel, plated steel, or corrosion-resistant alloys.
4. Industrial Applications: Widely employed in the food industry (drying/baking), chemical processing, component manufacturing, and assembly lines requiring air circulation.

Motor and Speed Control Option:

Inverter Motor with speed ratio adjustment: 30-40 meters/minute. Additional cost: 7,500 THB.

• Conveyor Belt PVC: 500x1000x750 mm
• Speed: 40 m/min, with adjustable leg height (100 mm).
• Load Capacity: 3 kg across the entire belt.
• Price: 32,000 THB.

• Conveyor Belt PVC: 500x1500x750 mm
• Speed: 40 m/min, with adjustable leg height (100 mm).
• Load Capacity: 3 kg across the entire belt.

• Conveyor Belt PU, Stainless Steel Frame: 400x1500x800 mm
• Speed: 8-13 m/min, with adjustable leg height (100 mm).
• Load Capacity: 30 kg across the entire belt.

• Conveyor Belt PVC, Aluminum Profile Frame: 300×1500 mm
• Speed: 8-13 m/min, with adjustable legs.
• Load Capacity: 20 kg across the entire belt.

• Conveyor Belt PU, Aluminum Profile Frame: 500×4500 mm
• Speed: 8-13 m/min, with adjustable legs.
• Load Capacity: 30 kg across the entire belt.

• Conveyor Belt PVC, Aluminum Profile Frame: 300×6000 mm
• Speed: 8-13 m/min, with adjustable legs.
• Load Capacity: 30 kg across the entire belt.

• Conveyor Belt PU, Stainless Steel 304 Frame with Stainless Steel 304 Table: 500×3000 mm
• Speed: 3-5 m/min, with adjustable legs.
• Load Capacity: 30 kg across the entire belt.

• Conveyor Belt PU, Stainless Steel 304 Frame with Stainless Steel 304 Table: 400×3000 mm
• Speed: 3-5 m/min, with adjustable legs.
• Load Capacity: 30 kg across the entire belt.

• Conveyor Belt PU, Stainless Steel 304 Frame: 500×1500 mm
• Speed: 8-13 m/min, with adjustable legs.
• Load Capacity: 30 kg across the entire belt.

• Steel Structure Stainless 304 Conveyor Solid Belt

• Speed: 3-5 m/min, with adjustable legs.
• Load Capacity: 40 kg across the entire belt.

• Conveyor Belt PVC: 300x1500x750 mm
• Conveyor Belt PVC: 300x1000x750 mm
• Conveyor Belt PVC: 300x1200x300 mm
• Speed: 8-13 m/min
• Weight Capacity: 2-3 kg across the entire belt.

•
• Conveyor Belt PVC, Aluminum Profile Frame: 300×1500 mm
• Speed: 8-13 m/min, with adjustable legs.
• Load Capacity: 30 kg across the entire belt.

• Conveyor Belt Stainless Steel Mesh 304, Stainless Steel 304 Frame: 600×1000 mm
• Speed: 3-5 m/min, with adjustable legs.
• Load Capacity: 40 kg across the entire belt.

Conveyor Belt Speed Specifications (PVC)

General Specifications (English)

Product Load Capacity: Approximately 30 kg on the conveyor

• Standard motor: 120W. Optional motors available: 200W, 400W, 600W.

Comparison of PVC, PU, and Stainless Steel Conveyor Belts

1. Material and Properties
   • PVC (Polyvinyl Chloride)
     ✅ Flexible and offers moderate chemical resistance.
     ✅ More economical than PU and stainless steel.
     ✅ Suitable for general applications, such as packaging or material transport not involving oils or fats.
     ❌ Not suitable for high temperatures; may wear faster than PU.
   • PU (Polyurethane)
     ✅ Superior resistance to fats, oils, and chemicals compared to PVC.
     ✅ Smoother surface, ideal for food and pharmaceutical industries.
     ✅ Higher tensile strength and longer lifespan than PVC.
     ❌ More expensive than PVC.
   • Stainless Steel
     ✅ High strength, resistant to impact and abrasion.
     ✅ Suitable for industries requiring high hygiene standards, such as food and beverage production.
     ✅ Resistant to high temperatures and chemicals.
     ❌ Higher cost and potentially heavier.
2. Recommended Applications
   • PVC → General goods transport, e.g., packaging, electronics.
   • PU → Food and pharmaceutical industries, applications involving oils or fats.
   • Stainless Steel → High-hygiene applications or environments with high heat or humidity, e.g., food and beverage processing, heavy industrial sectors.
