Back to ConveyorDescription
Conveyor Belt

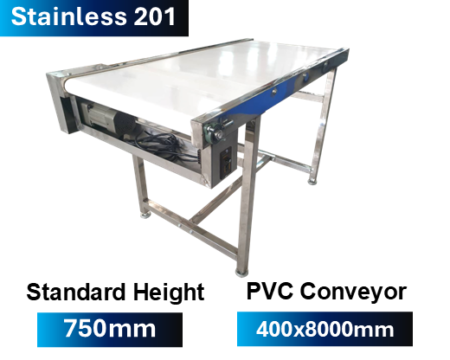

Conveyor Belt – PVC Type
Stainless Steel 201 Frame (Non-Adjustable Legs)
Polyvinylchloride (PVC)
- PVC offers good resistance to high temperatures, tensile strength, and is resistant to cuts and punctures.
- PVC exhibits good wear resistance.
- PVC provides good resistance to oils and is odor-resistant.
- PVC is robust and resistant to abrasion.
Example Products:
Inverter Motor Motor Speed Ratio 30-40 meters/minute. Add 7500 THB
- Conveyor Belt PVC 500x1000x750 mm
- Speed 40 m/min Adjustable Legs 100 mm.
- Load Capacity: 3 Kg. across the entire belt
- Price: 32,000 THB
- Conveyor Belt PVC 500x1500x750 mm
- Speed 40 m/min Adjustable Legs 100 mm.
- Load Capacity: 3 Kg. across the entire belt
- Conveyor Belt PU with Stainless Steel Frame 400x1500x800 mm
- Speed 8-13 m/min Adjustable Legs 100 mm.
- Load Capacity: 30 Kg. across the entire belt
- Conveyor Belt PVC with Aluminum Profile Frame 300×1500 mm
- Speed 8-13 m/min Adjustable Legs
- Load Capacity: 20 Kg. across the entire belt
- Conveyor Belt PU with Aluminum Profile Frame 500×4500 mm
- Speed 8-13 m/min Adjustable Legs
- Load Capacity: 30 Kg. across the entire belt
- Conveyor Belt PVC with Aluminum Profile Frame 300×6000 mm
- Speed 8-13 m/min Adjustable Legs
- Load Capacity: 30 Kg. across the entire belt
- Conveyor Belt PU with Stainless Steel 304 Frame 500×3000 mm + Stainless Steel 304 Table
- Speed 3-5 m/min Adjustable Legs
- Load Capacity: 30 Kg. across the entire belt
- Conveyor Belt PU with Stainless Steel 304 Frame 400×3000 mm + Stainless Steel 304 Table
- Speed 3-5 m/min Adjustable Legs
- Load Capacity: 30 Kg. across the entire belt
- Conveyor Belt PU with Stainless Steel 304 Frame 500×1500 mm
- Speed 8-13 m/min Adjustable Legs
- Load Capacity: 30 Kg. across the entire belt
-
Steel Structure Stainless 304 Conveyor Solid
- Speed 3-5 m/min Adjustable Legs
- Load Capacity: 40 Kg. across the entire belt
- Conveyor Belt PVC 300x1500x750 mm
- Conveyor Belt PVC 300x1000x750 mm
- Conveyor Belt PVC 300x1200x300 mm
- Speed 8-13 m/min
- Weight Capacity: 2-3 Kg.
- Conveyor Belt PVC with Aluminum Profile Frame 300×1500 mm
- Speed 8-13 m/min Adjustable Legs
- Load Capacity: 30 Kg. across the entire belt
- Stainless Steel Mesh Conveyor with Stainless Steel 304 Frame 600×1000 mm
- Speed 3-5 m/min Adjustable Legs
- Load Capacity: 40 Kg. across the entire belt
Conveyor Belt PVC Speed Specifications
**English**
**Thai**
Product on conveyor weighing approximately 30kg
- Standard Motor: 120W. Optional Motors: 200W, 400W, 600W
Differences Between PVC, PU, and Stainless Steel Conveyor Belts
-
Materials and Properties
-
PVC (Polyvinyl Chloride)
✅ Flexible and offers moderate chemical resistance.
✅ More economical than PU and stainless steel.
✅ Suitable for general applications such as packaging or transporting materials without oil or grease.
❌ Not resistant to high temperatures and may wear faster than PU. -
PU (Polyurethane)
✅ Superior resistance to fats, oils, and chemicals compared to PVC.
✅ Smoother surface, ideal for food and pharmaceutical industries.
✅ Higher resistance to tearing and longer lifespan than PVC.
❌ Higher cost than PVC. -
Stainless Steel
✅ High strength, resistant to impact and wear.
✅ Suitable for industries requiring high hygiene standards, such as food and beverage production.
✅ Resistant to high temperatures and chemicals.
❌ High cost and potentially heavier weight.
-
-
Recommended Applications
- PVC → Used in general goods transportation, such as packaging and electronics.
- PU → Used in the food, pharmaceutical industries, and applications involving contact with oil or grease.
- Stainless Steel → Used in applications requiring high hygiene standards or in environments with high heat or humidity, such as food and beverage processing plants, and heavy industrial applications.
