Description

Conveyor Belt PVC/PU

Conveyor Belt (PVC/PU)

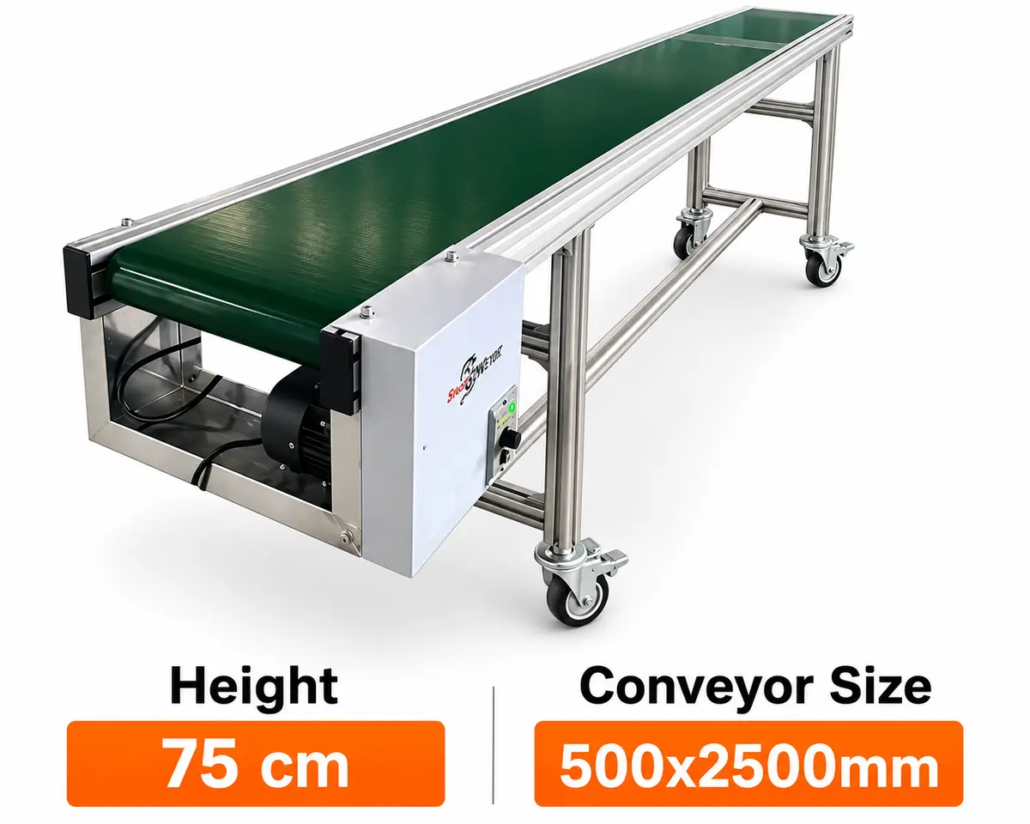

Standard Height (Fixed)

• PVC material conveyor belt for material handling and transportation.
• Equipped with an electric motor, offering adjustable belt speed control.
• Facilitates easy material handling and conveyance, with simple installation and operation.
• Standard machine height: 75 cm (non-adjustable).
• Product capacity on conveyor: approximately 30 kg.

Polyvinylchloride (PVC)

• PVC offers excellent resistance to high temperatures, tensile strength, and superior puncture/tear resistance.
• Exhibits high wear resistance.
• Demonstrates good resistance to oils and is odor-retentive.
• PVC is durable and resistant to abrasion.

Product Examples:

• Conveyor Belt PU with Stainless Steel Frame: 400x1500x800 mm.
• Speed: 8-13 m/min. Adjustable leveling legs (100 mm range).
• Total load capacity: 30 Kg.

• Conveyor with Steel Frame, Belt: PVC; Dimensions: 650×15000 mm.
• Motor: 2.2 KW.
• Speed: 5-10 m/min.
• Adjustable leveling legs.

• Conveyor Belt PVC: 450×2000 mm.
• Adjustable height leveling legs.
• Motor: 120W.
• Speed: 5-10 m/min.
• Adjustable leveling legs.

• Conveyor Belt PU: 600×2500 mm.
• Motor: 200W.
• Speed: 16-25 m/min.
• Adjustable leveling legs + free casters.

Product Examples:

Inverter Motor upgrade: Speed ratio 30-40 meters/minute. Additional cost: 7500 THB.

• Conveyor Belt PVC; Dimensions: 500x1000x750 mm.
• Speed: 40 m/min. Adjustable leveling legs (100 mm range).
• Total load capacity: 3 Kg.
• Price: 32,000 THB.

• Conveyor Belt PVC; Dimensions: 500x1500x750 mm.
• Speed: 40 m/min. Adjustable leveling legs (100 mm range).
• Total load capacity: 3 Kg.

• Conveyor Belt PU with Stainless Steel Frame; Dimensions: 400x1500x800 mm.
• Speed: 8-13 m/min. Adjustable leveling legs (100 mm range).
• Total load capacity: 30 Kg.

• Conveyor Belt PVC with Aluminum Profile Frame; Dimensions: 300×1500 mm.
• Speed: 8-13 m/min. Adjustable leveling legs.
• Total load capacity: 20 Kg.

• Conveyor Belt PU with Aluminum Profile Frame; Dimensions: 500×4500 mm.
• Speed: 8-13 m/min. Adjustable leveling legs.
• Total load capacity: 30 Kg.

• Conveyor Belt PVC with Aluminum Profile Frame; Dimensions: 300×6000 mm.
• Speed: 8-13 m/min. Adjustable leveling legs.
• Total load capacity: 30 Kg.

• Conveyor Belt PU with Stainless Steel 304 Frame + Stainless Steel 304 Table; Dimensions: 500×3000 mm.
• Speed: 3-5 m/min. Adjustable leveling legs.
• Total load capacity: 30 Kg.

• Conveyor Belt PU with Stainless Steel 304 Frame + Stainless Steel 304 Table; Dimensions: 400×3000 mm.
• Speed: 3-5 m/min. Adjustable leveling legs.
• Total load capacity: 30 Kg.

• Conveyor Belt PU with Stainless Steel 304 Frame; Dimensions: 500×1500 mm.
• Speed: 8-13 m/min. Adjustable leveling legs.
• Total load capacity: 30 Kg.

• Steel Structure Stainless 304 Conveyor Solid

• Speed: 3-5 m/min. Adjustable leveling legs.
• Total load capacity: 40 Kg.

• Conveyor Belt PVC; Dimensions: 300x1500x750 mm.
• Conveyor Belt PVC; Dimensions: 300x1000x750 mm.
• Conveyor Belt PVC; Dimensions: 300x1200x300 mm.
• Speed: 8-13 m/min.
• Weight capacity: 2-3 kg.

•
• Conveyor Belt PVC with Aluminum Profile Frame; Dimensions: 300×1500 mm.
• Speed: 8-13 m/min. Adjustable leveling legs.
• Total load capacity: 30 Kg.

• Conveyor with Stainless Steel 304 Mesh Belt and Stainless Steel 304 Frame; Dimensions: 600×1000 mm.
• Speed: 3-5 m/min. Adjustable leveling legs.
• Total load capacity: 40 Kg.

• Steel Structure Stainless 304 Conveyor Solid

• Speed: 3-5 m/min. Adjustable leveling legs.
• Total load capacity: 40 Kg.

Conveyor Belt PVC Speed Specifications

**Standard Configurations**

Product on conveyor: approximately 30 kg.

• Standard motor: 120W. Optional motors available: 200W, 400W, 600W.

**Comparison of Conveyor Belt Materials: PVC, PU, and Stainless Steel**

1. Materials and Properties

   • PVC (Polyvinyl Chloride)
     ✅ Offers moderate flexibility and chemical resistance.
     ✅ More cost-effective than PU and stainless steel.
     ✅ Suitable for general applications such as packaging and transporting materials without oil or grease.
     ❌ Not resistant to high temperatures and may wear faster than PU.

   • PU (Polyurethane)
     ✅ Superior resistance to oils, fats, and chemicals compared to PVC.
     ✅ Smoother surface finish, ideal for food and pharmaceutical industries.
     ✅ Higher resistance to tearing and longer service life than PVC.
     ❌ Higher cost than PVC.

   • Stainless Steel
     ✅ High strength, resistant to impact and wear.
     ✅ Suitable for industries requiring high hygiene standards, such as food and beverage production.
     ✅ Resistant to high temperatures and chemicals.
     ❌ Higher cost and potentially heavier.

2. Recommended Applications

   • PVC → General logistics for products like packaging and electronics.
   • PU → Food and pharmaceutical industries, or applications involving contact with oils or fats.
   • Stainless Steel → Applications demanding high sanitation levels or environments with high heat or humidity, such as food and beverage processing plants, and heavy industrial settings.
