Description

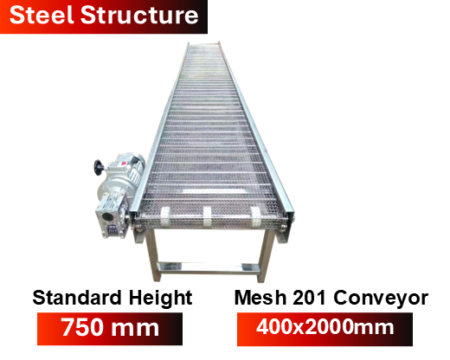

Conveyor Belt 201 Mesh

Steel Structure (Non-adjustable Height)

• Mesh type conveyor belt for material handling and transfer.
• Equipped with an electric motor for adjustable flow speed.
• Facilitates material handling and transportation, with easy installation and operation.
• Standard machine height: 75 cm (non-adjustable).
• Product load capacity on conveyor: approximately 40 kg.
• Temperature resistance: -50 to +200 degrees Celsius.

Mesh Belts are constructed from interconnected wires or fibers forming a mesh pattern, allowing for easy passage of air or liquids. This type of belt is typically used in applications requiring ventilation or cooling, as well as for material transport in various industries, particularly in baking or heating processes.

Mesh Belt Features and Applications:

1. Excellent Ventilation: The mesh structure provides gaps between wires, ensuring efficient airflow and heat dissipation.
2. High Temperature Resistance: Mesh belts are commonly used in applications involving baking or heating, such as food drying or material curing.
3. Diverse Material Options: Mesh belts can be manufactured from various materials, including stainless steel, galvanized steel, or corrosion-resistant alloys.
4. Industrial Applications: Widely utilized in the food industry (drying/baking), chemical processing, component manufacturing, and assembly lines requiring air circulation.

Sample Products:

Inverter Motor Motor Speed Ratio 30-40 m/min. Additional Cost: 7500 THB

• Conveyor Belt PVC 500x1000x750 mm
• Speed 40 m/min, Leg adjusters 100 mm.
• Load capacity: 3 kg. across the entire belt.
• Price: 32,000 THB

• Conveyor Belt PVC 500x1500x750 mm
• Speed 40 m/min, Leg adjusters 100 mm.
• Load capacity: 3 kg. across the entire belt.

• Conveyor Belt PU, Stainless Steel Frame, 400x1500x800 mm
• Speed 8-13 m/min, Leg adjusters 100 mm.
• Load capacity: 30 kg. across the entire belt.

• Conveyor Belt PVC, Aluminum Profile Frame, 300×1500 mm
• Speed 8-13 m/min, Adjustable legs.
• Load capacity: 20 kg. across the entire belt.

• Conveyor Belt PU, Aluminum Profile Frame, 500×4500 mm
• Speed 8-13 m/min, Adjustable legs.
• Load capacity: 30 kg. across the entire belt.

• Conveyor Belt PVC, Aluminum Profile Frame, 300×6000 mm
• Speed 8-13 m/min, Adjustable legs.
• Load capacity: 30 kg. across the entire belt.

• Conveyor Belt PU, Stainless Steel 304 Frame, 500×3000 mm + Stainless Steel 304 Table
• Speed 3-5 m/min, Adjustable legs.
• Load capacity: 30 kg. across the entire belt.

• Conveyor Belt PU, Stainless Steel 304 Frame, 400×3000 mm + Stainless Steel 304 Table
• Speed 3-5 m/min, Adjustable legs.
• Load capacity: 30 kg. across the entire belt.

• Conveyor Belt PU, Stainless Steel 304 Frame, 500×1500 mm
• Speed 8-13 m/min, Adjustable legs.
• Load capacity: 30 kg. across the entire belt.

• Steel Structure Stainless 304 Conveyor Solid

• Speed 3-5 m/min, Adjustable legs.
• Load capacity: 40 kg. across the entire belt.

• Conveyor Belt PVC 300x1500x750 mm
• Conveyor Belt PVC 300x1000x750 mm
• Conveyor Belt PVC 300x1200x300 mm
• Speed 8-13 m/min
• Weight capacity: 2-3 kg.

•
• Conveyor Belt PVC, Aluminum Profile Frame, 300×1500 mm
• Speed 8-13 m/min, Adjustable legs.
• Load capacity: 30 kg. across the entire belt.

• Conveyor Belt Stainless Mesh 304, Stainless Steel 304 Frame, 600×1000 mm
• Speed 3-5 m/min, Adjustable legs.
• Load capacity: 40 kg. across the entire belt.

Conveyor Belt PVC Speed Specifications

**England**

**Thai**

Product on conveyor approximately 30 kg.

• Standard motor: 120W. Optional motors: 200W, 400W, 600W.

Differences between PVC, PU, and Stainless Steel Conveyor Belts

1. Materials and Properties

   • PVC (Polyvinyl Chloride)
     ✅ Flexible and offers moderate chemical resistance.
     ✅ More economical than PU and stainless steel.
     ✅ Suitable for general applications such as packaging or conveying materials free of oil and grease.
     ❌ Not resistant to high temperatures and may wear faster than PU.

   • PU (Polyurethane)
     ✅ Better resistance to grease, oil, and chemicals compared to PVC.
     ✅ Smoother surface, ideal for food and pharmaceutical industries.
     ✅ More resistant to tearing and has a longer service life than PVC.
     ❌ Higher cost than PVC.

   • Stainless Steel
     ✅ High strength, resistant to impact and abrasion.
     ✅ Suitable for industries requiring high hygiene standards, such as food and beverage production.
     ✅ Resistant to high temperatures and chemicals.
     ❌ High cost and potentially heavier.

2. Suitable Applications

   • PVC → Used for general cargo transport, e.g., packaging, electronics.
   • PU → Used in food, pharmaceutical industries, and applications involving contact with oil or grease.
   • Stainless Steel → Used in applications requiring high cleanliness or in environments with high heat or humidity, such as food and beverage processing plants and heavy industries.
