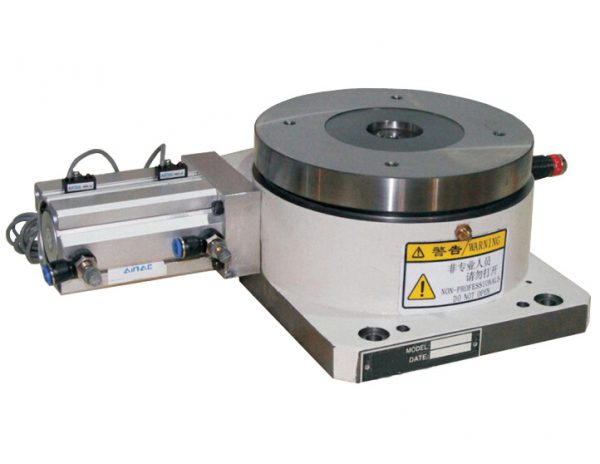

CNC Rotary Device 4th Axis HSD-180DT
Features:
- Utilizes a mechanical transmission structure.
- Incorporates a flat three-point buffering system.
- Equipped with high-quality Japan NSK internal bearings for the complete unit.
- Integrated waterproof functionality.
- Enhanced series products offer versatile vertical and horizontal operation.
Please specify your required 4/6/8 equidistant model in the “Add comments” section during your order.
Note: The rotating discs are supplied with standard mounting holes, which can also be customized. To prevent interference with the integrated bearings and waterproof ring at the bottom of the rotating disk during custom installations, a safe range has been defined: the overall diameter must not exceed φZ.
Note: The rotating discs are equipped with standard mounting holes, which can also be customized. Due to the presence of bearings and a waterproof ring at the bottom of the rotating disk, to avoid interference with user-installed holes, a safe operational range has been identified: the overall diameter must not exceed 160mm, with M8 mounting holes of 15mm depth.
