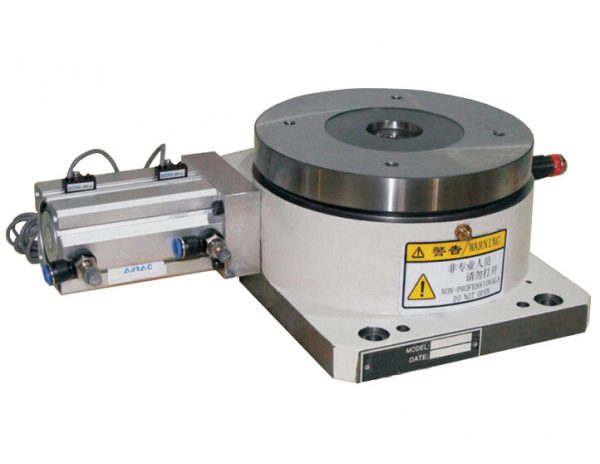

Product Offering: CNC Rotary Device, 4th Axis, Model HSD-320DT
Key Features:
- Robust mechanical transmission structure.
- Integrated flat three-point buffering system.
- Utilizes high-quality Japan NSK internal bearings for enhanced performance and longevity.
- Built-in waterproof functionality for operation in demanding environments.
- Enhanced series offers versatile vertical and horizontal mounting capabilities.
Important Ordering Note: When placing your order, please specify your required model from the following options in the “Add comments” section: 4, 6, 8, 10, 12, 14, 16, or 20-30 equants.
Dimensional Considerations: The standard rotating discs are equipped with mounting holes. Customization is possible; however, please note that the presence of internal bearings and a waterproof sealing ring at the base of the rotating disc requires careful consideration to avoid interference. We have identified a safe operational range for custom installations: the overall diameter must not exceed φZ.
Application Guidance: The rotating discs feature standard mounting interfaces, which can be adapted for custom configurations. To ensure optimal performance and prevent interference with the integrated bearings and waterproof sealing ring at the base of the rotating disc, custom installation holes must adhere to the following limitations: the overall diameter must not exceed 290mm, with a maximum depth of 15mm for M10 fixation.
