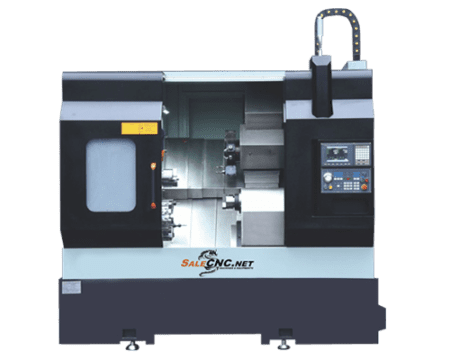

CNC Lathe Turning Fully
Model BYNC46ST-Y-SDT
Specification for CNC Lathe Turning Fully Model BYNC46ST-Y-SDT
| Model Number: CK46ST-YSDT |
Technical parameters | Accuracy Testing | Basic configuration |
| Control System | Absolute value of ten-axis bus | Taiwan’s new generation of 22TB dual channel | |
| X1/Z1 Axis Stroke | X Axis 520mm / Z Axis 420mm | Repeated Positioning <0.003 | X/Z Axis New Generation Servo Motor from Taiwan |
| X2/Z2 Axis Travel | X Axis 520mm / Z Axis 420mm | Repeated Positioning <0.003 | X/Z Axis New Generation Servo Motor from Taiwan |
| X/Z Axis Speed | 24-28m/min | Repeated Positioning <0.004 | |
| X1/Z1 Axis Screw | 32-10 | Class C3 Accuracy | X1/Z1 Axis Silver or Silver Taiwan |
| X2/Z2 Shaft Screw | 32-10 | Class C3 Accuracy | X2/21 Axis Taiwan Silver or Yintai |
| X1/Z1 Axis Linear Guide | Z1 Axis L35 / X1 Axis L35 | P-Level Accuracy (Roller) | X1/Z1 Axis Silver or Silver Taiwan |
| X2/2Z-Axis Linear Guide | Z2 Axis L35 / X2 Axis L35 | P-Level Accuracy (Roller) | X2/Z2 Axis Silver or Silver Taiwan |
| First Spindle | A2-5 | Spindle Runout <0.005 | C1 Motor Spindle Taiwan New Generation Servo Driver |
| Second Spindle | A2-4 | Spindle Runout <0.005 | C2 Motor Spindle Taiwan New Generation Servo Drive |
| Maximum Spindle Speed | 4000 R/min | Rotation Speed <1 | |
| First Spindle Maximum Rotating Diameter |
500mm | Rotation Speed <1 | |
| First Spindle Maximum Rotating Diameter |
500mm | +-10 |
|
| First Spindle Maximum Rotating Diameter |
500mm | +-20 | |
| First Spindle Maximum Rotating Diameter |
45mm | <46 | |
| First Spindle Maximum Rotating Diameter |
35mm | <36 | |
| Bed Structure | 45 | +-1 | Conjoined Castings H300 |
| First Tool Holder Form | Y70-12 Station Servo Power Tower | Power Shaft Runout 《0.0055 | A Power Shaft Taiwan New Generation Servo Motor |
| Tool Change <0.003 | D1 Rotating Axis Taiwan New Generation Servo Motor | ||
| Y-Axis Hard Rail/Stroke | 80mm | Repeated Positioning <0.003 | Y Taiwan New Generation Servo Motor |
| Second Tool Holder Form | 12 Station Servo Tower | Tool Change <0.003 | D2 Rotating Axis Taiwan New Generation Servo Motor |
| Kerb Weight | 6000KG | ||
| Total Power/Actual Power | 33/6kw | +-1/+-0.5 | |
| Overall Dimensions | 2600*1900*2800mm |
Can be equipped with functional accessories: 1. Simple automatic loading and unloading 2. Row frame robot 3. High-pressure water pump
Optional accessories: 1. Chucks and all kinds of clamps 2. Oil bath automatic feeder 3. All kinds of tool holders 4. Hydraulic chuck
